Model
Bosch HDIP056U/04
Dual-Fuel Range
Parts Sections (8)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
HDIP056U/04Dual-Fuel Range
8 diagrams130 parts
Parts Sections (8)
Diagram

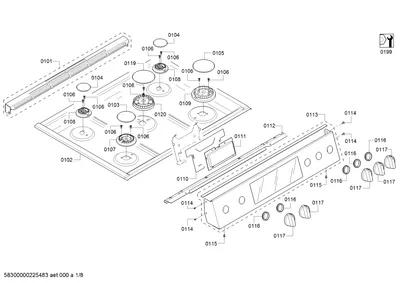

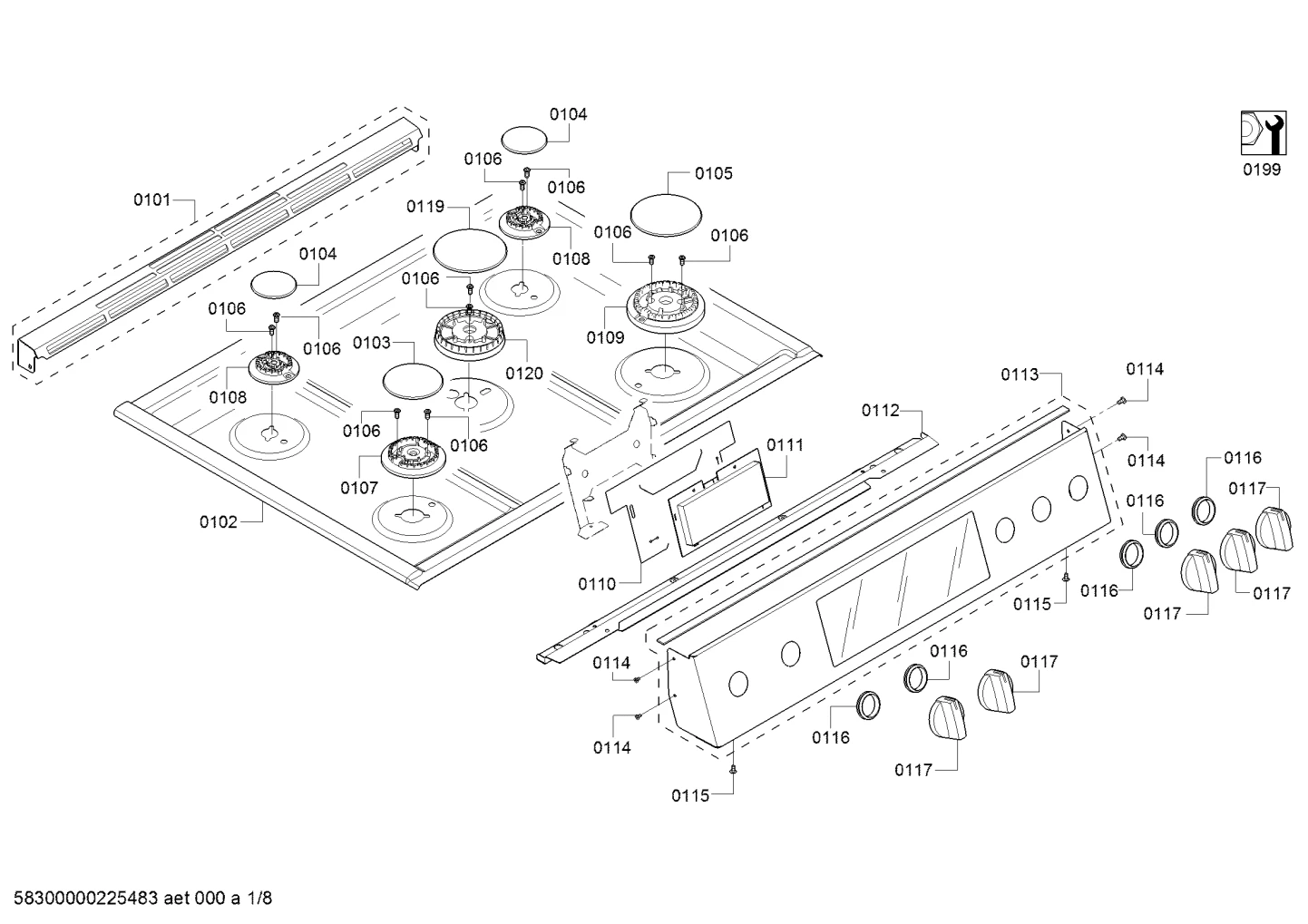

burnercaps rings, Screws (0101-0199)
Parts in burnercaps rings, Screws (0101-0199)
22 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | Trimplate | - |
| 0102 |  | Hob top | - |
| 0103 |  | Burner cap | $32.50 Parts Dr |
| 0104 |  | Burner cap | $25.95 Part Advantage |
| 0105 |  | Burner cap | $28.46 Part Advantage |
| 0106 |  | Screw | $18.41 Part Advantage |
| 0107 |  | Burner | $18.41 Part Advantage |
| 0108 |  | Burner | $9.78 RepairClinic |
| 0109 |  | Burner | $49.51 Parts Dr |
| 0110 |  | Sheet | - |
| 0111 |  | Display module | $173.19 Part Advantage |
| 0112 |  | Trimplate | - |
| 0113 |  | Front panel | $236.42 ApplianceParts Pro |
| 0114 |  | Screw | $18.43 ApplianceParts Pro |
| 0115 |  | Screw | - |
| 0116 |  | Ring | $23.44 Part Advantage |
| 0117 |  | Knob-cooking area | $57.14 Parts Dr |
| 0119 |  | Burner cap | $56.83 Parts Dr |
| 0120 |  | Burner | $77.53 Parts Dr |
| 0150 |  | Screw | - |
| 0199 |  | Trimplate | - |
| 0199 |  | Trimplate | - |
