Model
Bosch HDS355U/01
Dual-Fuel Range
Parts Sections (8)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
HDS355U/01Dual-Fuel Range
8 diagrams105 parts
Parts Sections (8)
Diagram

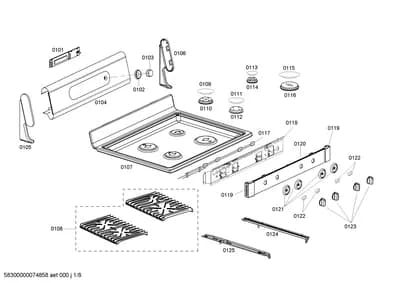

burnercaps rings, othergasparts (0101-0153)
Parts in burnercaps rings, othergasparts (0101-0153)
29 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | PC board | - |
| 0102 |  | Ring | - |
| 0103 |  | Knob-programme | $7.54 ApplianceParts Pro |
| 0104 | | 00143746NLA Housing part | Discontinued |
| 0105 |  | Cap | $36.25 ApplianceParts Pro |
| 0106 |  | Cap | - |
| 0107 | | Hob top | - |
| 0108 | | Grid | - |
| 0109 | | 00423443NLA Burner cap | Discontinued |
| 0110 |  | Burner housing | $49.59 Parts Dr |
| 0111 |  | Burner cap | - |
| 0112 |  | Burner housing | $38.93 Part Advantage |
| 0113 | | Burner cap | - |
| 0114 |  | Burner housing | $25.30 RepairClinic |
| 0115 | | Burner cap | - |
| 0116 | | 00423449NLA Burner housing | Discontinued |
| 0117 |  | Cable harness | $277.95 ApplianceParts Pro |
| 0118 | | Panel | - |
| 0119 |  | Frame-decor | $29.95 ApplianceParts Pro |
| 0120 | | Panel | - |
| 0121 |  | 00423518NLA Ring | Discontinued |
| 0122 |  | Spring | $15.59 Parts Dr |
| 0123 |  | 00424491NLA Knob | Discontinued |
| 0124 | | Bracket | - |
| 0125 | | Bracket | - |
| 0150 | | Cable harness | - |
| 0151 | | Cable harness | $277.95 ApplianceParts Pro |
| 0152 | | Cable harness | - |
| 0153 | | Cable | - |
