Model
Bosch HDS8645U/01
Dual-Fuel Range
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
HDS8645U/01Dual-Fuel Range
5 diagrams164 parts

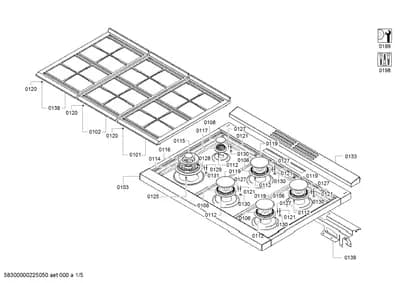

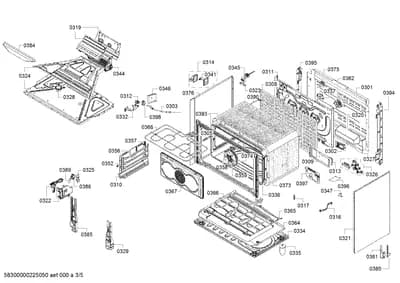

Parts Sections (5)
Diagram

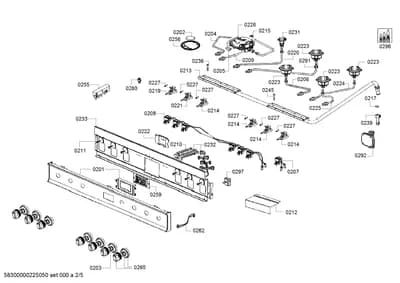

othergasparts, Screws (0201-0297)
Parts in othergasparts, Screws (0201-0297)
49 parts

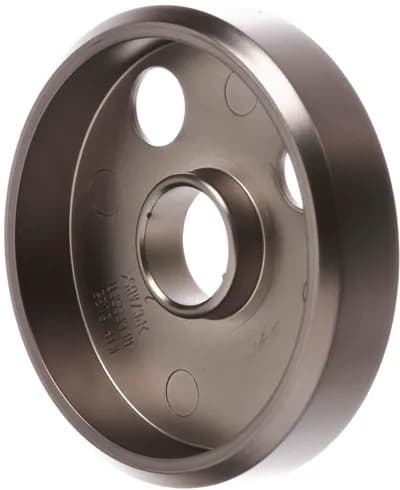

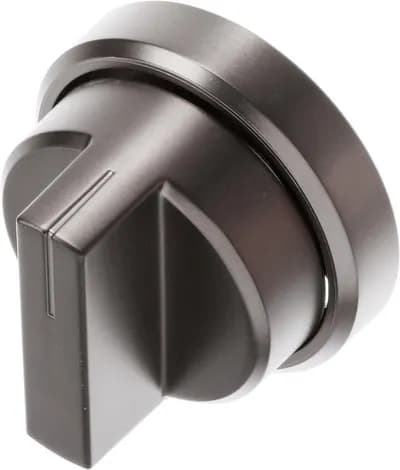

| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0201 |  | Panel-facia | - |
| 0202 |  | Plate | - |
| 0203 |  | Spring | $9.45 ApplianceParts Pro |
| 0204 |  | Burner pipe | - |
| 0205 |  | Sealing | - |
| 0206 |  | Burner pipe | - |
| 0207 |  | Switch-element | $36.88 ApplianceParts Pro |
| 0208 |  | Switches group | $106.36 PartSelect |
| 0209 |  | Burner pipe | - |
| 0210 |  | Switch-selector | $100.67 Parts Dr |
| 0211 |  | Screw | - |
| 0212 |  | Holder | - |
| 0213 |  | Collector | $63.85 ApplianceParts Pro |
| 0214 |  | Gas tap | $108.13 ApplianceParts Pro |
| 0215 |  | Spring | - |
| 0217 |  | Sealing | - |
| 0219 |  | Gas tap | $285.08 Parts Dr |
| 0220 |  | Burner pipe | - |
| 0221 |  | Gas tap | $70.76 ApplianceParts Pro |
| 0222 |  | Holder | $6.16 ApplianceParts Pro |
| 0223 |  | Burner housing | $14.63 ApplianceParts Pro |
| 0224 |  | Burner pipe | - |
| 0225 |  | Burner pipe | $9.23 ApplianceParts Pro |
| 0226 |  | Burner housing | $132.67 ApplianceParts Pro |
| 0227 |  | 00419045NLA Electro magnet | Discontinued |
| 0231 |  | Burner housing | $10.44 ApplianceParts Pro |
| 0232 | | 12033438NLA Switches group | Discontinued |
| 0232 |  | Cable harness | $332.53 ApplianceParts Pro |
| 0233 |  | Support | - |
| 0236 |  | Screw | - |
| 0239 |  | Regulator | $216.00 Parts Dr |
| 0240 |  | Ring | - |
| 0245 | | Screw | - |
| 0255 |  | Transformer-ignition | $87.61 ApplianceParts Pro |
| 0256 |  | Sealing | - |
| 0259 |  | Time selector | $474.75 ApplianceParts Pro |
| 0260 |  | Knob-cooking area | - |
| 0262 |  | Flat cable | $168.70 ApplianceParts Pro |
| 0262 | | Flat cable | $168.70 ApplianceParts Pro |
| 0280 |  | Clamp | - |
| 0291 |  | Burner pipe | - |
| 0292 | | Regulator | $216.00 Parts Dr |
| 0296 |  | Nozzle set liquid gas | $87.78 RepairClinic |
| 0296 |  | Nozzle set liquid gas | - |
| 0296 |  | Nozzle set natural gas | - |
| 0296 |  | Nozzle set natural gas | - |
| 0296 |  | Nozzle set liquid gas | $89.69 Parts Dr |
| 0296 |  | Nozzle set natural gas | - |
| 0297 |  | Potentiometer | $44.95 ApplianceParts Pro |
