Model
Bosch HEI7032U/03
Electric Range
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
HEI7032U/03Electric Range
4 diagrams71 parts
Parts Sections (4)
Diagram

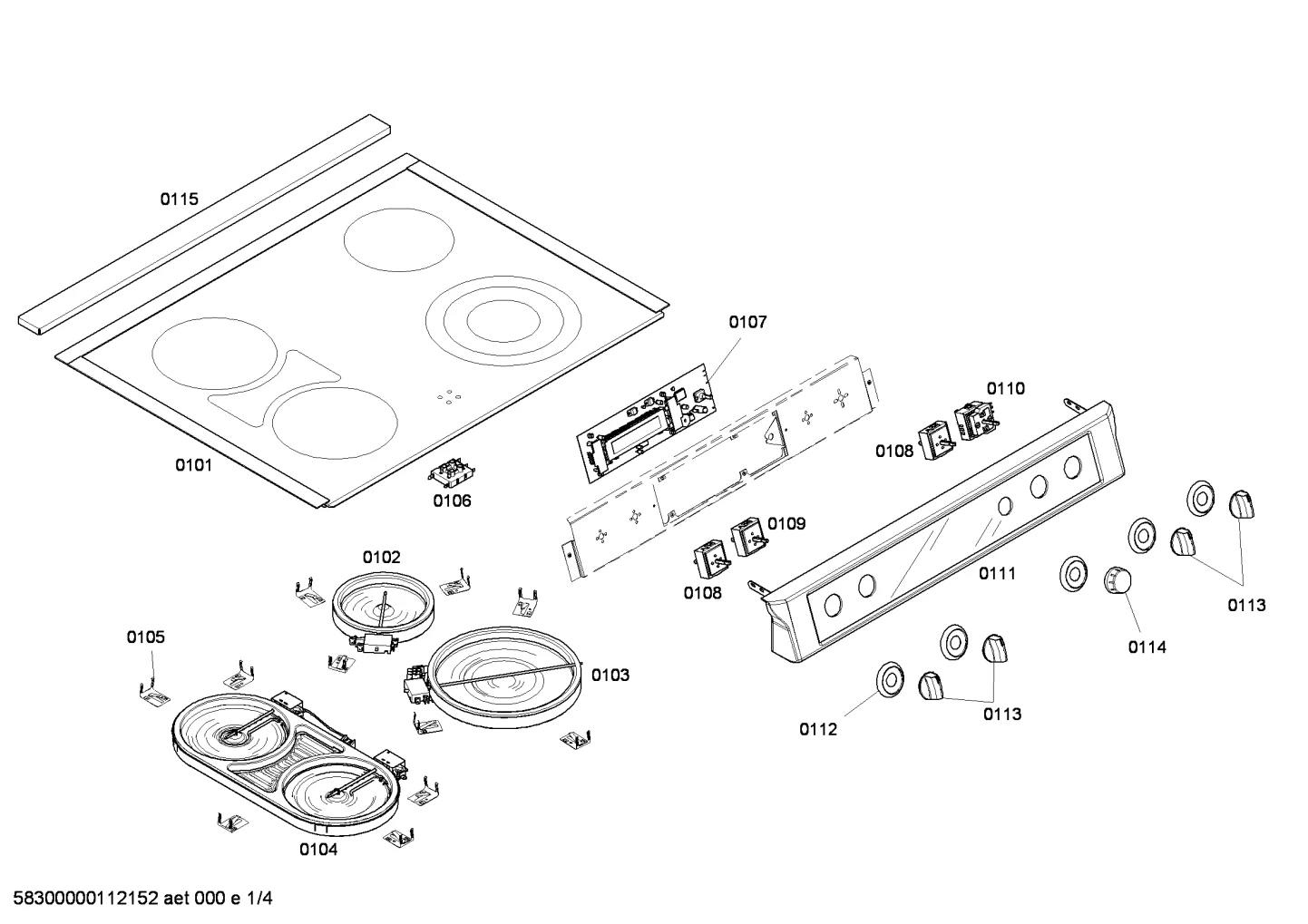

heatingparts, hobtops (0101-0159)
Parts in heatingparts, hobtops (0101-0159)
23 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | Hob top | - |
| 0102 | | Heating element | - |
| 0103 |  | Heating element | - |
| 0104 |  | Heating element | - |
| 0105 |  | Spring | - |
| 0106 |  | Lamp | - |
| 0107 |  | 00653424NLA Display module | Discontinued |
| 0108 | | Energy regulator | - |
| 0109 |  | Switch | $36.06 Part Advantage |
| 0110 |  | Switch | $94.67 Parts Dr |
| 0111 | | Glass panel | $390.30 ApplianceParts Pro |
| 0112 |  | Ring | $42.59 ApplianceParts Pro |
| 0113 | | Knob | - |
| 0114 |  | Knob-programme | - |
| 0115 |  | Trimplate | - |
| 0150 |  | Sealing strip | $58.42 PartSelect |
| 0151 | | Cable harness | - |
| 0152 | | Cable harness | - |
| 0153 | | Cable harness | $90.95 ApplianceParts Pro |
| 0154 | | Cable harness | - |
| 0155 | | Cable harness | - |
| 0156 | | Cable harness | - |
| 0159 |  | Filter | $50.72 ApplianceParts Pro |
