Model
Bosch HEI7282U/05
Electric Range
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
HEI7282U/05Electric Range
6 diagrams109 parts
Parts Sections (6)
Diagram

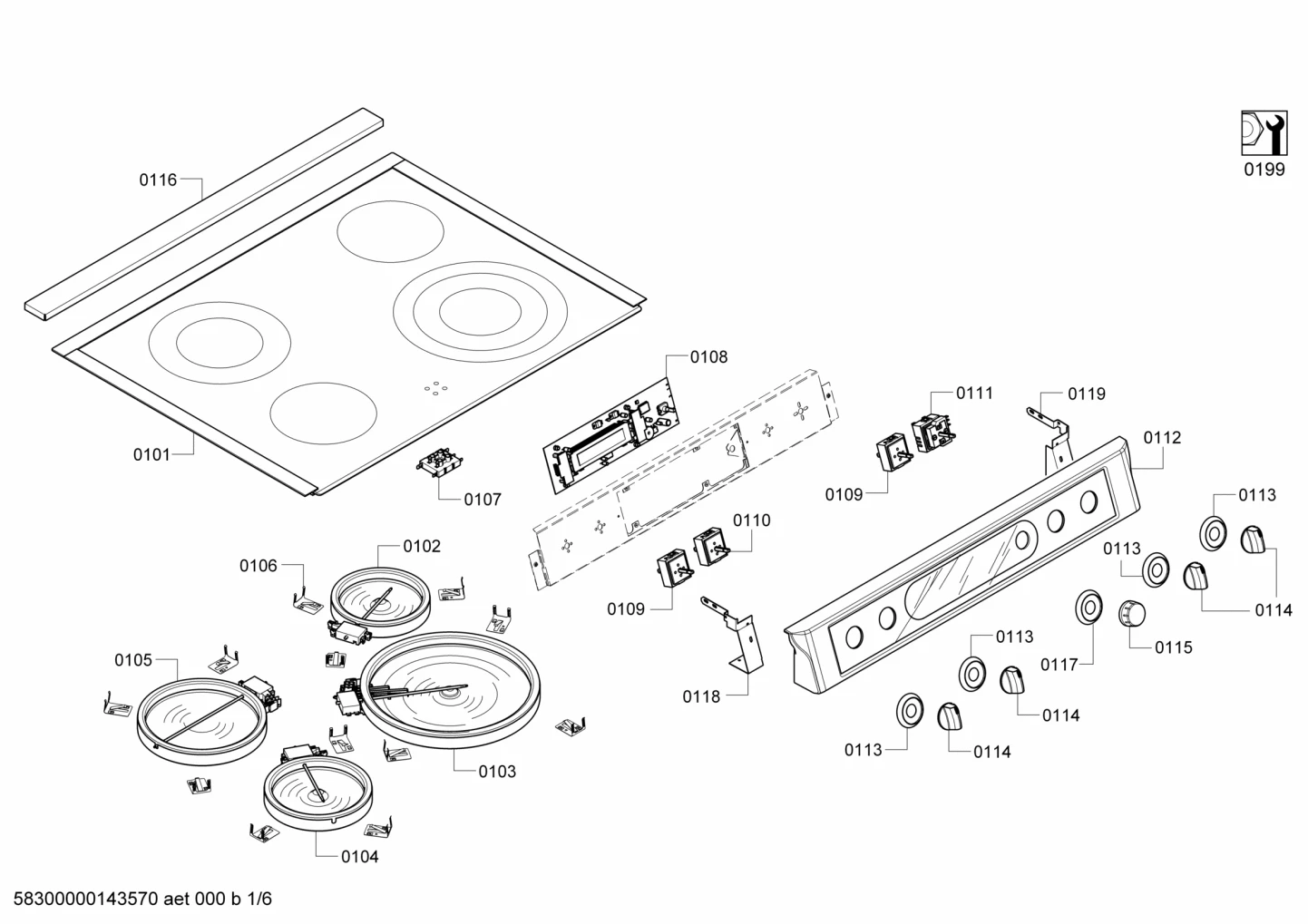

heatingparts, Handles & Knobs (0101-0199)
Parts in heatingparts, Handles & Knobs (0101-0199)
26 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | 00243962NLA Hob top | Discontinued |
| 0102 |  | Heating element | - |
| 0103 | | Heating element | - |
| 0104 | | Heating element | - |
| 0105 |  | Heating element | - |
| 0106 |  | Spring | - |
| 0107 |  | Lamp | - |
| 0108 |  | 00653424NLA Display module | Discontinued |
| 0109 | | 00629053NLA Energy regulator | Discontinued |
| 0110 |  | Switch | $36.06 Part Advantage |
| 0111 |  | Switch | $94.67 Parts Dr |
| 0112 |  | Glass front panel | - |
| 0113 |  | Grommet | $7.53 Part Advantage |
| 0114 | | 00603902NLA Knob | Discontinued |
| 0115 |  | Knob-oven | $56.31 Parts Dr |
| 0116 |  | Trimplate | - |
| 0117 |  | Ring | $42.59 ApplianceParts Pro |
| 0118 | | Bracket | - |
| 0119 | | Bracket | - |
| 0150 |  | Cable harness set | $122.69 Parts Dr |
| 0151 | | Cable harness | - |
| 0152 | | Cable harness | - |
| 0153 |  | Screw | $23.02 Part Advantage |
| 0154 |  | Sealing strip | $58.42 PartSelect |
| 0161 |  | Filter | $50.72 ApplianceParts Pro |
| 0199 | | Part not included in this appliance | - |
