Model
Bosch HEI8046U/01
Electric Range
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
HEI8046U/01Electric Range
7 diagrams100 parts

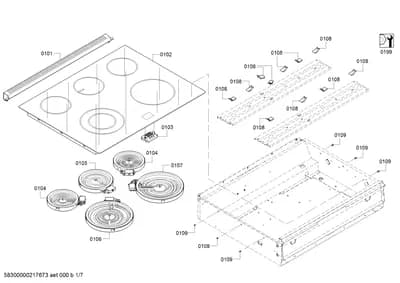

Parts Sections (7)
Diagram

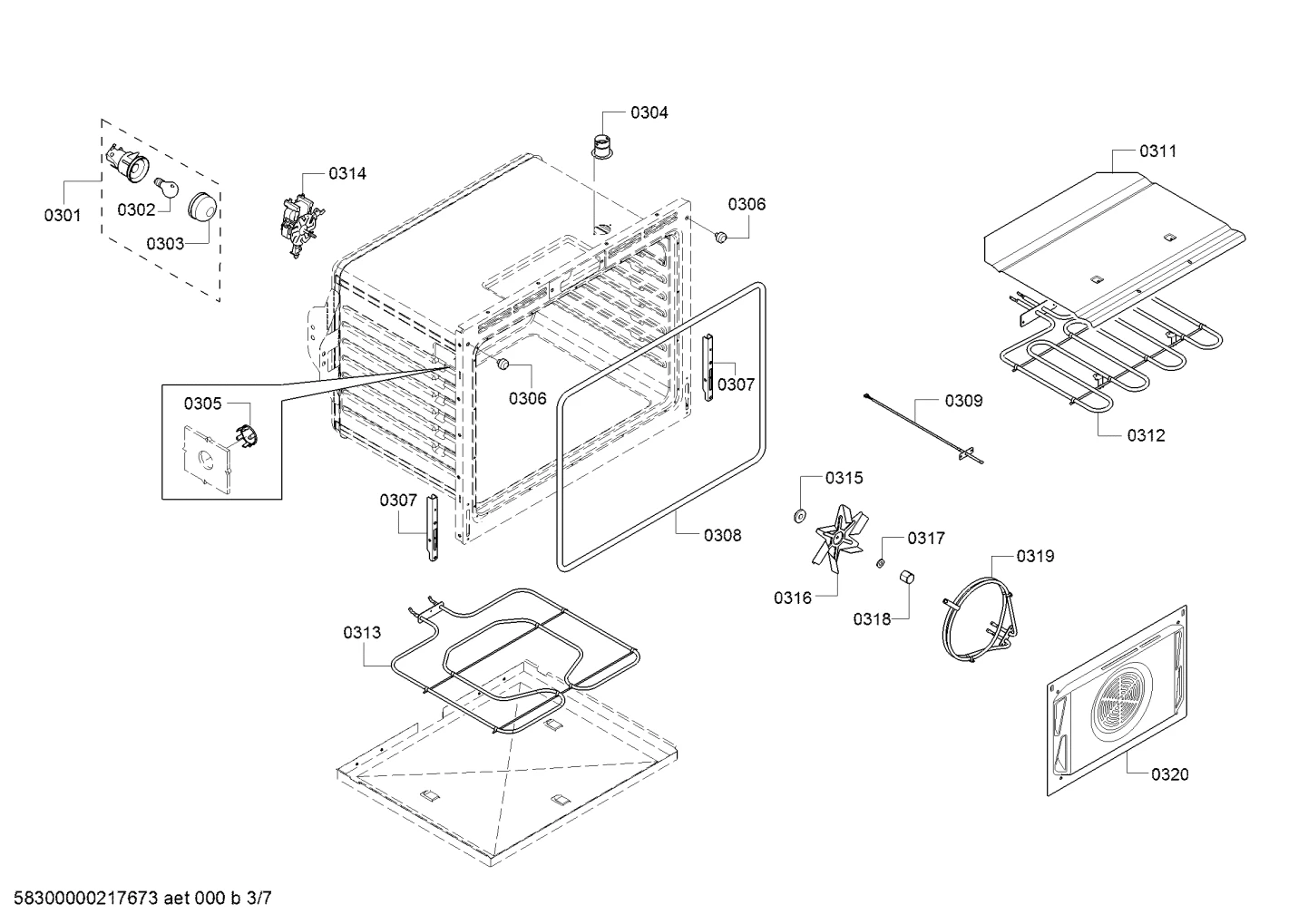

heatingparts, Lighting (0301-0352)
Parts in heatingparts, Lighting (0301-0352)
21 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0301 |  | Lamp | $83.80 Parts Dr |
| 0302 |  | Lamp | $4.19 Part Advantage |
| 0303 |  | Lens | $17.58 Part Advantage |
| 0304 |  | Catalyzer | $45.62 Part Advantage |
| 0305 |  | Plug | $17.73 Parts Dr |
| 0306 |  | Spacer | $27.41 Parts Dr |
| 0307 |  | Hinge holder | - |
| 0308 |  | Seal-door | $30.48 RepairClinic |
| 0309 |  | Sensor | $36.41 Part Advantage |
| 0311 | | Reflector | - |
| 0312 | | Heating element | $87.77 Part Advantage |
| 0313 |  | Heating element | $76.18 Part Advantage |
| 0314 |  | Motor | $109.11 Part Advantage |
| 0315 | | Spacer | $28.81 ApplianceParts Pro |
| 0316 |  | Fan blade | $33.06 Parts Dr |
| 0317 |  | Washer | - |
| 0318 |  | Nut | $8.35 ApplianceParts Pro |
| 0319 |  | Heating element | $68.05 Parts Dr |
| 0320 |  | Air duct | $67.91 ApplianceParts Pro |
| 0351 |  | Screw | - |
| 0352 |  | Screw | - |
