Model
Bosch HEI8056U/01
Electric Range
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
HEI8056U/01Electric Range
7 diagrams100 parts
Parts Sections (7)
Diagram

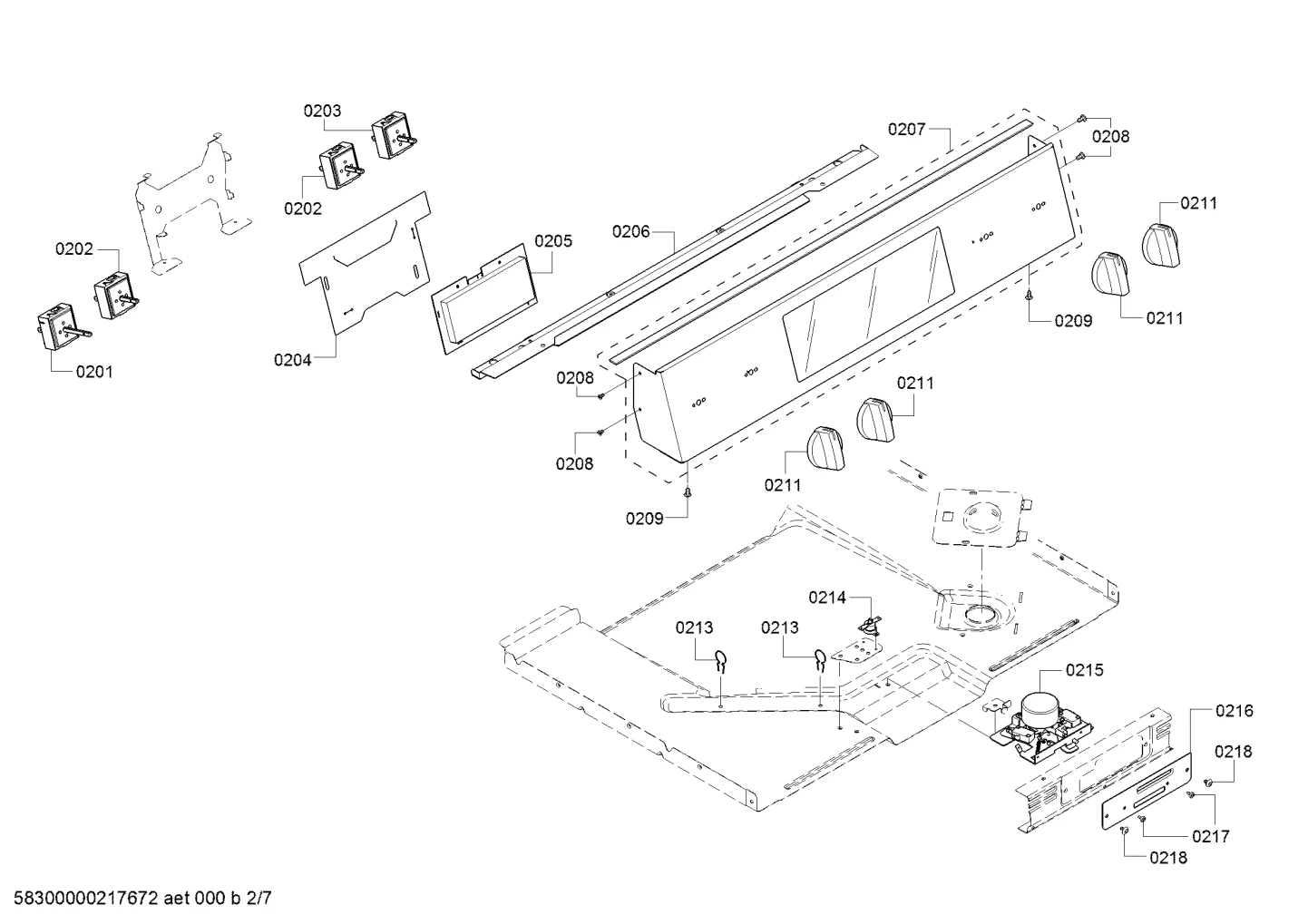

Screws, Switches (0201-0270)
Parts in Screws, Switches (0201-0270)
32 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|

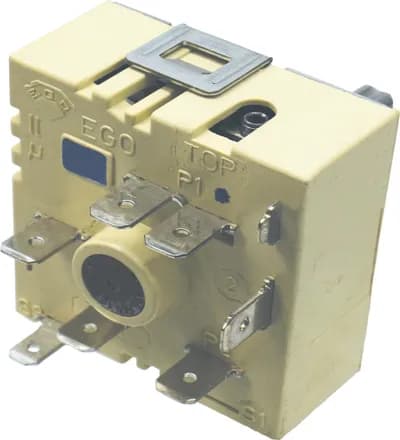

| 0201 |  | Switch | $36.06 Part Advantage |
| 0202 |  | Energy regulator | $38.50 Part Advantage |
| 0203 |  | Switch | $50.09 Part Advantage |
| 0204 |  | Sheet | - |
| 0205 |  | Display module | $173.19 Part Advantage |
| 0206 |  | Trimplate | - |
| 0207 |  | Front panel | $229.61 ApplianceParts Pro |

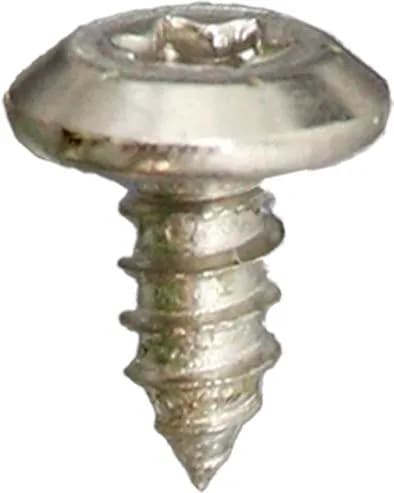

| 0208 |  | Screw | $18.43 ApplianceParts Pro |
| 0209 |  | Screw | - |
| 0210 |  | Grommet | $7.53 Part Advantage |
| 0211 |  | Knob-cooking area | $40.77 Parts Dr |
| 0213 |  | Clip | - |

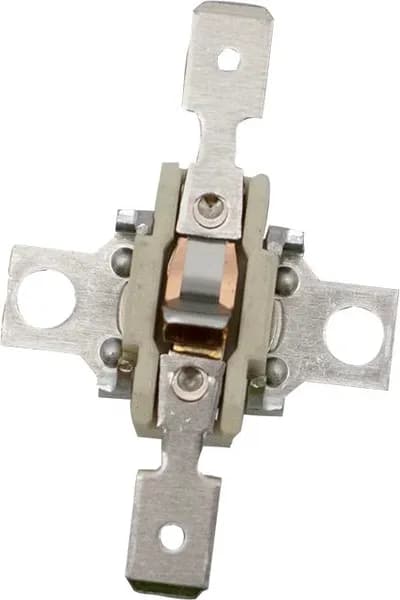

| 0214 |  | Limiter-temperature | $34.32 Part Advantage |

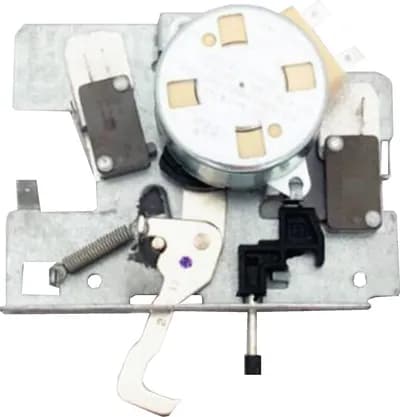

| 0215 |  | Latch | $58.79 Part Advantage |
| 0216 |  | Plate | - |
| 0217 |  | Screw | $22.32 ApplianceParts Pro |
| 0218 |  | Screw | - |

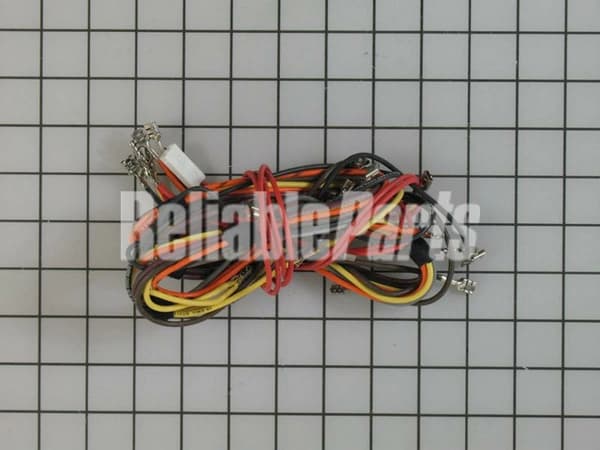

| 0250 |  | Cable harness | $16.75 Parts Dr |
| 0251 | | Cable harness | - |
| 0252 |  | Cable harness | - |
| 0253 |  | Cable harness | $52.81 ApplianceParts Pro |
| 0254 |  | Cable harness | - |
| 0255 | | Cable harness | - |
| 0256 |  | Cable harness | - |
| 0257 |  | Cable harness | $56.70 Part Advantage |
| 0258 |  | Cable harness | $43.58 ApplianceParts Pro |
| 0259 |  | Cable harness | - |
| 0260 |  | Cable harness | $43.59 Parts Dr |
| 0261 |  | Cable harness | $48.56 Parts Dr |
| 0262 | | Wire end sleeve | - |
| 0263 |  | Wire | - |
| 0270 | | Screw | - |
