Model
Bosch HEIP056U/02
Electric Range
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
HEIP056U/02Electric Range
7 diagrams102 parts
Parts Sections (7)
Diagram
Door & Housing, Fan Parts (0401-0412)
Parts in Door & Housing, Fan Parts (0401-0412)
11 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0401 |  | Cover | - |
| 0402 |  | Cover | - |
| 0403 |  | Terminal box | $25.53 Part Advantage |

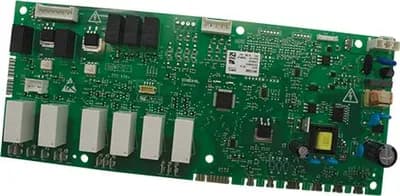

| 0404 |  | Control module | $244.07 Part Advantage |
| 0405 | | Spacer | $22.97 Parts Dr |
| 0406 |  | Fan | $163.52 Part Advantage |
| 0408 | | Panel-base | - |
| 0409 |  | Panel side | - |
| 0410 |  | Leveling Leg | $23.02 Part Advantage |
| 0411 |  | Panel side | $54.24 PartSelect |
| 0412 | | Cover-fan | $127.47 Part Advantage |
