Model
Bosch HES3023U/07
Electric Range
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
HES3023U/07Electric Range
4 diagrams90 parts
Parts Sections (4)
Diagram

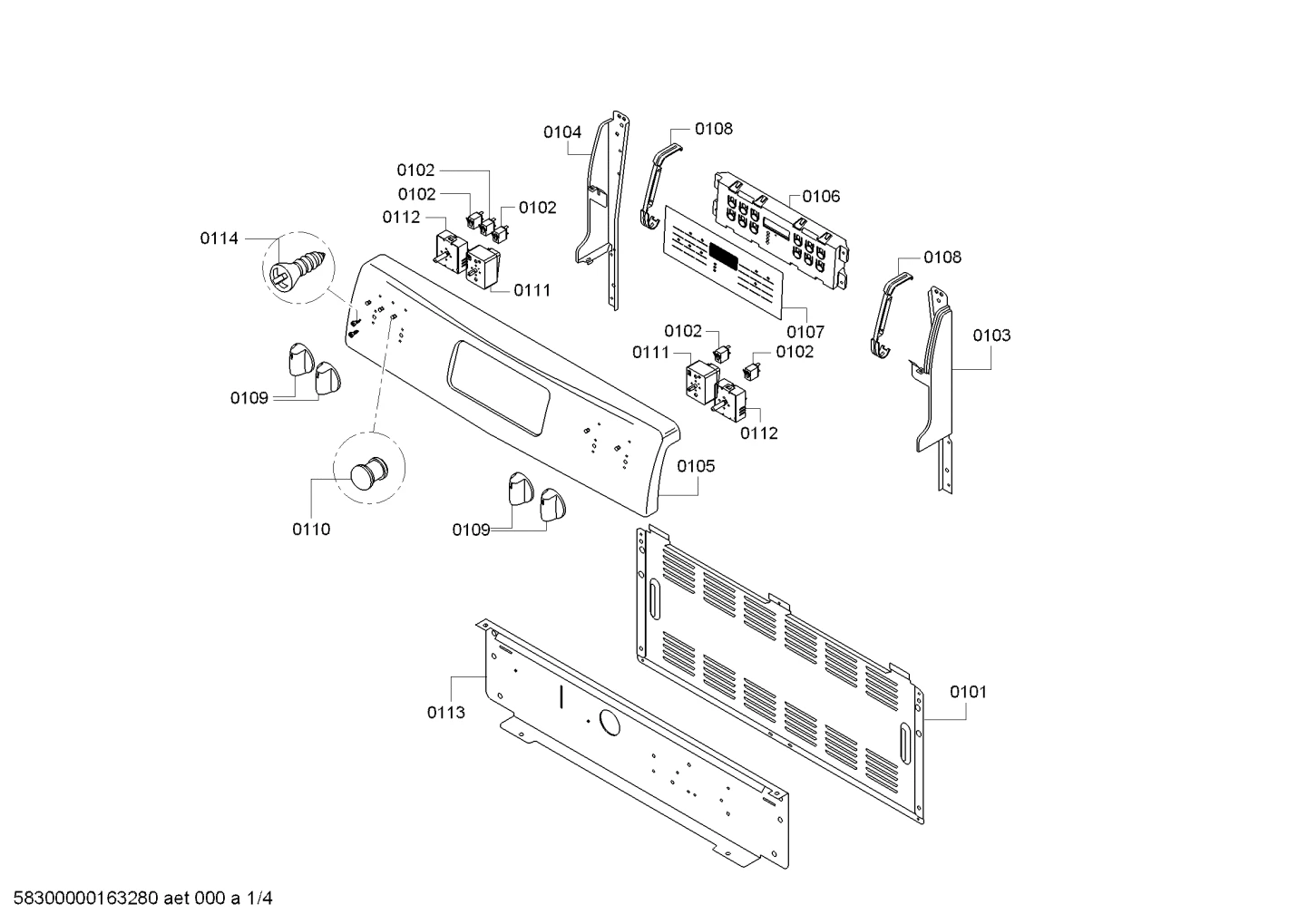

Door & Housing, Switches (0101-0114)
Parts in Door & Housing, Switches (0101-0114)
14 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | Cover | - |
| 0102 | | Lamp | - |
| 0103 | | Support | - |
| 0104 | | Support | - |
| 0105 | | Back panel | - |
| 0106 |  | Controller unit | - |
| 0107 | | Cover sheet | - |
| 0108 | | Bracket | - |
| 0109 | | Knob | - |
| 0110 | | Lens | - |
| 0111 | | Switch | $93.68 ApplianceParts Pro |

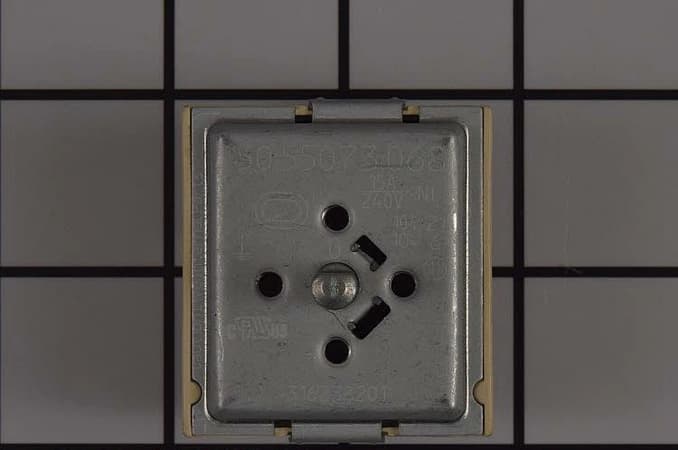

| 0112 |  | Switch | $395.95 ApplianceParts Pro |
| 0113 | | Cover | - |
| 0114 | | Screw | - |
