Model
Bosch HES345U/02
Electric Range
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
HES345U/02Electric Range
7 diagrams90 parts

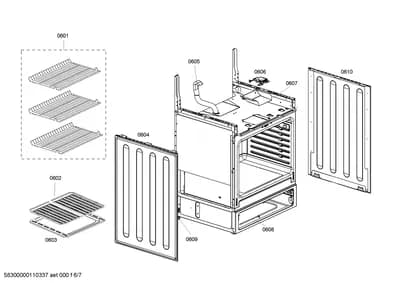

Parts Sections (7)
Diagram

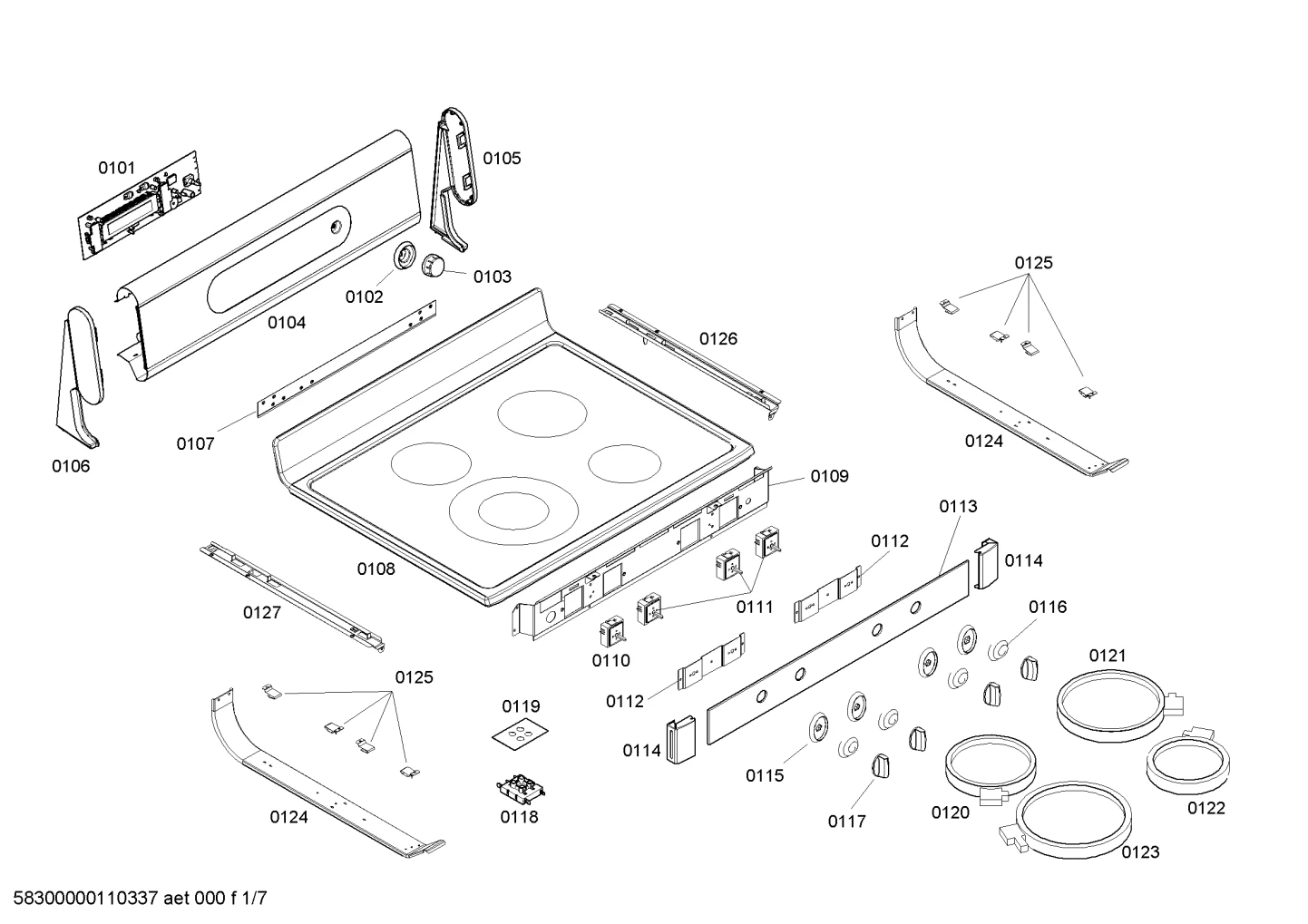

Springs, heatingparts (0101-0154)
Parts in Springs, heatingparts (0101-0154)
32 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | PC board | - |
| 0102 | | Ring | - |
| 0103 |  | Knob-programme | $7.54 ApplianceParts Pro |
| 0104 | | 00143746NLA Housing part | Discontinued |
| 0105 |  | Cap | $36.25 ApplianceParts Pro |
| 0106 |  | Cap | - |
| 0107 | | Bearing cross | - |
| 0108 | | 00241165NLA Glass ceramic hob top | Discontinued |
| 0109 | | Panel | - |
| 0110 |  | Switch | $36.06 Part Advantage |
| 0111 |  | Energy regulator | $38.50 Part Advantage |
| 0112 | | 00491580NLA Bracket | Discontinued |
| 0113 | | Glass panel | - |
| 0114 |  | Frame-decor | $29.95 ApplianceParts Pro |
| 0115 |  | 00423518NLA Ring | Discontinued |
| 0116 |  | Spring | $15.59 Parts Dr |
| 0117 | | Knob | - |
| 0118 |  | Lamp | - |
| 0119 | | Bracket | - |
| 0120 | | Heating element | $95.13 RepairClinic |
| 0121 | | Heating element | - |
| 0122 |  | Hilight hotplate | $117.78 Parts Dr |
| 0123 | | 00499573NLA Hilight hotplate | Discontinued |
| 0124 | | Bracket | - |
| 0125 | | Spring | - |
| 0126 | | Bracket | - |
| 0127 | | Bracket | - |
| 0150 | | Cable harness | - |
| 0151 | | Cable harness | - |
| 0152 | | Cable harness | - |
| 0153 | | 00494835NLA Cable harness | Discontinued |
| 0154 | | Cable | - |
