Model
Bosch HES446U/02
Electric Range
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
HES446U/02Electric Range
7 diagrams89 parts
Parts Sections (7)
Diagram

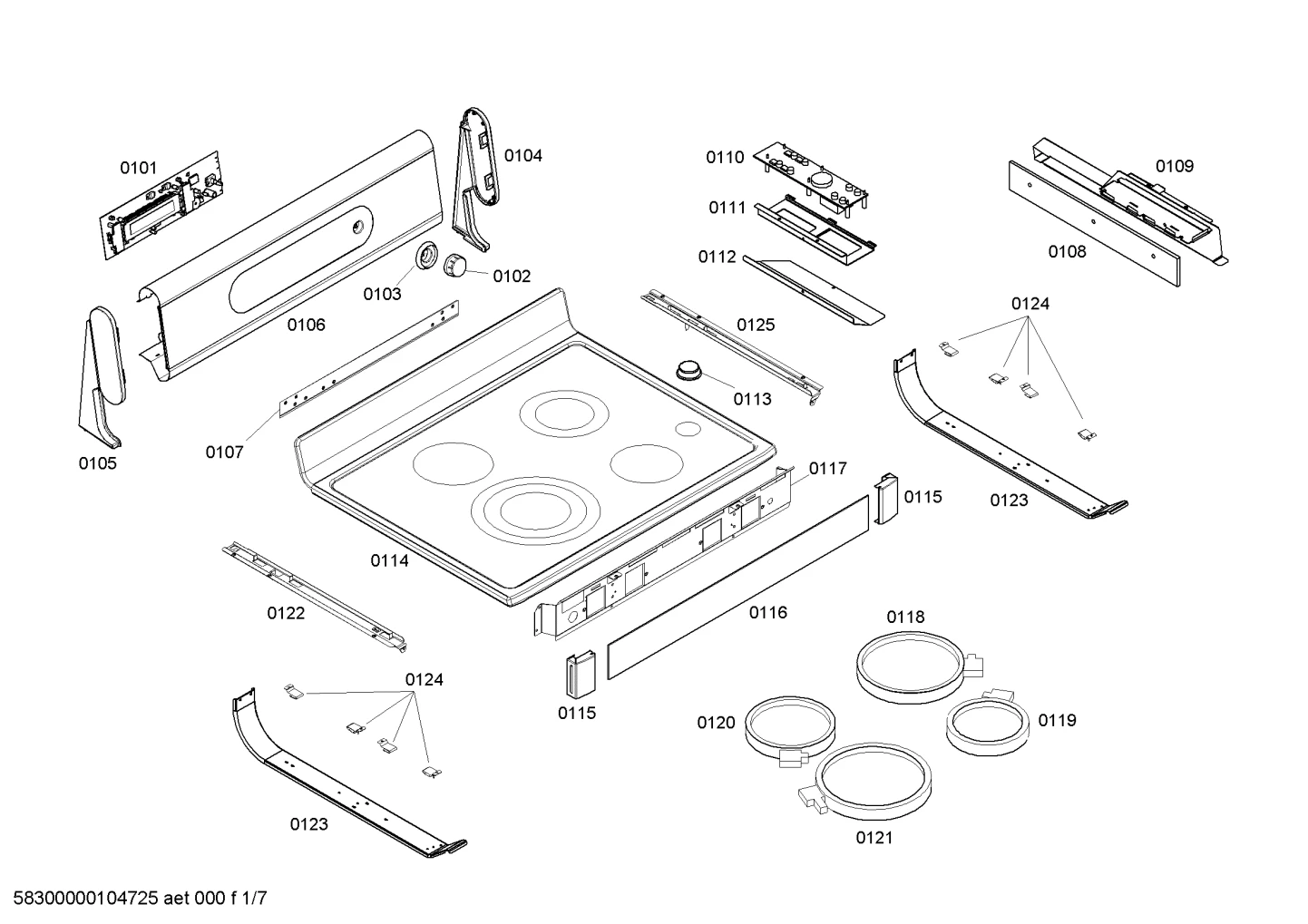

hotplates, Mounting & Fixing (0101-0154)
Parts in hotplates, Mounting & Fixing (0101-0154)
30 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | PC board | - |
| 0102 |  | Knob-programme | $7.54 ApplianceParts Pro |
| 0103 | | Ring | - |
| 0104 |  | Cap | $36.25 ApplianceParts Pro |
| 0105 |  | Cap | - |
| 0106 | | 00471771NLA Housing part | Discontinued |
| 0107 | | Bearing cross | - |
| 0108 | | Insulating part | - |
| 0109 | | Bracket | - |
| 0110 | | PC board | - |
| 0111 | | Bracket | - |
| 0112 | | Mounting set | - |
| 0113 |  | 00416295NLA Knob-cooking area | Discontinued |
| 0114 | | Glass ceramic hob top | - |
| 0115 | | Frame-decor | - |
| 0116 | | Glass panel | - |
| 0117 | | Panel | - |
| 0118 | | 00445360NLA Heating element | Discontinued |
| 0119 | | Hilight hotplate | - |
| 0120 | | Hilight hotplate | - |
| 0121 |  | Hilight hotplate | - |
| 0122 | | Bracket | - |
| 0123 | | Bracket | - |
| 0124 | | Spring | - |
| 0125 | | Bracket | - |
| 0150 | | Cable harness | - |
| 0151 | | Cable harness | - |
| 0152 | | Cable harness | - |
| 0153 | | 00494835NLA Cable harness | Discontinued |
| 0154 | | Cable | - |
