Model
Bosch HES5062U/01
Electric Range
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
HES5062U/01Electric Range
4 diagrams73 parts
Parts Sections (4)

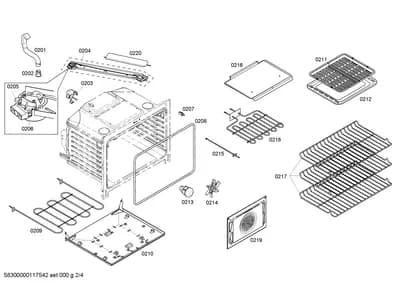

Diagram

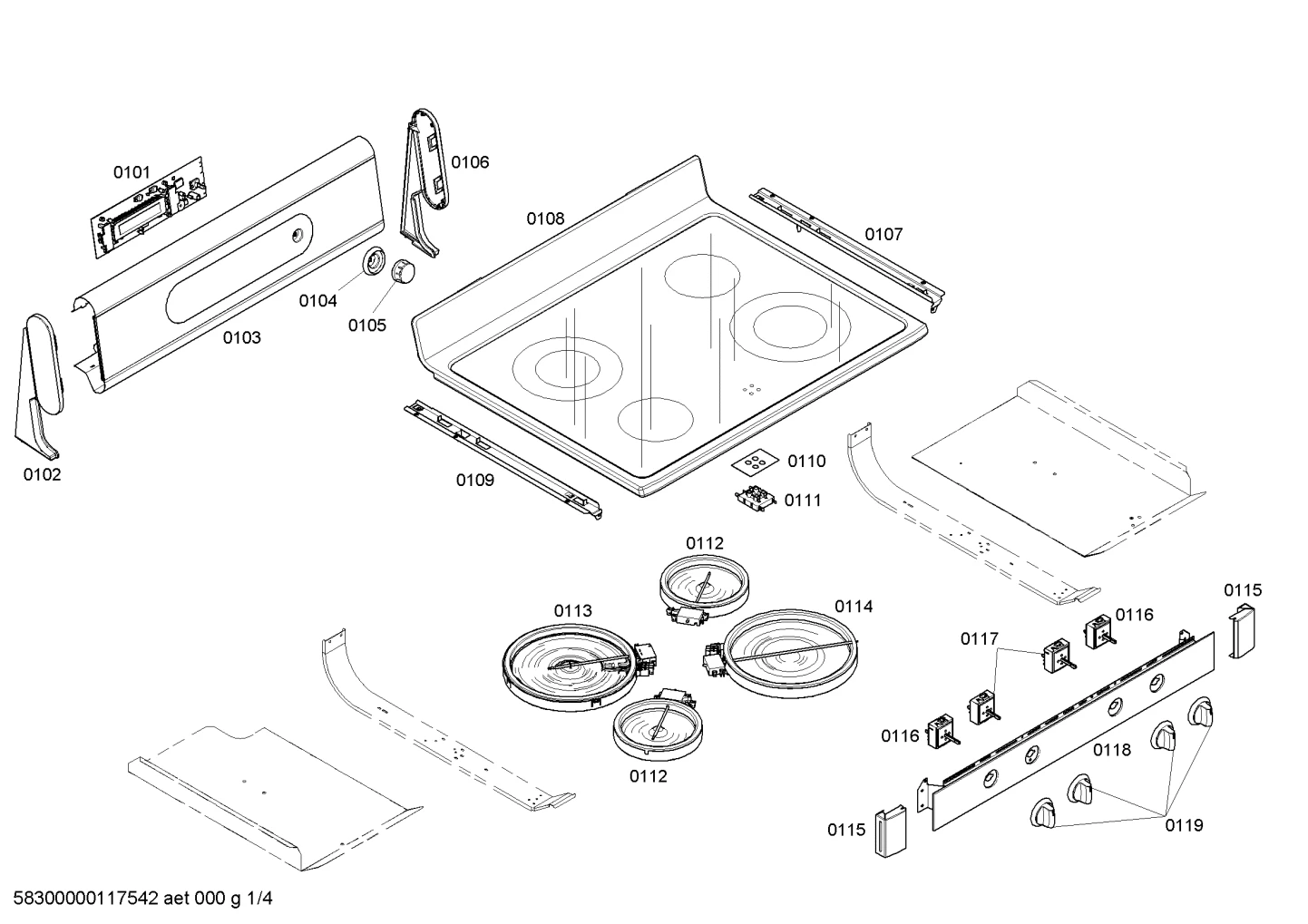

hotplates, Door & Housing (0101-0156)
Parts in hotplates, Door & Housing (0101-0156)
26 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | 00653424NLA Display module | Discontinued |
| 0102 |  | Cap | - |
| 0103 |  | Panel | - |
| 0104 |  | Ring | $42.59 ApplianceParts Pro |
| 0105 |  | Knob-programme | $7.54 ApplianceParts Pro |
| 0106 |  | Cap | $36.25 ApplianceParts Pro |
| 0107 |  | Bracket | - |
| 0108 | | Hob top | - |
| 0109 | | Bracket | - |
| 0110 | | Bracket | - |
| 0111 |  | Lamp | - |
| 0112 |  | Hilight hotplate | $117.78 Parts Dr |
| 0113 | | 00499573NLA Hilight hotplate | Discontinued |
| 0114 | | Hilight hotplate | - |
| 0115 | | Frame-decor | - |
| 0116 |  | Switch | $36.06 Part Advantage |
| 0117 |  | Energy regulator | $38.50 Part Advantage |
| 0118 | | Glass panel | - |
| 0119 | | Knob | - |
| 0150 | | Cable harness | - |
| 0151 | | Cable harness | - |
| 0152 | | Cable harness | - |
| 0153 | | Cable harness | - |
| 0154 | | Cable harness | - |
| 0155 |  | Cable harness set | - |
| 0156 | | Cover | - |
