Model
Bosch HES7282U/01
Electric Range
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
HES7282U/01Electric Range
6 diagrams109 parts
Parts Sections (6)
Diagram

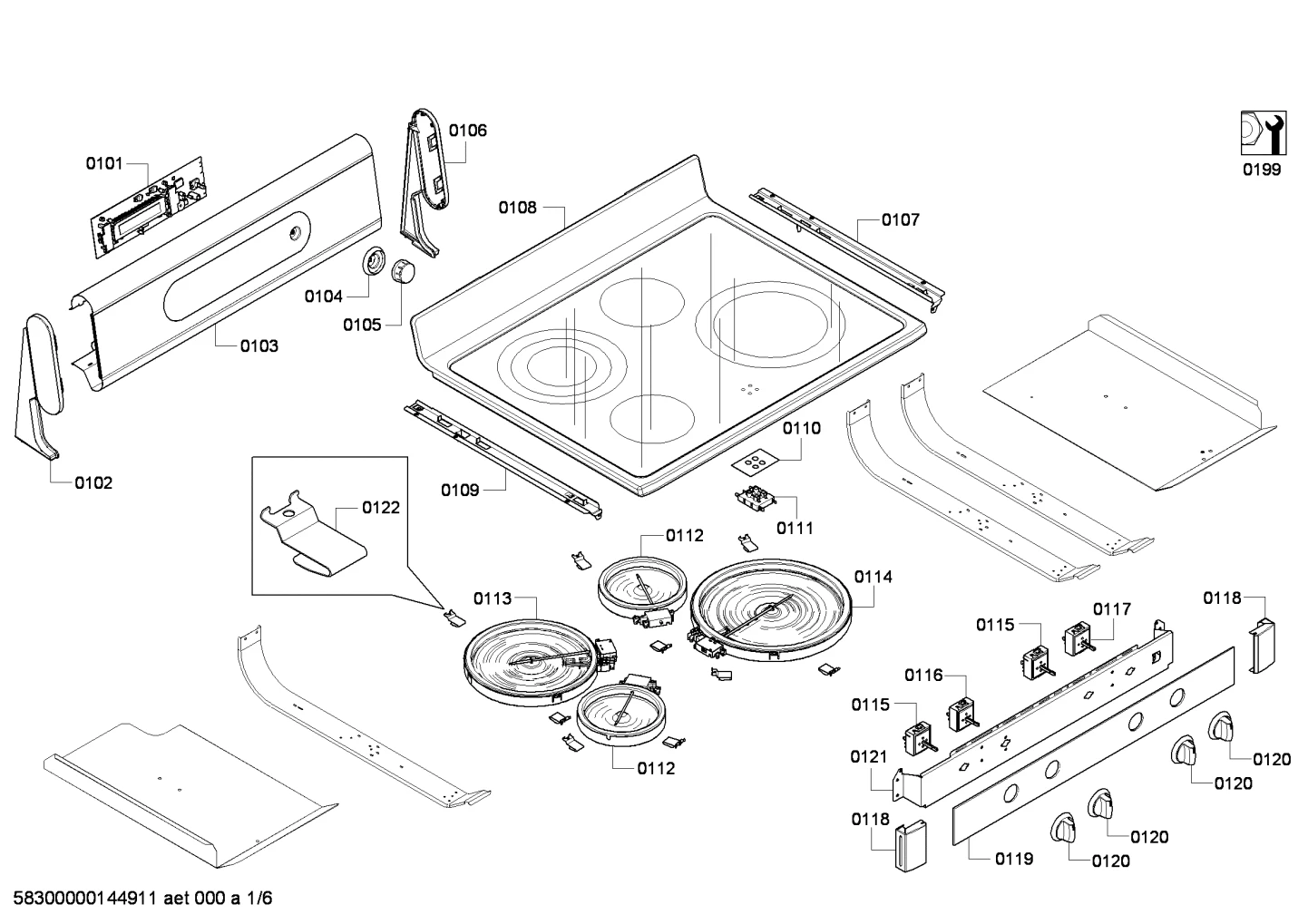

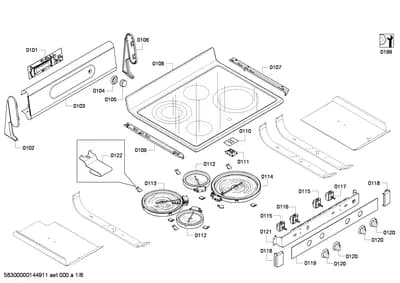

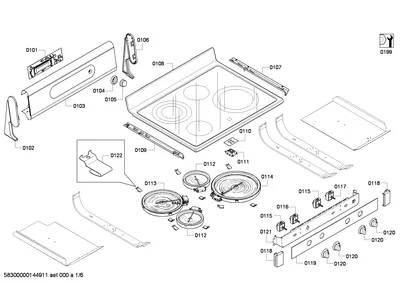

Mounting & Fixing, Door & Housing (0101-0199)
Parts in Mounting & Fixing, Door & Housing (0101-0199)
30 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | 00653424NLA Display module | Discontinued |
| 0102 |  | Fixing kit | - |
| 0103 |  | Panel | - |
| 0104 |  | Ring | $42.59 ApplianceParts Pro |
| 0105 |  | Knob-oven | $56.31 Parts Dr |
| 0106 | | Fixing kit | - |
| 0107 | | Bracket | - |
| 0108 | | Hob top | - |
| 0109 | | Bracket | - |
| 0110 | | Bracket | - |
| 0111 |  | Lamp | - |
| 0112 |  | Hilight hotplate | $117.78 Parts Dr |
| 0113 |  | Heating element | - |
| 0114 |  | Heating element | - |
| 0115 | | Energy regulator | $51.40 ApplianceParts Pro |
| 0116 |  | Switch | $94.67 Parts Dr |
| 0117 |  | Switch | $36.06 Part Advantage |
| 0118 |  | Frame-decor | $29.95 ApplianceParts Pro |
| 0119 | | Panel | $124.26 ApplianceParts Pro |
| 0120 | | 00603902NLA Knob | Discontinued |
| 0121 | | Panel | - |
| 0122 | | Spring | - |
| 0150 |  | Cable harness | - |
| 0151 | | Cable harness | - |
| 0152 | | Cable harness | $90.95 ApplianceParts Pro |
| 0153 |  | Cable harness set | - |
| 0154 | | Cable harness | - |
| 0155 | | Cable harness | - |
| 0156 |  | Filter | $50.72 ApplianceParts Pro |
| 0199 | | Part not included in this appliance | - |
