Model
Bosch HGI8046UC/01
Gas Range
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
HGI8046UC/01Gas Range
10 diagrams133 parts
Parts Sections (10)
Diagram
Screws, Door & Housing (0601-0609)
Parts in Screws, Door & Housing (0601-0609)
9 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0601 |  | Cover | $132.97 ApplianceParts Pro |
| 0602 |  | Screw | $19.95 ApplianceParts Pro |
| 0603 |  | Bracket | $76.17 PartSelect |

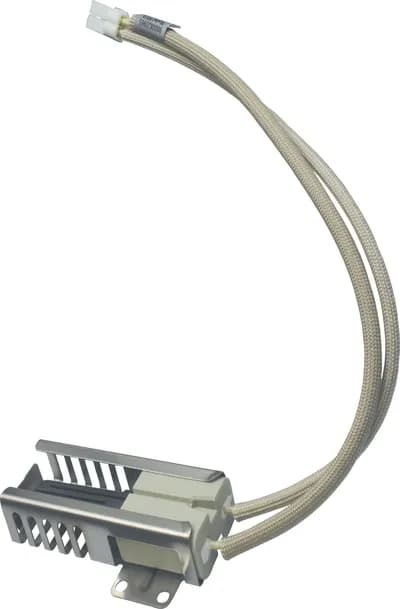

| 0604 |  | Igniter | $82.80 Part Advantage |
| 0605 |  | Screw | $18.41 Part Advantage |

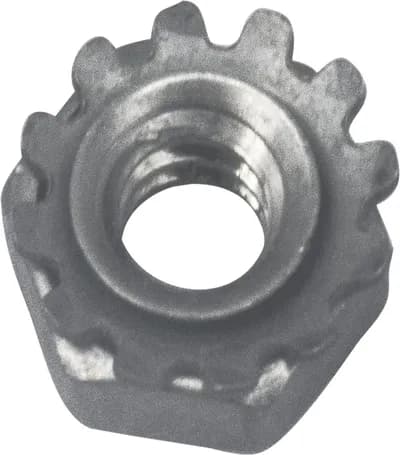

| 0606 |  | Nut | $11.80 Parts Dr |
| 0607 |  | Burner | $45.54 ApplianceParts Pro |
| 0608 | | Pan | - |
| 0609 |  | Screw | - |
