Model
Bosch HGI8046UC/03
Gas Range
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
HGI8046UC/03Gas Range
10 diagrams134 parts
Parts Sections (10)
Diagram

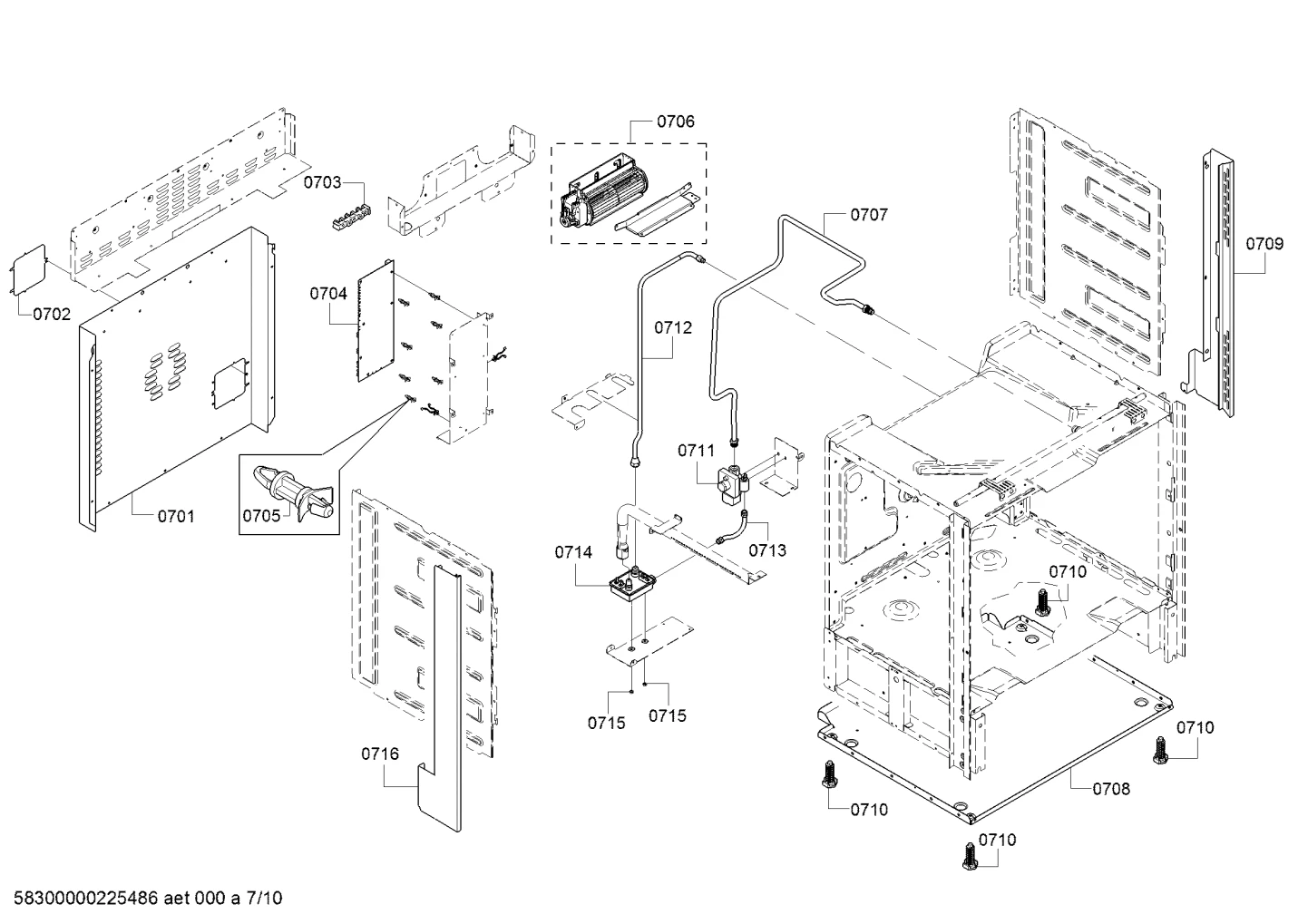

Door & Housing, Fan Parts (0701-0762)
Parts in Door & Housing, Fan Parts (0701-0762)
30 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0701 |  | Cover | - |
| 0702 | | Panel | - |
| 0703 |  | Terminal box | $25.53 Part Advantage |
| 0704 |  | Control module programmed | $263.80 Part Advantage |
| 0704 | – | 10040226 Control module not programmed | - |
| 0705 | | Spacer | $22.97 Parts Dr |
| 0706 |  | Fan | $163.52 Part Advantage |
| 0707 |  | Tube | $44.40 Parts Dr |
| 0708 | | Panel-base | - |
| 0709 |  | Panel side | - |
| 0710 |  | Leveling Leg | $23.02 Part Advantage |

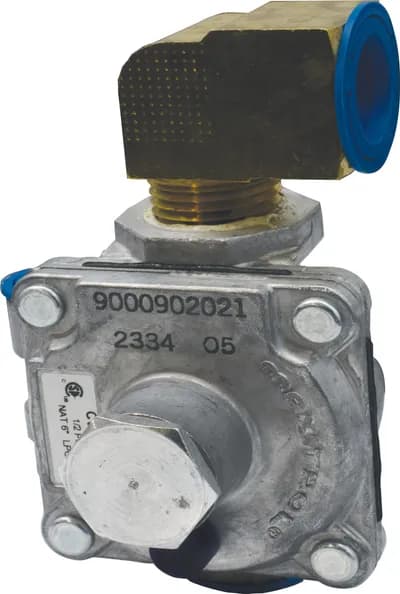

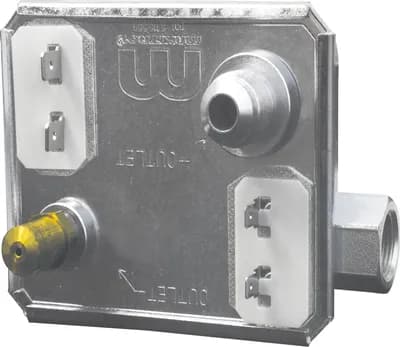

| 0711 |  | Regulator | $91.41 Parts Dr |
| 0712 | | Tube | - |
| 0713 |  | Tube | $24.26 ApplianceParts Pro |
| 0714 |  | Valve | $134.12 Parts Dr |
| 0715 | | Nut | - |
| 0716 |  | Panel side | $62.56 ApplianceParts Pro |
| 0750 | | Cable harness | - |
| 0751 | | Cable harness | - |
| 0752 |  | Cable harness | $40.46 ApplianceParts Pro |
| 0753 |  | Cable harness | $43.93 Parts Dr |
| 0754 | | Cable harness | - |
| 0755 |  | Cable harness | - |
| 0756 |  | Cable harness | - |
| 0757 |  | Cable harness | $81.32 ApplianceParts Pro |
| 0758 |  | Cable harness | $48.03 Parts Dr |
| 0759 |  | Power cord | $64.08 Parts Dr |
| 0760 | | Stress-relief | $8.97 PartSelect |
| 0761 | | Wire end sleeve | - |
| 0762 |  | Screw | $22.32 ApplianceParts Pro |
