Model
Bosch HGI8054UC/07
Gas Range
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
HGI8054UC/07Gas Range
10 diagrams135 parts
Parts Sections (10)
Diagram

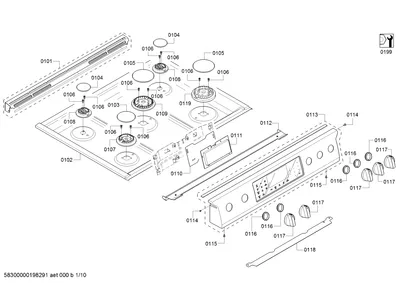

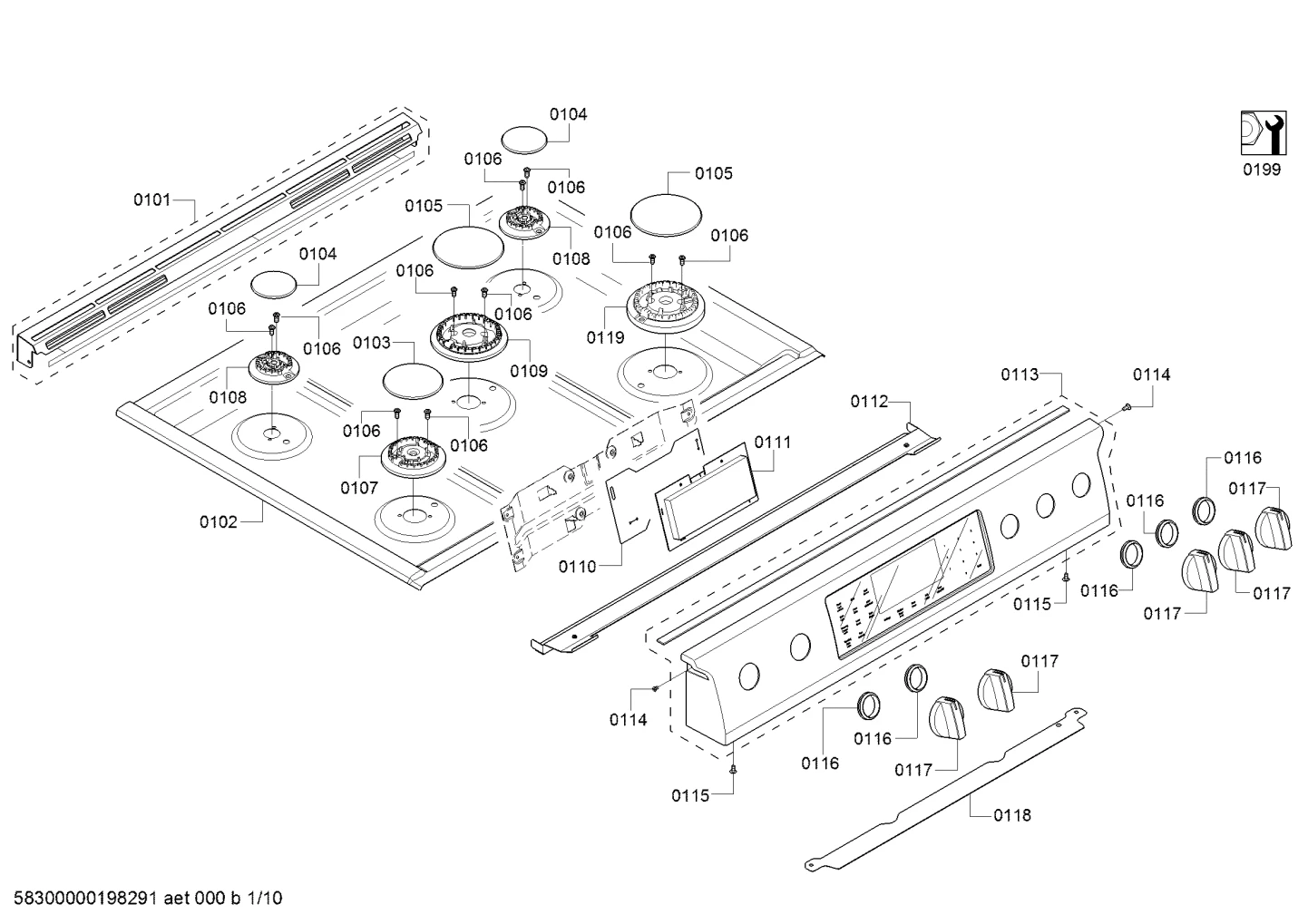

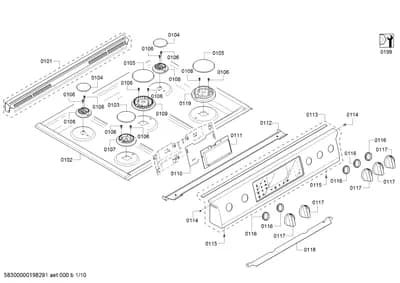

Screws, othergasparts (0101-0199)
Parts in Screws, othergasparts (0101-0199)
24 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | Trimplate | - |
| 0102 |  | Hob top | $287.66 PartSelect |
| 0103 |  | Burner cap | $32.50 Parts Dr |
| 0104 |  | Burner cap | $25.95 Part Advantage |
| 0105 |  | Burner cap | $28.46 Part Advantage |
| 0106 |  | Screw | $18.41 Part Advantage |
| 0107 |  | Burner | $18.41 Part Advantage |
| 0108 |  | Burner | $9.78 RepairClinic |
| 0109 |  | Burner | $26.23 Parts Dr |
| 0110 |  | Sheet | - |
| 0111 |  | Display module | $173.19 Part Advantage |
| 0112 |  | Trimplate | $102.32 PartSelect |
| 0113 |  | Front panel | $309.35 RepairClinic |
| 0114 |  | Screw | $18.43 ApplianceParts Pro |
| 0115 |  | Screw | - |
| 0116 |  | Ring | $23.44 Part Advantage |
| 0117 |  | Knob-cooking area | $45.62 Part Advantage |
| 0118 |  | Air duct | - |
| 0119 |  | Burner | $49.51 Parts Dr |
| 0150 |  | Screw | - |
| 0151 |  | Spacer | - |
| 0152 | | Screw | $18.43 ApplianceParts Pro |
| 0199 |  | Trimplate | - |
| 0199 |  | Trimplate | - |
