Model
Bosch HGS5052UC/01
Gas Range
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
HGS5052UC/01Gas Range
4 diagrams93 parts
Parts Sections (4)
Diagram

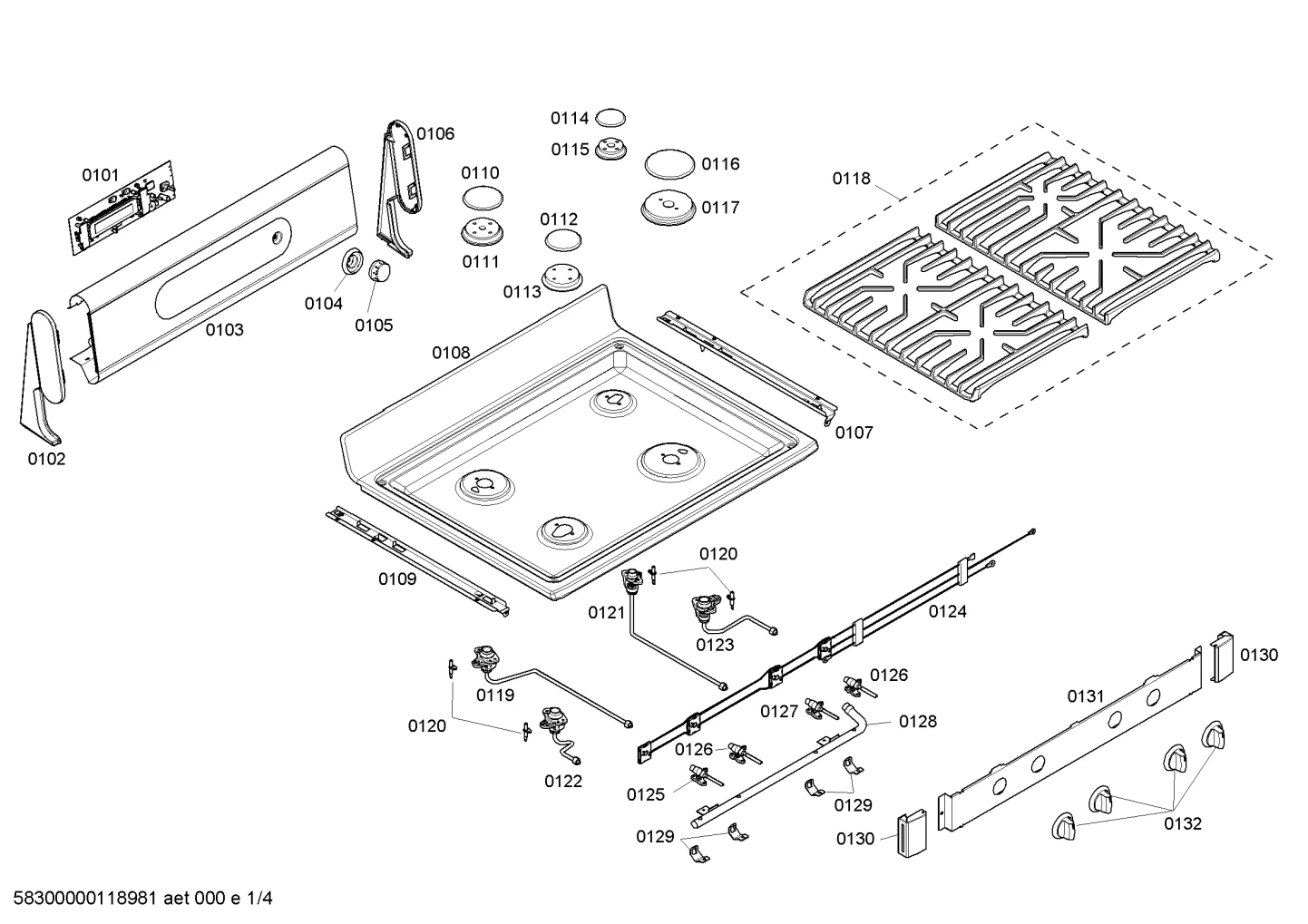

othergasparts, Flaps & Holders (0101-0160)
Parts in othergasparts, Flaps & Holders (0101-0160)
42 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | 00653424NLA Display module | Discontinued |
| 0102 |  | Cap | - |
| 0103 |  | Panel | - |
| 0104 |  | Ring | $42.59 ApplianceParts Pro |
| 0105 |  | Knob-programme | $7.54 ApplianceParts Pro |
| 0106 |  | Cap | $36.25 ApplianceParts Pro |
| 0107 |  | Bracket | - |
| 0108 | | Hob top | - |
| 0109 | | Bracket | - |
| 0110 |  | Burner cap | - |
| 0111 |  | Burner housing | $49.59 Parts Dr |
| 0112 | | Burner cap | - |
| 0113 |  | Burner housing | $38.93 Part Advantage |
| 0114 | | Burner cap | - |
| 0115 |  | Burner housing | $25.30 RepairClinic |
| 0116 |  | 00603715NLA Cap | Discontinued |
| 0117 | | 00423449NLA Burner housing | Discontinued |

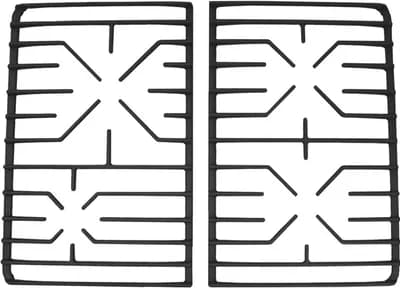

| 0118 |  | Grid | - |
| 0119 |  | Jet Holder | $57.87 Parts Dr |
| 0120 |  | Electrode | $18.00 Part Advantage |
| 0121 |  | Jet Holder | $55.80 Parts Dr |
| 0122 |  | Jet Holder Assembly | $48.24 Parts Dr |
| 0123 |  | Jet Holder Assembly | $54.23 Part Advantage |
| 0124 |  | Cable harness | $33.45 Parts Dr |

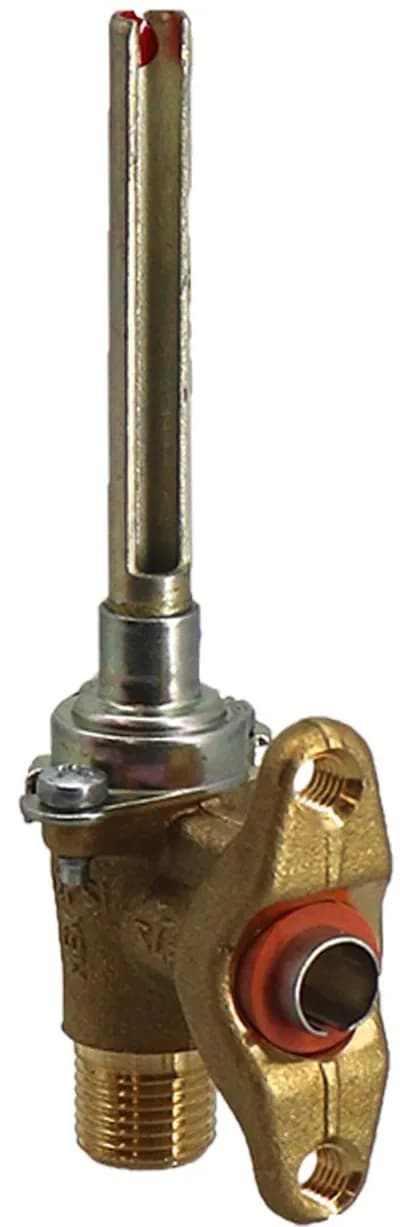

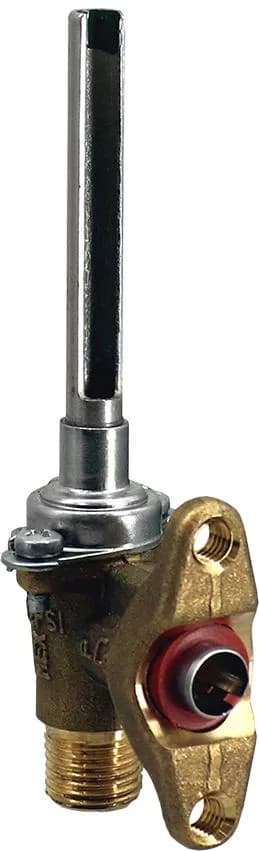

| 0125 |  | Valve | $27.94 Parts Dr |
| 0126 |  | Valve | $116.55 Parts Dr |
| 0127 |  | Valve | $44.84 Parts Dr |
| 0128 | | Manifold | $84.89 Parts Dr |

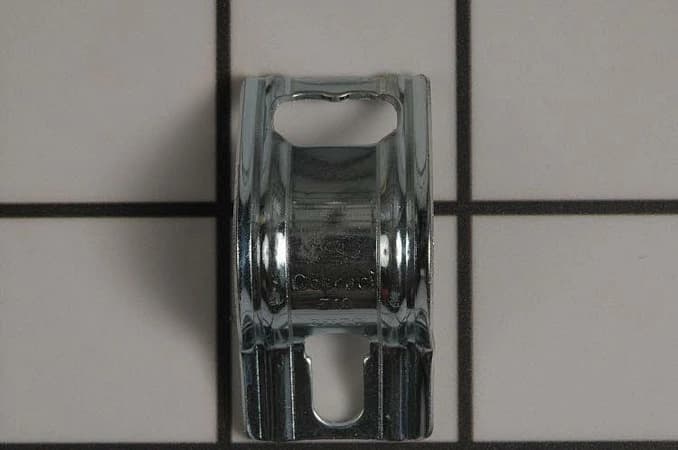

| 0129 |  | Clamp | $29.26 Parts Dr |
| 0130 |  | Frame-decor | $29.95 ApplianceParts Pro |
| 0131 | | Glass panel | - |
| 0132 |  | Knob | - |

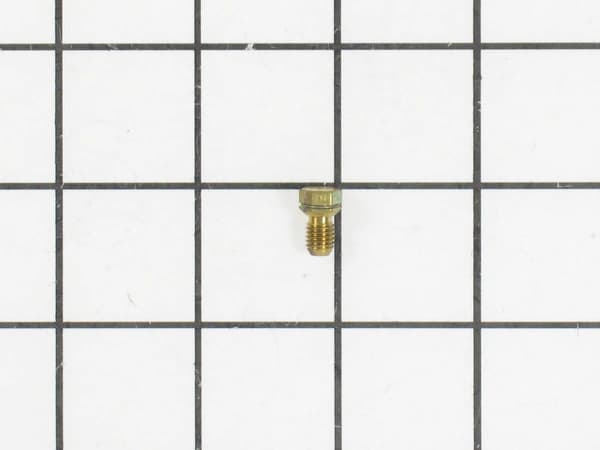

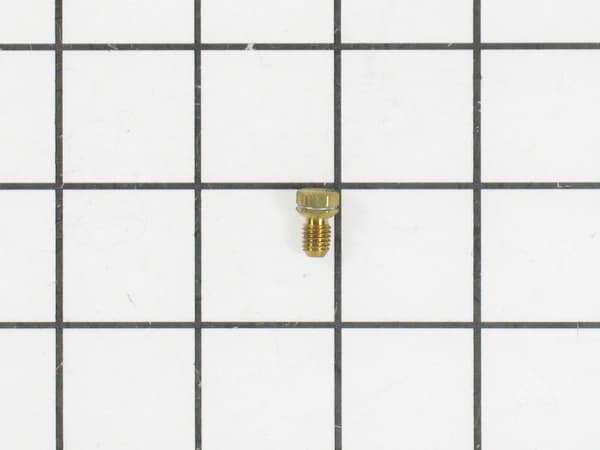

| 0150 |  | Jet | - |
| 0151 |  | Jet | - |
| 0152 |  | Jet | - |
| 0153 |  | Jet | - |
| 0154 | | Plug | - |
| 0155 | | Cable harness | - |
| 0156 | | Cable harness | - |
| 0157 | | Cable harness | - |
| 0158 |  | Cable | - |
| 0160 |  | Grate Foot | $5.02 Part Advantage |
