Model
Bosch HGS7052UC/03
Gas Range
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
HGS7052UC/03Gas Range
4 diagrams103 parts
Parts Sections (4)
Diagram

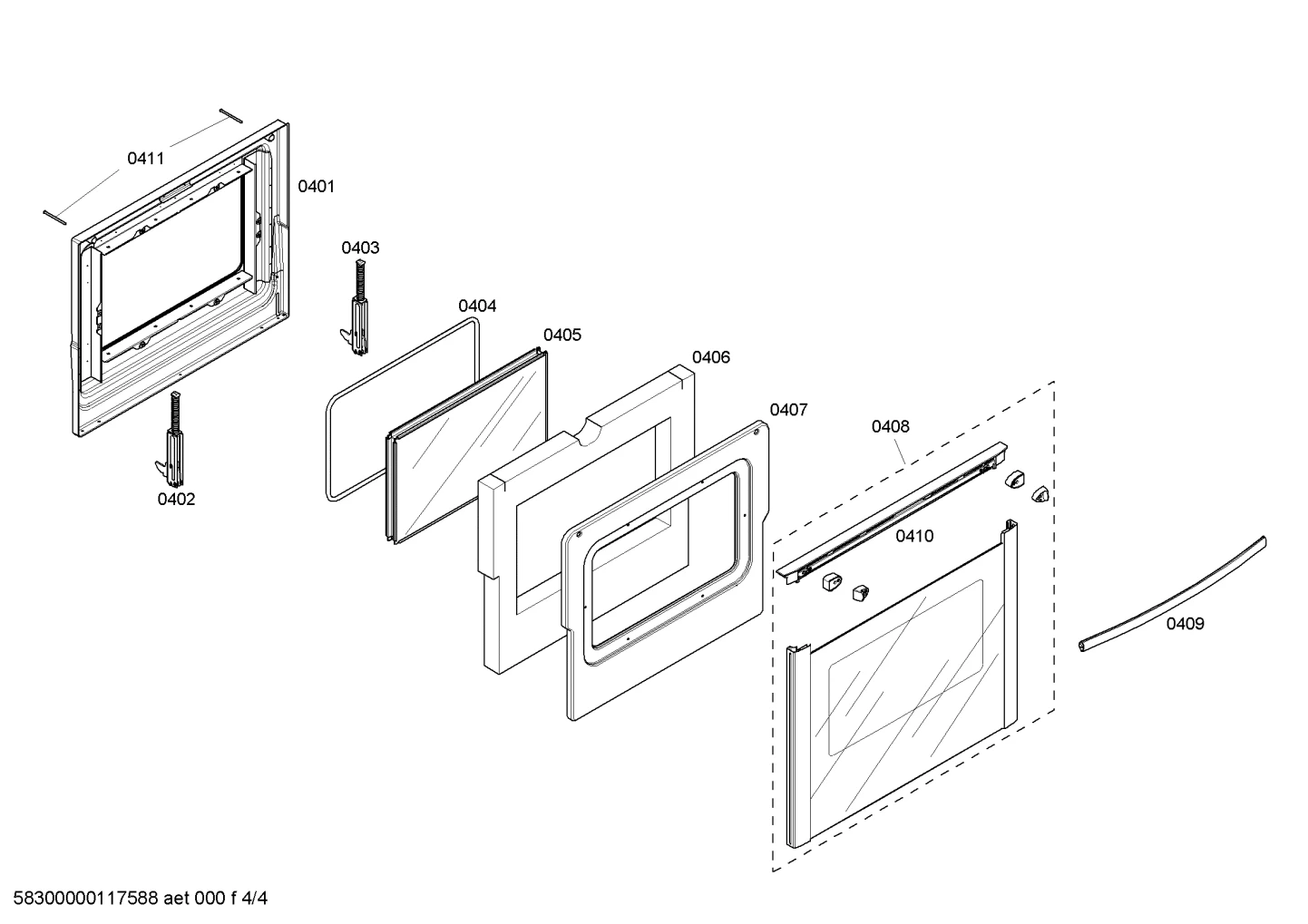

Door & Housing, Mounting & Fixing (0401-0411)
Parts in Door & Housing, Mounting & Fixing (0401-0411)
11 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0401 |  | Door-inner | $117.83 RepairClinic |
| 0402 |  | Fixing kit | $376.01 Parts Dr |
| 0403 | | Fixing kit | $376.01 Parts Dr |
| 0404 |  | Sealing | - |
| 0405 |  | Glass front panel | $185.24 Parts Dr |
| 0406 |  | Insulating part | - |
| 0407 |  | Heat shield | $99.34 Parts Dr |
| 0408 |  | Door | - |
| 0409 | | Handle-door | - |
| 0410 |  | 00449874NLA Trimplate | Discontinued |
| 0411 | | Screw | - |
