Model
Bosch HGS7132UC/03
Gas Range
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
HGS7132UC/03Gas Range
7 diagrams126 parts
Parts Sections (7)
Diagram

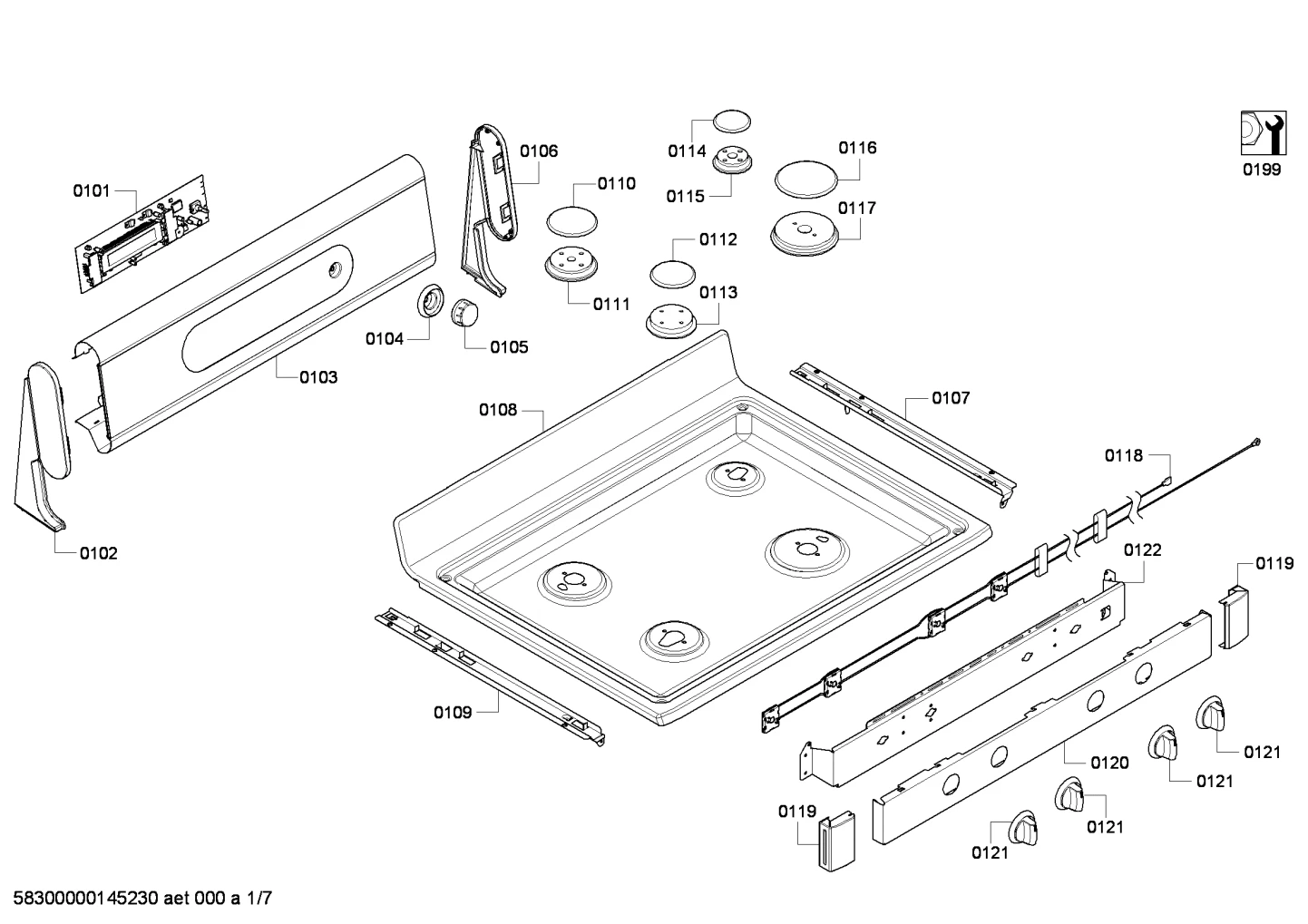

othergasparts, burnercaps rings (0101-0199)
Parts in othergasparts, burnercaps rings (0101-0199)
33 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | 00653424NLA Display module | Discontinued |
| 0102 |  | Frame-decor | - |
| 0103 | | Panel | - |
| 0104 |  | Ring | $42.59 ApplianceParts Pro |
| 0105 |  | Knob-oven | $56.31 Parts Dr |
| 0106 | | Frame-decor | - |
| 0107 | | Bracket | - |
| 0108 | | Hob top | - |
| 0109 | | Bracket | - |
| 0110 |  | Burner cap | - |
| 0111 |  | Burner housing | $49.59 Parts Dr |
| 0112 | | Burner cap | - |
| 0113 |  | Burner housing | $38.93 Part Advantage |
| 0114 | | Cap | $62.23 ApplianceParts Pro |
| 0115 |  | Burner housing | $25.30 RepairClinic |
| 0116 |  | Burner cap | $85.28 Parts Dr |
| 0117 | | 00423449NLA Burner housing | Discontinued |
| 0118 |  | Cable harness | $33.45 Parts Dr |
| 0119 |  | Frame-decor | $29.95 ApplianceParts Pro |
| 0120 | | Panel | - |
| 0121 | | Knob | - |
| 0122 | | Panel | - |
| 0150 | | Cable harness | - |
| 0151 | | Cable harness | $90.95 ApplianceParts Pro |
| 0152 | | Cable harness | - |
| 0153 |  | Cable | - |
| 0154 | | Wire | - |
| 0155 | | Wire | - |
| 0156 | | Wire | - |
| 0157 | | Wire | - |
| 0159 |  | Filter | $50.72 ApplianceParts Pro |
| 0160 |  | Screw | $2.51 Part Advantage |
| 0199 | | Part not included in this appliance | - |
