Model
Bosch HGS8645UC/01
Gas Range
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
HGS8645UC/01Gas Range
5 diagrams158 parts
Parts Sections (5)

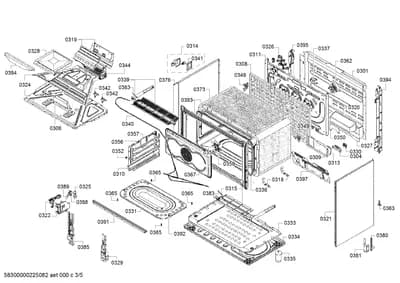

Diagram

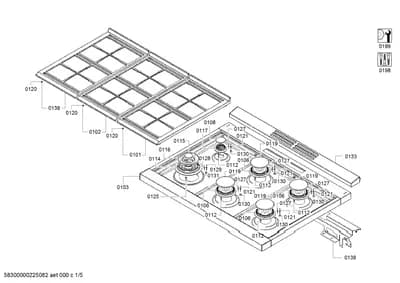

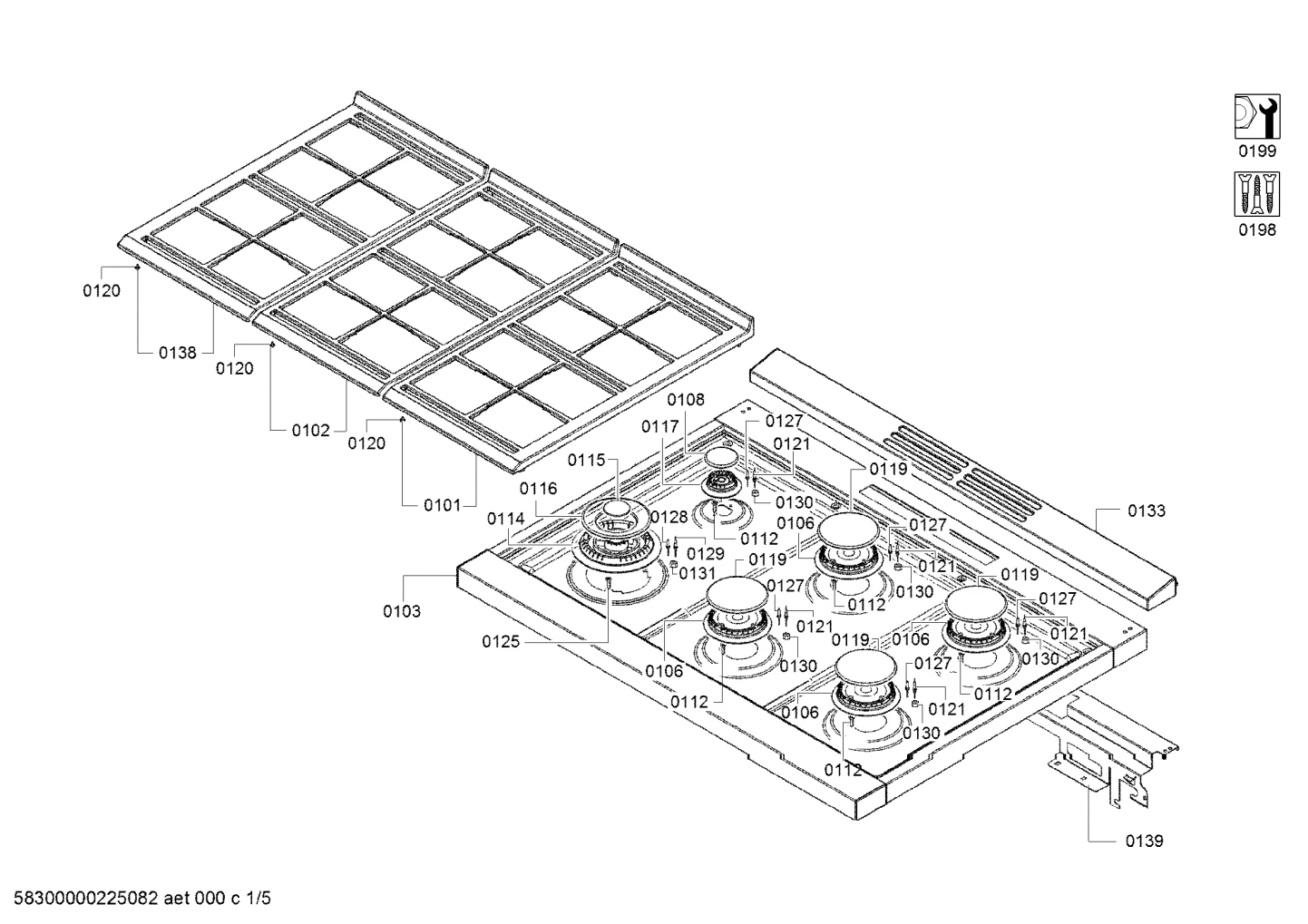

Screws, shelves trays (0101-0199)
Parts in Screws, shelves trays (0101-0199)
30 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | Grid | - |
| 0102 |  | Grid | - |
| 0103 |  | Hob top | - |
| 0106 |  | Burner tip | $33.96 ApplianceParts Pro |
| 0108 |  | Burner cap | $21.92 Parts Dr |
| 0112 |  | Screw-set | - |
| 0114 |  | Burner tip | $114.38 ApplianceParts Pro |
| 0115 |  | Burner cap | $65.62 Parts Dr |
| 0116 |  | Burner ring | $52.55 ApplianceParts Pro |
| 0117 |  | Burner tip | $30.83 Parts Dr |
| 0119 |  | Burner cap | $30.60 Parts Dr |
| 0120 |  | Seating | $6.92 ApplianceParts Pro |
| 0121 |  | Thermocouple | $47.95 ApplianceParts Pro |
| 0125 |  | Screw | $6.16 ApplianceParts Pro |
| 0127 |  | Ignition head | $30.79 Parts Dr |
| 0128 |  | Ignition head | $46.49 Parts Dr |
| 0129 |  | Thermocouple | $58.84 Parts Dr |
| 0130 |  | Nut | - |
| 0131 | | Nut | - |
| 0133 |  | Housing part | - |
| 0138 |  | Grid | - |
| 0139 |  | Connection piece | - |
| 0198 |  | Screw | - |
| 0198 |  | Screw-set | - |
| 0198 |  | Screw | - |
| 0198 |  | 10020571replaces 10014243 Screw | - |
| 0198 | – | 10031453 Screw | - |
| 0198 | – | 10034862 Screw | - |
| 0199 |  | Washer | - |
| 0199 |  | Clamp | $12.53 ApplianceParts Pro |
