Model
Bosch HII8047U/03
Induction Cooktop
Parts Sections (8)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
HII8047U/03Induction Cooktop
8 diagrams123 parts
Parts Sections (8)
Diagram

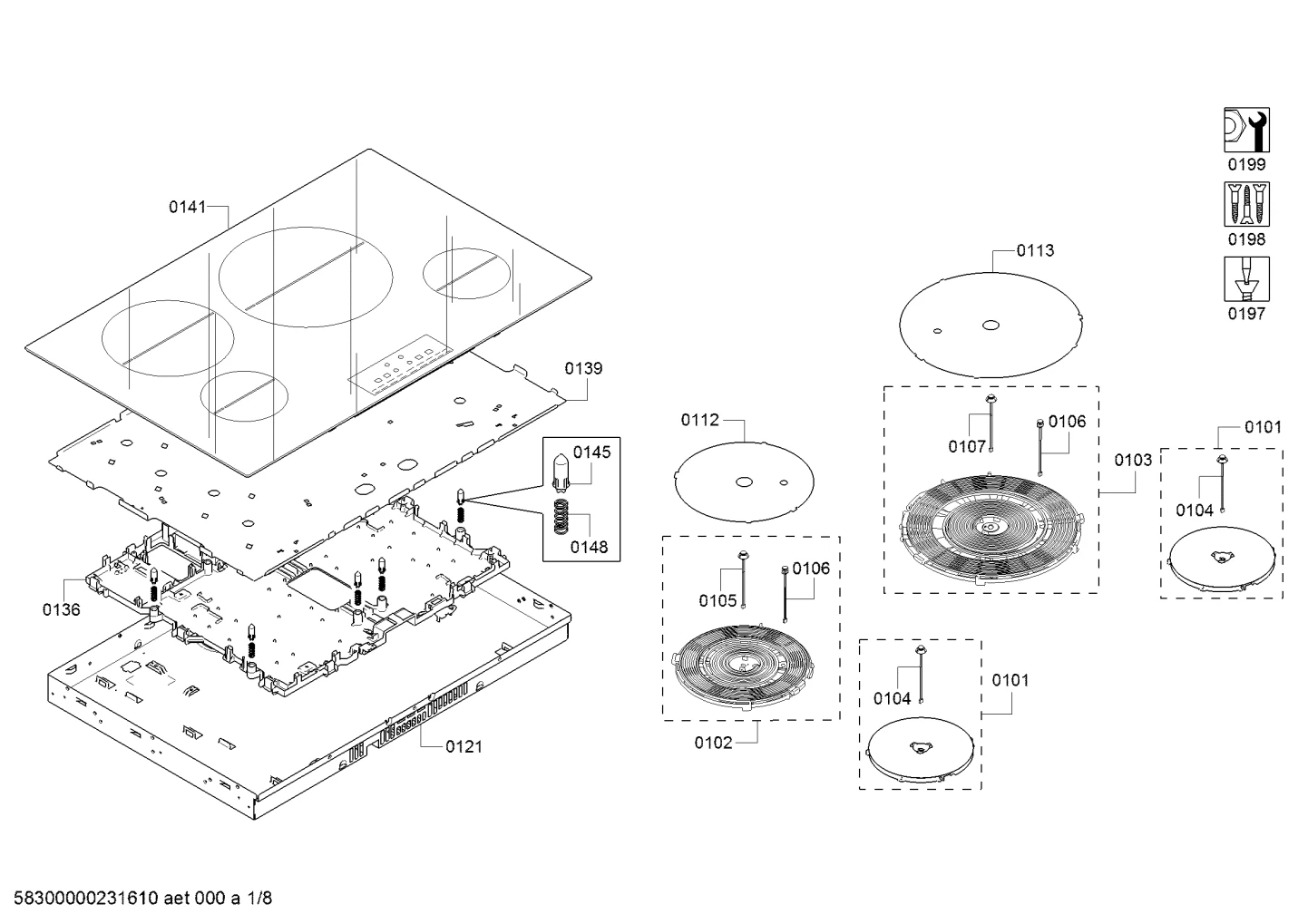

Screws, Door & Housing (0101-0199)
Parts in Screws, Door & Housing (0101-0199)
26 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | Induction hotplate | $64.95 ApplianceParts Pro |
| 0102 |  | Induction hotplate | $118.51 ApplianceParts Pro |
| 0103 |  | Induction hotplate | $138.79 PartSelect |
| 0104 |  | Sensor-NTC | - |
| 0105 |  | Sensor-NTC | $14.48 ApplianceParts Pro |
| 0106 |  | Sensor-NTC | - |
| 0107 |  | Sensor-NTC | - |
| 0112 |  | Lid | - |
| 0113 |  | Lid | - |
| 0121 |  | Frame | $98.97 Parts Dr |
| 0136 |  | Holder | - |
| 0139 |  | Case-bottom | - |
| 0141 |  | Glass ceramic hob top | - |
| 0145 |  | Cover | $3.35 Part Advantage |
| 0148 |  | Spring | $3.77 Part Advantage |
| 0197 | | Part not included in this appliance | - |
| 0198 |  | Screw-set | - |
| 0198 |  | Screw | $4.37 ApplianceParts Pro |
| 0198 | | Screw | $4.37 ApplianceParts Pro |
| 0198 |  | Screw | - |
| 0199 |  | Sealing strip | - |
| 0199 |  | Lubricant | - |
| 0199 | – | 10019445 Screw | - |
| 0199 |  | Trimplate | - |
| 0199 | | Cover | - |
| 0199 | – | 10035911 Support | - |
