Model
Bosch HII8056U/01
Induction Cooktop
Parts Sections (8)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
HII8056U/01Induction Cooktop
8 diagrams123 parts
Parts Sections (8)
Diagram
connectionpieces, Fan Parts (0202-0262)
Parts in connectionpieces, Fan Parts (0202-0262)
14 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0202 |  | Power module not programmed | $229.56 ApplianceParts Pro |

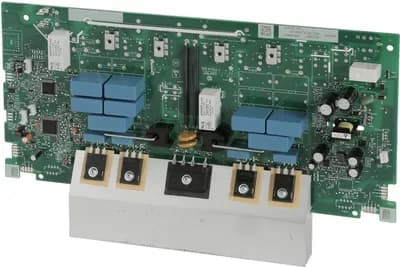

| 0202 |  | Power module programmed | $220.58 ApplianceParts Pro |
| 0204 |  | Power module not programmed | - |
| 0204 |  | Power module programmed | $292.74 ApplianceParts Pro |
| 0211 |  | PC board | $285.15 Part Advantage |
| 0212 |  | PC board | $63.30 ApplianceParts Pro |
| 0213 |  | Fan | $35.32 ApplianceParts Pro |
| 0223 |  | Connection piece | - |
| 0230 |  | Connection piece | - |
| 0231 |  | Connection piece | $8.32 Parts Dr |

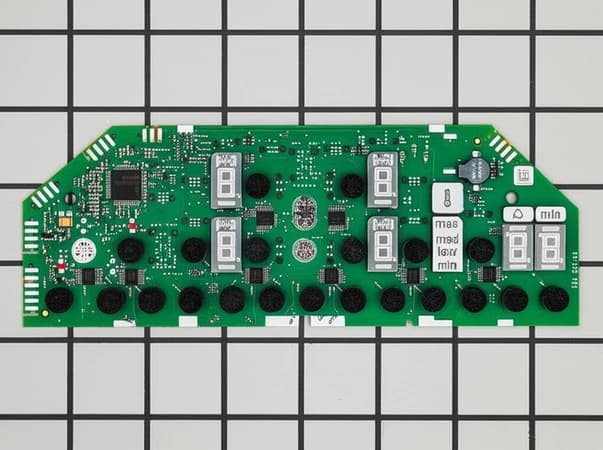

| 0240 |  | Operating module | $104.64 ApplianceParts Pro |

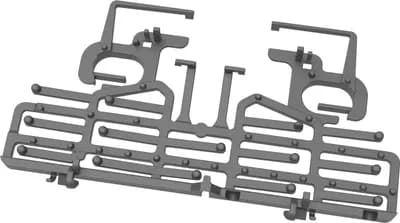

| 0241 |  | Fixture | - |
| 0260 |  | Power cord | $109.67 ApplianceParts Pro |
| 0262 |  | Locking cap | - |
