Model
Bosch HSD5051UC/01
Wall Oven
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
HSD5051UC/01Wall Oven
1 diagram13 parts
Parts Sections (1)
Diagram
Screws, Door & Housing (0101-0153)
Parts in Screws, Door & Housing (0101-0153)
15 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | Trimplate | - |
| 0102 | | Trimplate | - |
| 0103 |  | Spacer | $27.41 Parts Dr |
| 0104 |  | Slide | $82.53 Part Advantage |

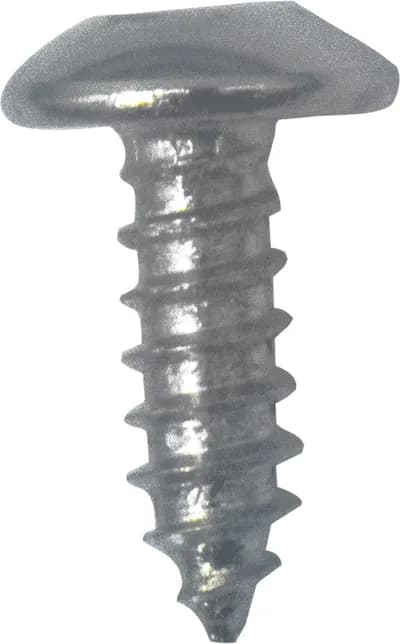

| 0105 |  | Screw | $18.43 ApplianceParts Pro |
| 0106 |  | Cover sheet | - |
| 0107 | | Drawer | - |
| 0108 |  | Screw | $25.62 ApplianceParts Pro |
| 0109 |  | Screw | $18.41 Part Advantage |
| 0110 | | Panel | - |
| 0111 |  | Drawer front | - |
| 0150 | | Screw | $25.62 ApplianceParts Pro |
| 0151 |  | Connection piece | - |
| 0152 |  | Screw | $24.27 Part Advantage |
| 0153 | | Screw | $25.62 ApplianceParts Pro |
