Model
Bosch KAN58A70AU/09
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
KAN58A70AU/09
6 diagrams100 parts
Parts Sections (6)
Diagram

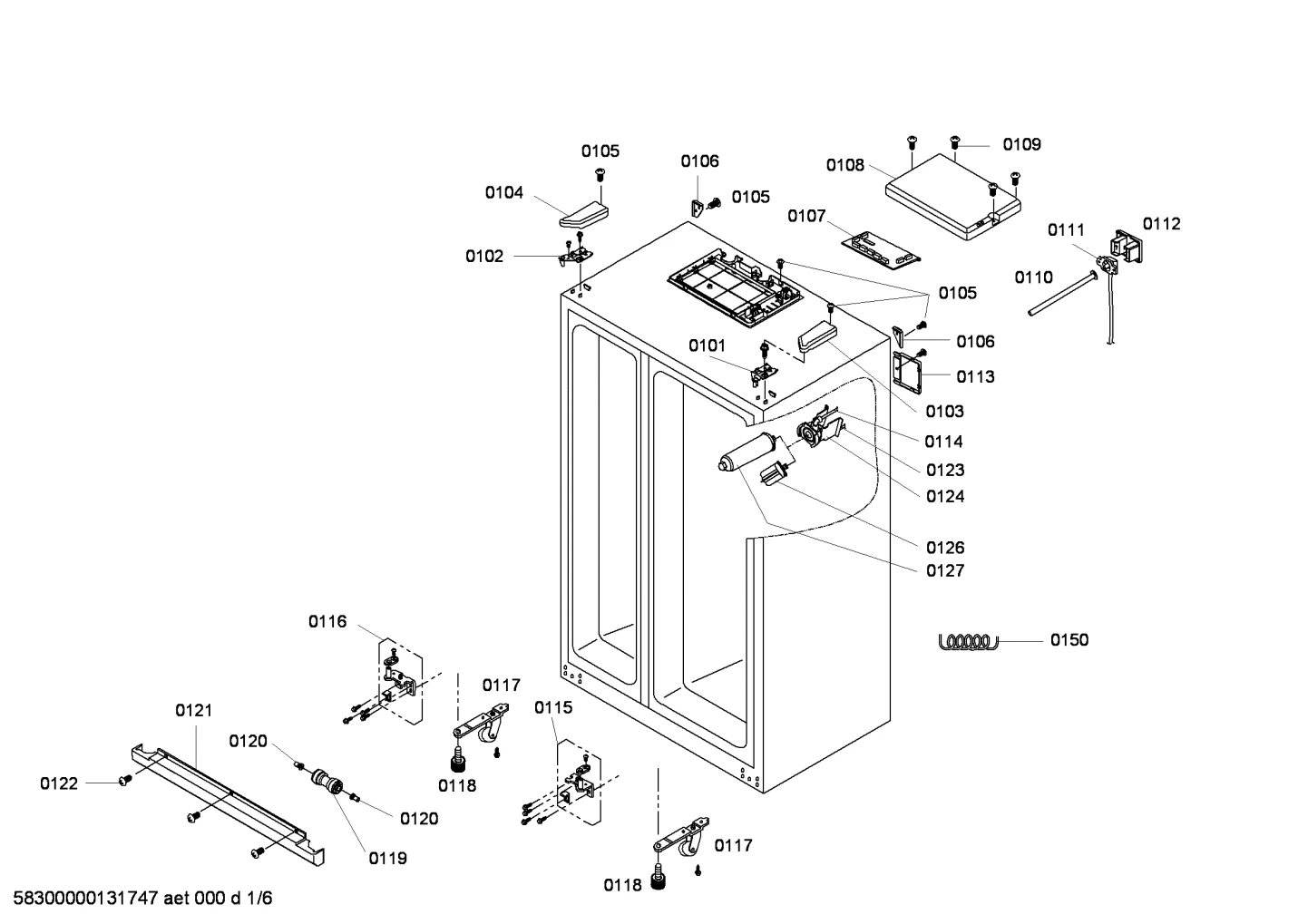

Bearings, Flaps & Holders (0101-0150)
Parts in Bearings, Flaps & Holders (0101-0150)
22 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | Door bearing | - |
| 0102 |  | Door bearing | - |
| 0105 |  | Screw | - |
| 0109 | | Screw | - |
| 0111 |  | Hose-fill | - |
| 0112 | | Cover | - |
| 0113 | | Cover | $36.11 RepairClinic |
| 0114 |  | Holder | $165.25 Parts Dr |
| 0115 |  | Door bearing | - |
| 0116 |  | Door bearing | $32.20 ApplianceParts Pro |
| 0117 |  | Reel | - |
| 0118 | | Foot | - |
| 0119 |  | Connection piece | $22.12 ApplianceParts Pro |
| 0120 | | Connection piece | $22.12 ApplianceParts Pro |
| 0121 |  | Panel-base | $32.20 ApplianceParts Pro |
| 0122 |  | Screw | $3.95 ApplianceParts Pro |
| 0123 |  | 00604203NLA Hose connection inlet | Discontinued |
| 0123 | | Holder | $165.25 Parts Dr |
| 0124 | | Holder | $165.25 Parts Dr |
| 0126 |  | 00605009NLA Cap | Discontinued |
| 0127 |  | Water Filter | $54.18 Part Advantage |
| 0150 | | 00604203NLA Hose connection inlet | Discontinued |
