Model
Bosch KAN60A40AU/05
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
KAN60A40AU/05
1 diagram103 parts
Parts Sections (1)
Diagram

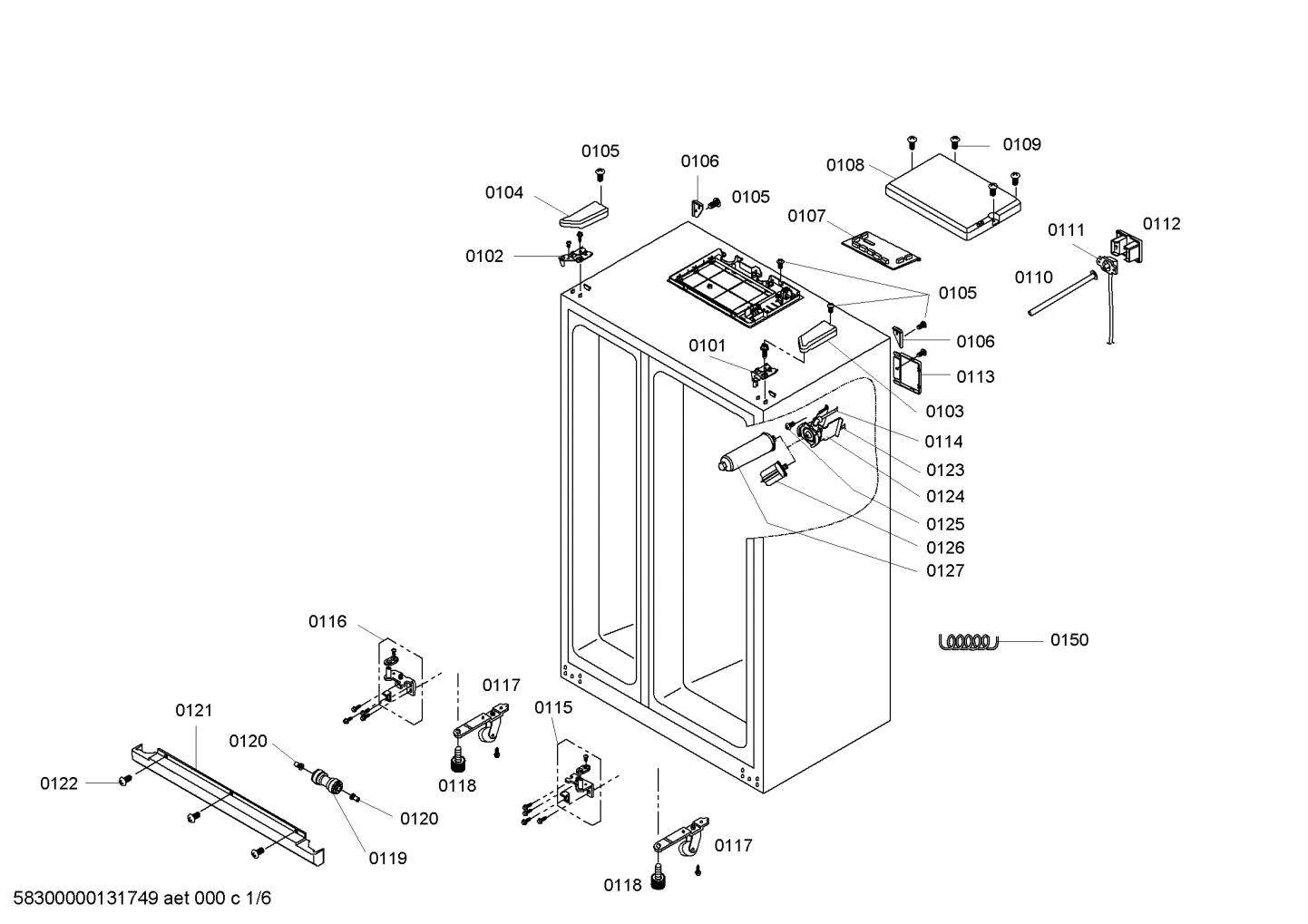

doors & housing, Door & Housing (0101-0620)
Parts in doors & housing, Door & Housing (0101-0620)
129 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | Door bearing | - |
| 0102 |  | Door bearing | - |
| 0103 |  | 00603251NLA Cover | Discontinued |
| 0104 | | Cover | - |
| 0105 |  | Screw | - |
| 0109 | | Screw | - |
| 0111 | | Hose-fill | - |
| 0112 | | Cover | - |
| 0113 | | Cover | $36.11 RepairClinic |
| 0114 |  | Holder | $165.25 Parts Dr |
| 0115 |  | Door bearing | - |
| 0116 |  | Door bearing | $32.20 ApplianceParts Pro |
| 0117 |  | Reel | - |
| 0118 | | Foot | - |
| 0119 |  | Connection piece | $22.12 ApplianceParts Pro |
| 0120 | | Connection piece | $22.12 ApplianceParts Pro |
| 0121 | | Panel-base | - |
| 0122 |  | Screw | $3.95 ApplianceParts Pro |
| 0123 |  | 00604203NLA Hose connection inlet | Discontinued |
| 0123 | | Holder | $165.25 Parts Dr |
| 0124 | | Holder | $165.25 Parts Dr |
| 0126 |  | 00605009NLA Cap | Discontinued |
| 0127 |  | Water Filter | $54.18 Part Advantage |
| 0150 | | 00604203NLA Hose connection inlet | Discontinued |
| 0201 |  | Tray | $35.68 ApplianceParts Pro |
| 0203 |  | Tray | - |

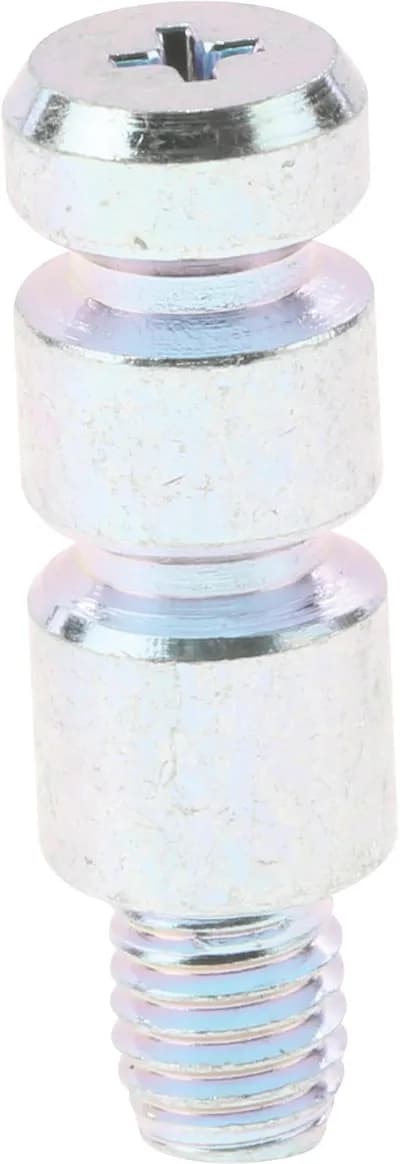

| 0206 |  | Fixture | $19.89 Parts Dr |
| 0207 |  | Screw | $4.74 ApplianceParts Pro |
| 0208 | | Light socket | - |
| 0209 |  | Lamp | - |
| 0210 |  | Cover | - |
| 0211 |  | Panel | - |
| 0212 |  | 00601295NLA Spring | Discontinued |
| 0213 |  | 00498002NLA Dispenser - for a B20CS* series order # 10001527. | Discontinued |
| 0214 |  | Holder | - |
| 0215 |  | Valve-magnet | - |
| 0216 |  | Switch | - |
| 0217 |  | Frame | - |
| 0218 |  | 00601306NLA Key | Discontinued |
| 0219 |  | Grid | - |
| 0220 | | Frame | - |
| 0221 |  | Seal-door | $141.95 PartSelect |
| 0302 |  | Tray | - |
| 0306 |  | Seal-door | - |
| 0313 | | Fixture | $19.89 Parts Dr |
| 0314 | | Screw | $4.74 ApplianceParts Pro |
| 0403 |  | Sensor | - |
| 0404 | | Holder | - |
| 0405 |  | 00620925NLA Fuse-thermal | Discontinued |
| 0406 | | Holder | - |
| 0407 | | Drain gutter | - |
| 0408 | | Screw | - |
| 0409 |  | Holder | - |
| 0410 |  | Damper | - |
| 0411 |  | Fan motor | $66.41 Part Advantage |
| 0412 |  | Cover | - |
| 0413 |  | Fan Motor | - |
| 0414 | | Fan Motor | - |
| 0415 | | Screw | $3.95 ApplianceParts Pro |
| 0416 | | Plug | - |
| 0417 |  | Cover | - |
| 0418 | | Cover | - |
| 0419 |  | Plug | $5.40 ApplianceParts Pro |
| 0420 | | Fixture | - |
| 0421 |  | 00649288NLA Ice maker | Discontinued |
| 0422 | | 00649288NLA Ice maker | Discontinued |
| 0423 | | Rail | - |
| 0424 | | Rail | - |
| 0426 | | 00497880NLA Rail | Discontinued |
| 0427 | | Rail | - |
| 0428 |  | Ice maker | - |
| 0429 |  | Cover | - |
| 0430 | | Reflector | - |
| 0432 |  | Lamp | - |
| 0433 |  | Screw | $6.41 PartSelect |
| 0434 | | Cover | - |
| 0435 | | Screw | - |
| 0436 |  | Sensor | - |
| 0437 | | Cover | - |
| 0438 |  | Switch-door | - |
| 0439 |  | 11047380NLA Glass plate | Discontinued |
| 0442 |  | 00445985NLA Rail | Discontinued |
| 0443 |  | 00445987NLA Rail | Discontinued |
| 0444 |  | 00445996NLA Rail | Discontinued |
| 0445 |  | 00445997NLA Rail | Discontinued |
| 0446 | | Screw | $3.95 ApplianceParts Pro |
| 0501 |  | Frame | - |
| 0502 |  | Fan | - |

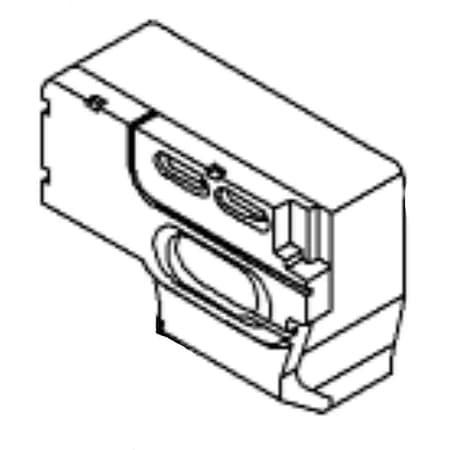

| 0503 |  | Ventilation duct | $180.83 PartSelect |
| 0504 |  | Cover | - |
| 0505 |  | 00601048NLA Sensor | Discontinued |
| 0506 | | Cover | - |
| 0507 | | Light socket | - |
| 0508 | | Lamp | - |
| 0509 | | Screw | $3.95 ApplianceParts Pro |
| 0510 | | Cover | - |
| 0511 | | Screw | $6.41 PartSelect |
| 0512 |  | Switch-door | - |
| 0513 |  | Egg Container | - |
| 0514 |  | 11047379NLA Glass plate | Discontinued |
| 0515 | | 11047378NLA Glass plate | Discontinued |
| 0516 |  | Vegetable container | - |
| 0517 |  | Cover | - |
| 0518 | | 00445985NLA Rail | Discontinued |
| 0519 | | 00445987NLA Rail | Discontinued |
| 0520 | | Screw | $3.95 ApplianceParts Pro |
| 0522 |  | Cover | - |
| 0523 | | 00445996NLA Rail | Discontinued |
| 0524 | | 00445997NLA Rail | Discontinued |
| 0525 |  | Vegetable container | - |
| 0526 |  | 00497859NLA Tank | Discontinued |

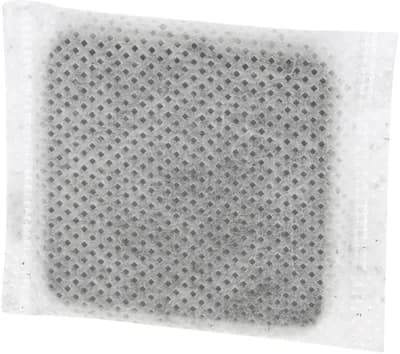

| 0527 |  | Filter | - |
| 0528 | | Cover | - |
| 0530 | | Frame | - |
| 0531 |  | Cover | - |
| 0601 | | Support | - |
| 0603 | | Screw | - |
| 0608 |  | Salver | $64.69 PartSelect |
| 0609 |  | Outlet hose | $7.79 ApplianceParts Pro |

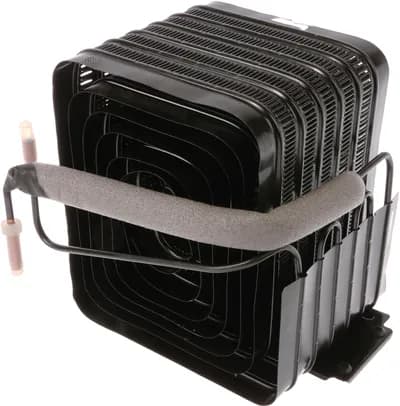

| 0611 |  | Condenser | - |
| 0612 |  | Housing | - |
| 0613 |  | Fan motor | $79.92 Parts Dr |
| 0614 | | Housing | - |
| 0615 | | Housing | - |
| 0616 |  | 00640117NLA Fan blade | Discontinued |
| 0617 | | 00640117NLA Fan blade | Discontinued |
| 0618 |  | Dryer | $77.42 Part Advantage |
| 0619 |  | Back panel | $122.57 PartSelect |
| 0620 | | Screw | - |
