Model

Bosch KGH49A03GB/01

Name: Bosch KGH49A03GB/01
Brand: Bosch
Availability: InStock

Parts Sections (4)

How to find your part

Find part on diagram

Zoom in & tap a highlighted area

Tap "Parts" tab

Switch to the parts list view

See details & prices

Your selected part is highlighted

ModelBosch

KGH49A03GB/01

4 diagrams14 parts

Parts Sections (4)

Diagram

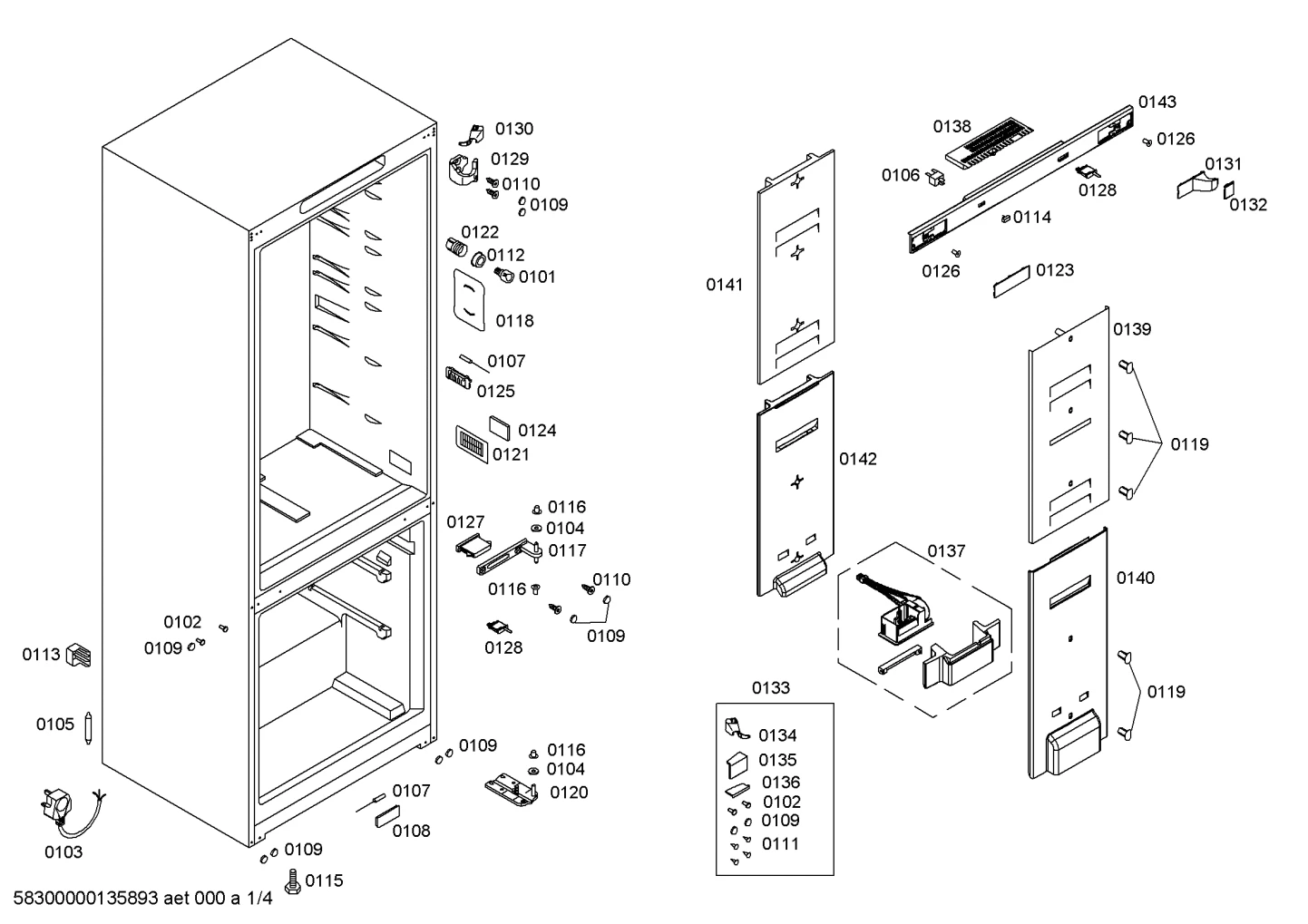

Screws, Lighting (0101-0129)

Parts in Screws, Lighting (0101-0129)

8 parts

Parts list for Screws, Lighting (0101-0129)
Ref	Image	Part / Description	Best Price
0101		00602674 Lamp	-
0106		00168427 Switch	$17.95 Parts Dr
0107		00168766 Sensor-NTC	$71.84 Parts Dr
0108		00169176 Cover	-
0110		00172259 Screw	-
0119		00604917 Screw	$5.40 ApplianceParts Pro
0125	–	10032121 Cover	-
0129		00613181 Door bearing	-
