Model
Bosch KGU3201GB/07
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
KGU3201GB/07
1 diagram10 parts
Parts Sections (1)
Diagram

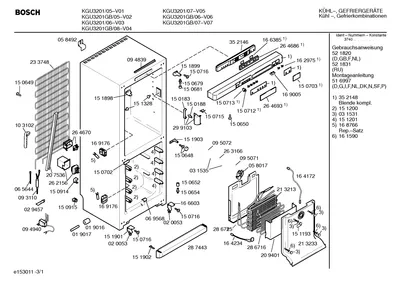

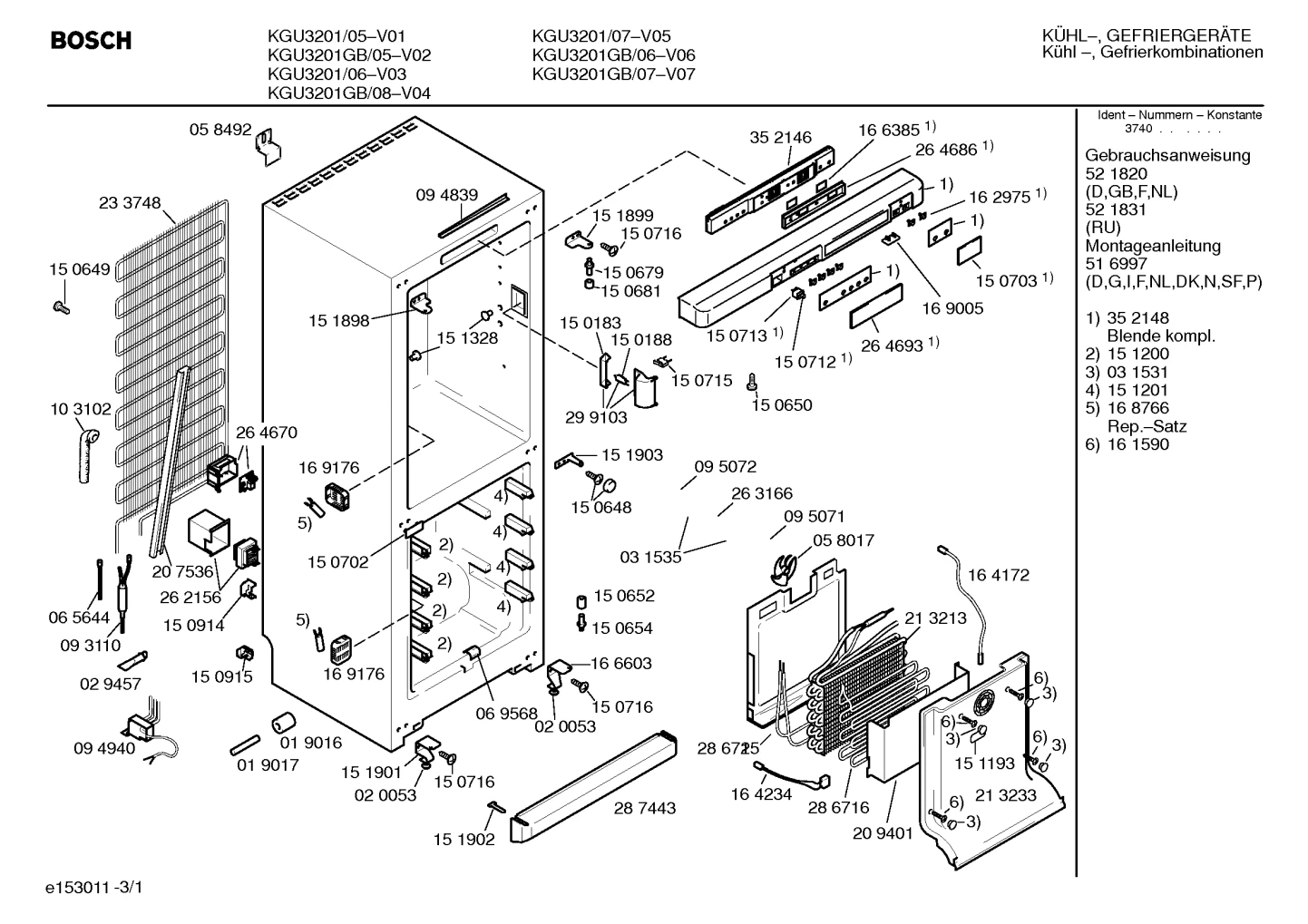

thermostats (0003-0109)
Parts in thermostats (0003-0109)
10 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0003 |  | Screw | $6.48 ApplianceParts Pro |
| 0006 |  | Tube-fill | - |
| 0007 |  | Dryer | $77.42 Part Advantage |
| 0014 |  | Sensor-NTC | - |
| 0015 |  | Cover | - |
| 0019 |  | Screw | - |
| 0030 |  | Halogen Lamp | $29.81 Part Advantage |
| 0095 |  | Relay-starting | - |
| 0100 |  | Capacitor-electrolytic | - |
| 0109 |  | Limiter-temperature | $48.13 Part Advantage |
