Model
Bosch KIL24443GB/02
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
KIL24443GB/02
1 diagram8 parts
Parts Sections (1)
Diagram

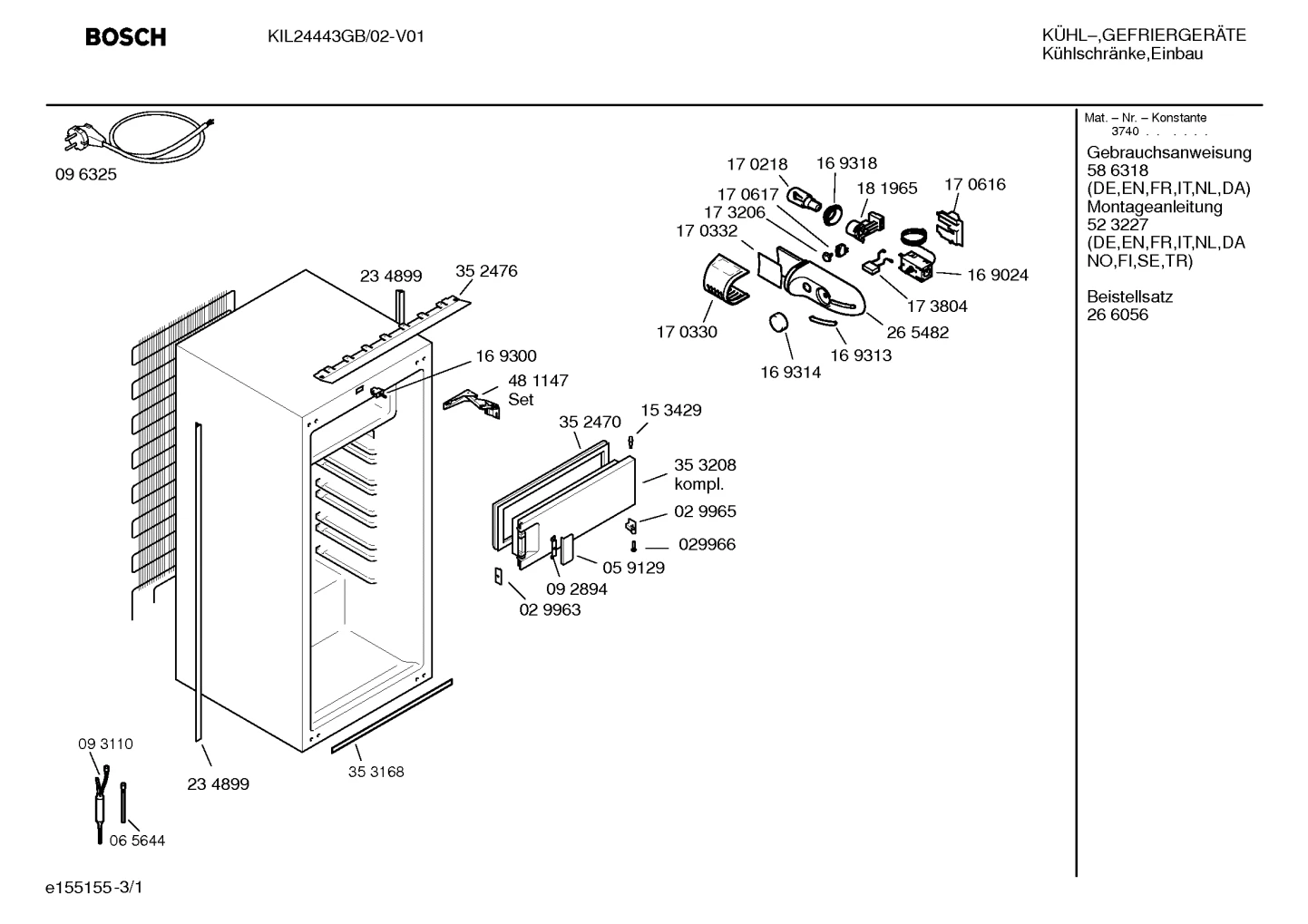

Hinges, Lighting (0004-0199)
Parts in Hinges, Lighting (0004-0199)
8 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0004 |  | Switch | - |
| 0005 |  | Flat hinge | - |
| 0007 |  | Dryer | $77.42 Part Advantage |
| 0008 |  | Tube-fill | - |
| 0024 |  | Lamp | - |
| 0046 |  | Ice cube container - accessory | $11.53 ApplianceParts Pro |
| 0054 |  | Relay-starting | - |
| 0199 |  | Repair-set | - |
