Model
Bosch KIM25473GB/02
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
KIM25473GB/02
1 diagram9 parts
Parts Sections (1)
Diagram

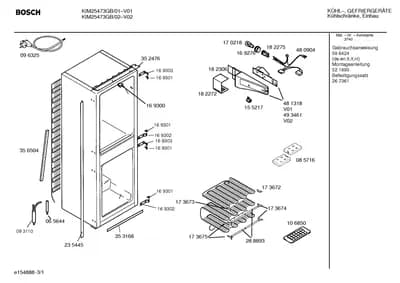

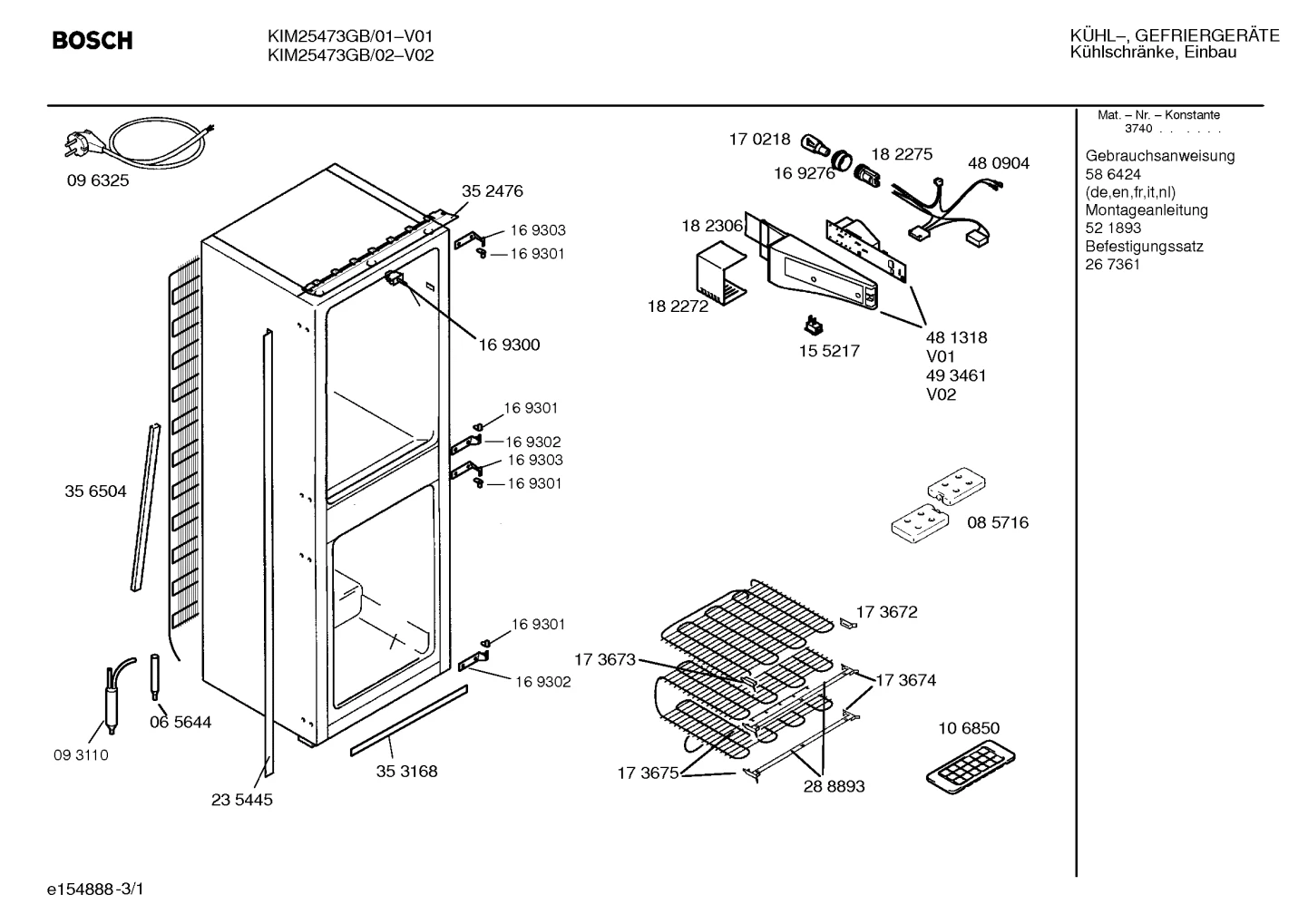

Flaps & Holders, Switches (0003-0050)
Parts in Flaps & Holders, Switches (0003-0050)
10 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0003 |  | Switch | - |
| 0009 |  | Dryer | $77.42 Part Advantage |
| 0010 |  | Tube-fill | - |
| 0013 |  | Switch | - |
| 0016 |  | Lamp | - |
| 0020 |  | Ice Pack | - |
| 0022 |  | Ice cube container - accessory | $11.53 ApplianceParts Pro |
| 0023 |  | Holder | - |
| 0024 | | Holder | - |
| 0050 |  | Capacitor-electrolytic | - |
