Model
Bosch KSU40660NE/04
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
KSU40660NE/04
3 diagrams45 parts
Parts Sections (3)
Diagram

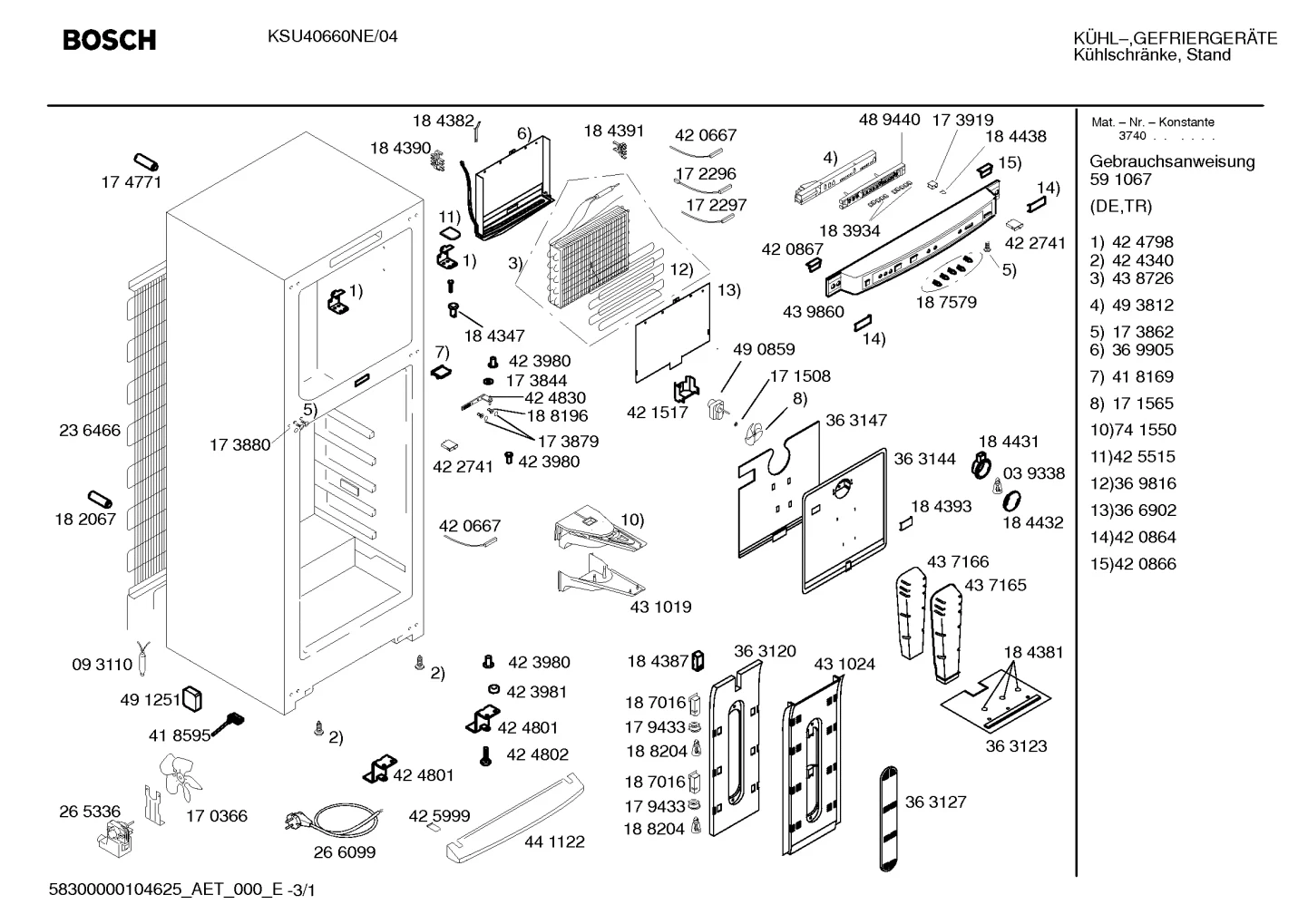

Lighting, Seals & Gaskets (0010-1290)
Parts in Lighting, Seals & Gaskets (0010-1290)
45 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0010 |  | Lamp | - |
| 0020 |  | Tube-fill | - |

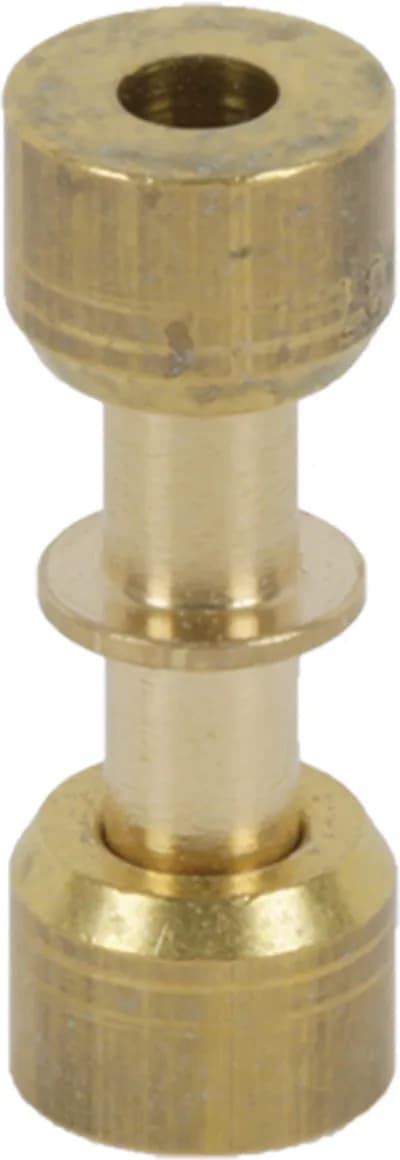

| 0040 |  | Pipe connection piece | $14.95 ApplianceParts Pro |
| 0050 |  | Pipe connection piece | - |
| 0060 |  | 00065648NLA Pipe connection piece | Discontinued |
| 0070 |  | Pipe connection piece | $14.95 ApplianceParts Pro |
| 0100 |  | Pipe connection piece | - |
| 0110 |  | Pipe connection piece | - |
| 0120 |  | Pipe connection piece | $18.95 ApplianceParts Pro |
| 0130 |  | Pipe connection piece | $20.22 Parts Dr |
| 0140 |  | Pipe connection piece | - |
| 0150 |  | Pipe connection piece | $18.95 ApplianceParts Pro |
| 0160 |  | Pipe connection piece | - |
| 0170 |  | Pipe connection piece | - |
| 0180 |  | Pipe connection piece | - |
| 0190 |  | Latch | - |
| 0199 |  | Sealing | - |
| 0200 |  | Pipe connection piece | - |
| 0230 |  | Pipe connection piece | - |
| 0240 |  | Pipe connection piece | - |
| 0250 |  | Pipe connection piece | - |
| 0280 |  | Pipe connection piece | - |
| 0300 |  | Pipe connection piece | - |
| 0310 |  | Pipe connection piece | - |
| 0320 |  | Pipe connection piece | - |
| 0350 |  | Pipe connection piece | - |
| 0360 |  | Pipe connection piece | - |
| 0380 |  | Pipe connection piece | - |
| 0490 |  | Dryer | $77.42 Part Advantage |
| 0510 |  | Latch | - |
| 0520 |  | Latch | - |
| 0580 |  | Pipe connection piece | $14.95 ApplianceParts Pro |
| 0590 |  | Pipe connection piece | - |
| 0610 |  | Pipe connection piece | - |
| 0620 |  | Pipe connection piece | - |
| 0630 |  | Pipe connection piece | - |
| 0640 |  | Pipe connection piece | - |
| 0680 |  | Pipe connection piece | - |
| 1010 |  | Push button cap | - |
| 1020 |  | Light socket | $2.88 RepairClinic |
| 1050 |  | Reel | - |
| 1060 |  | Screw | - |
| 1150 |  | Refrigerant | - |
| 1280 |  | Sensor-NTC | - |
| 1290 |  | Stop | $14.29 Parts Dr |
