Model
Bosch KSU49630NE/02
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
KSU49630NE/02
3 diagrams45 parts
Parts Sections (3)

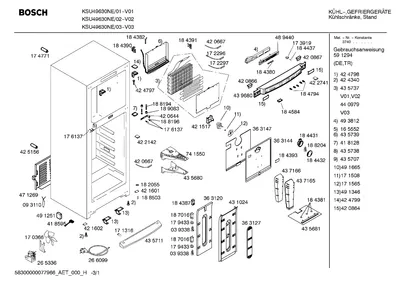

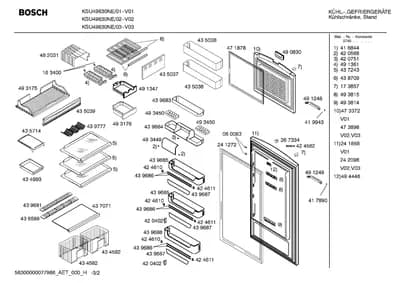

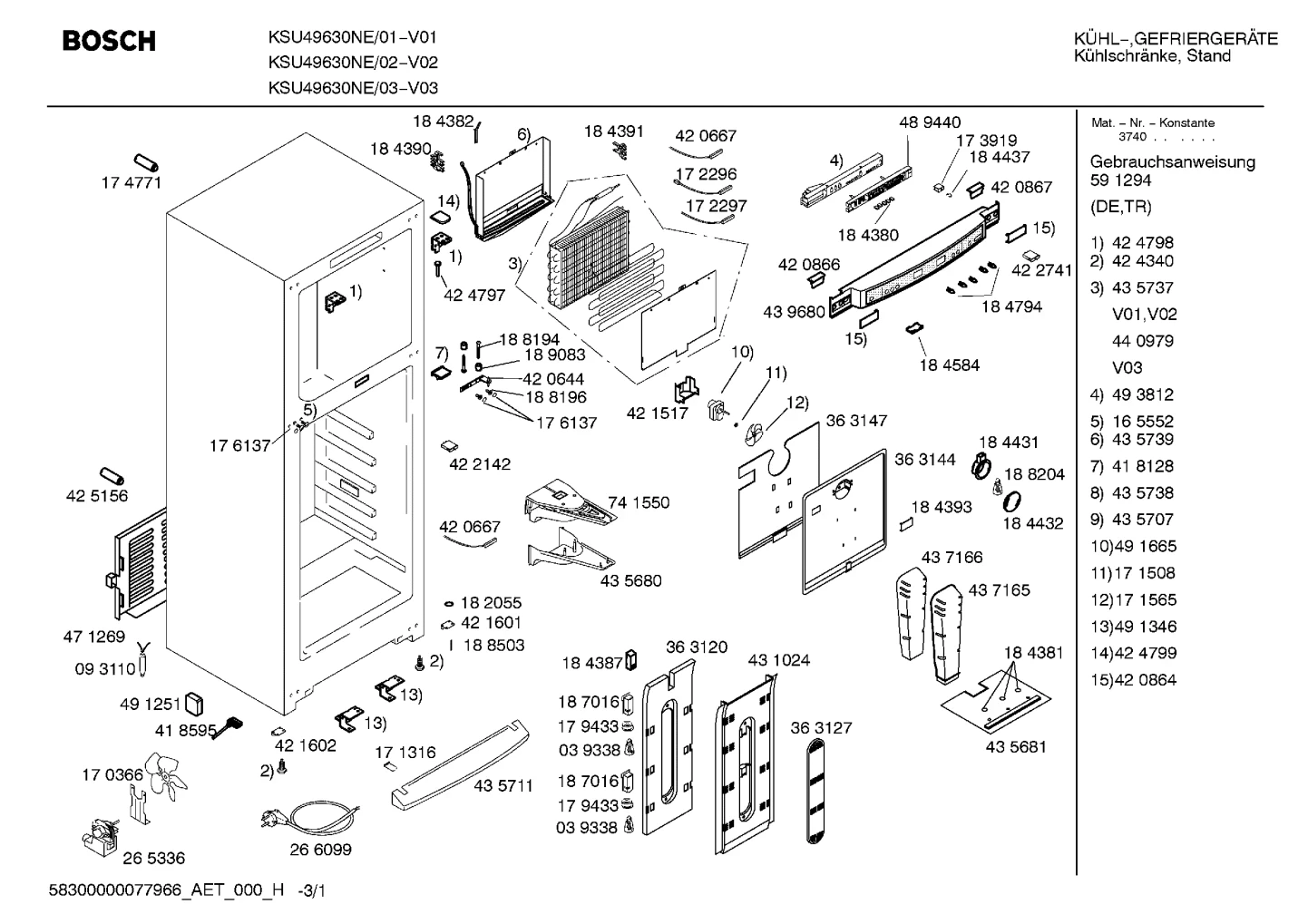

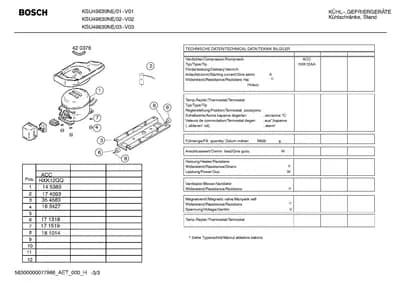

Diagram
Lighting, Seals & Gaskets (0010-1350)
Parts in Lighting, Seals & Gaskets (0010-1350)
45 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0010 |  | Lamp | - |
| 0020 |  | Cover | - |
| 0030 |  | Tube-fill | - |
| 0050 |  | Pipe connection piece | $14.95 ApplianceParts Pro |
| 0060 |  | Pipe connection piece | - |
| 0070 |  | 00065648NLA Pipe connection piece | Discontinued |
| 0080 |  | Pipe connection piece | $14.95 ApplianceParts Pro |
| 0110 |  | Pipe connection piece | - |
| 0120 |  | Pipe connection piece | - |
| 0130 |  | Pipe connection piece | $18.95 ApplianceParts Pro |
| 0140 |  | Pipe connection piece | $20.22 Parts Dr |
| 0150 |  | Pipe connection piece | - |
| 0160 |  | Pipe connection piece | $18.95 ApplianceParts Pro |
| 0170 |  | Pipe connection piece | - |
| 0180 |  | Pipe connection piece | - |
| 0190 |  | Pipe connection piece | - |
| 0199 |  | Sealing | - |
| 0200 |  | Latch | - |
| 0210 |  | Pipe connection piece | - |
| 0240 |  | Pipe connection piece | - |
| 0250 |  | Pipe connection piece | - |
| 0260 |  | Pipe connection piece | - |
| 0290 |  | Pipe connection piece | - |
| 0310 |  | Pipe connection piece | - |
| 0320 |  | Pipe connection piece | - |
| 0330 |  | Pipe connection piece | - |
| 0360 |  | Pipe connection piece | - |
| 0370 |  | Pipe connection piece | - |
| 0390 |  | Pipe connection piece | - |
| 0500 |  | Dryer | $77.42 Part Advantage |
| 0530 |  | Latch | - |
| 0540 |  | Latch | - |
| 0600 |  | Pipe connection piece | $14.95 ApplianceParts Pro |
| 0610 |  | Pipe connection piece | - |
| 0630 |  | Pipe connection piece | - |
| 0640 |  | Pipe connection piece | - |
| 0650 |  | Pipe connection piece | - |
| 0660 |  | Pipe connection piece | - |
| 0710 |  | Pipe connection piece | - |
| 0890 |  | Capacitor-electrolytic | - |
| 1080 |  | Light socket | $2.88 RepairClinic |
| 1100 |  | Screw | - |
| 1220 |  | Refrigerant | - |
| 1340 |  | Sensor-NTC | - |
| 1350 |  | Stop | $14.29 Parts Dr |
