Model
Bosch KSU49630NE/03
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
KSU49630NE/03
3 diagrams16 parts
Parts Sections (3)
Diagram

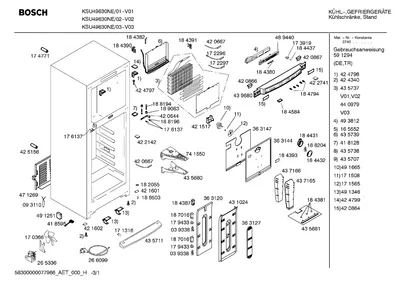

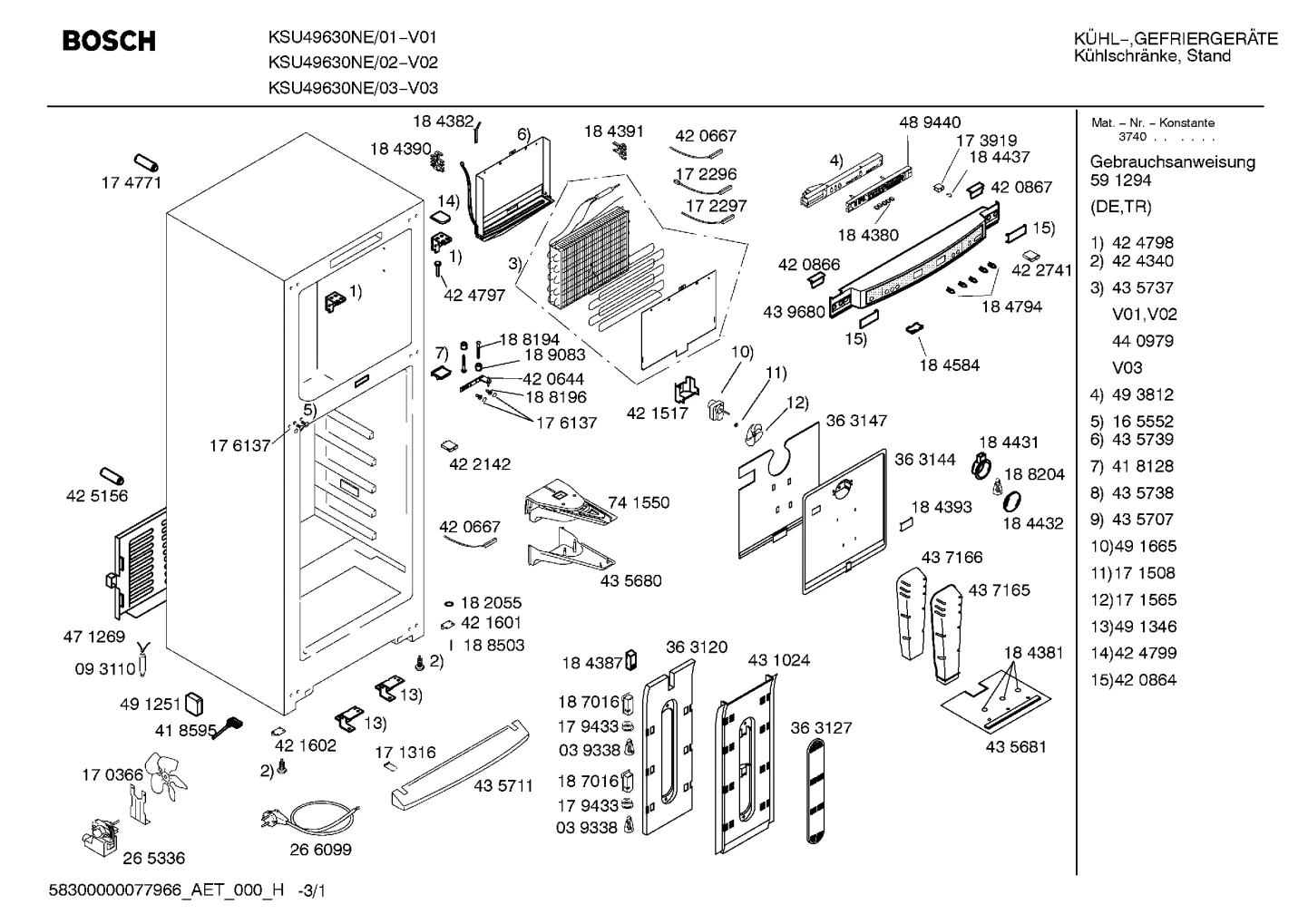

Lighting, Seals & Gaskets (0040-1510)
Parts in Lighting, Seals & Gaskets (0040-1510)
16 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0040 |  | Lamp | - |
| 0050 |  | Dryer | $77.42 Part Advantage |
| 0060 |  | Refrigerant | - |
| 0080 |  | Cover | - |
| 0199 |  | Sealing | - |
| 0280 |  | Pipe connection piece | - |
| 0300 |  | Pipe connection piece | - |
| 0310 |  | Pipe connection piece | - |
| 0320 |  | Pipe connection piece | - |
| 0330 |  | Pipe connection piece | - |
| 0340 |  | Pipe connection piece | - |
| 0520 |  | Light socket | $2.88 RepairClinic |
| 0530 |  | Screw | - |
| 0730 |  | Sensor-NTC | - |
| 1150 |  | Stop | $14.29 Parts Dr |
| 1510 |  | Cover | - |
