Model
Bosch KSV29650/01
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
KSV29650/01
3 diagrams9 parts
Parts Sections (3)
Diagram

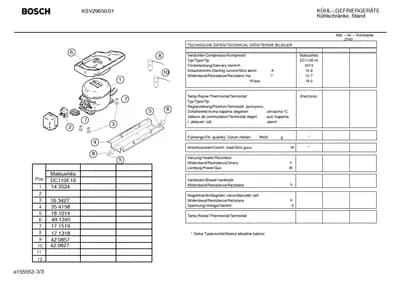

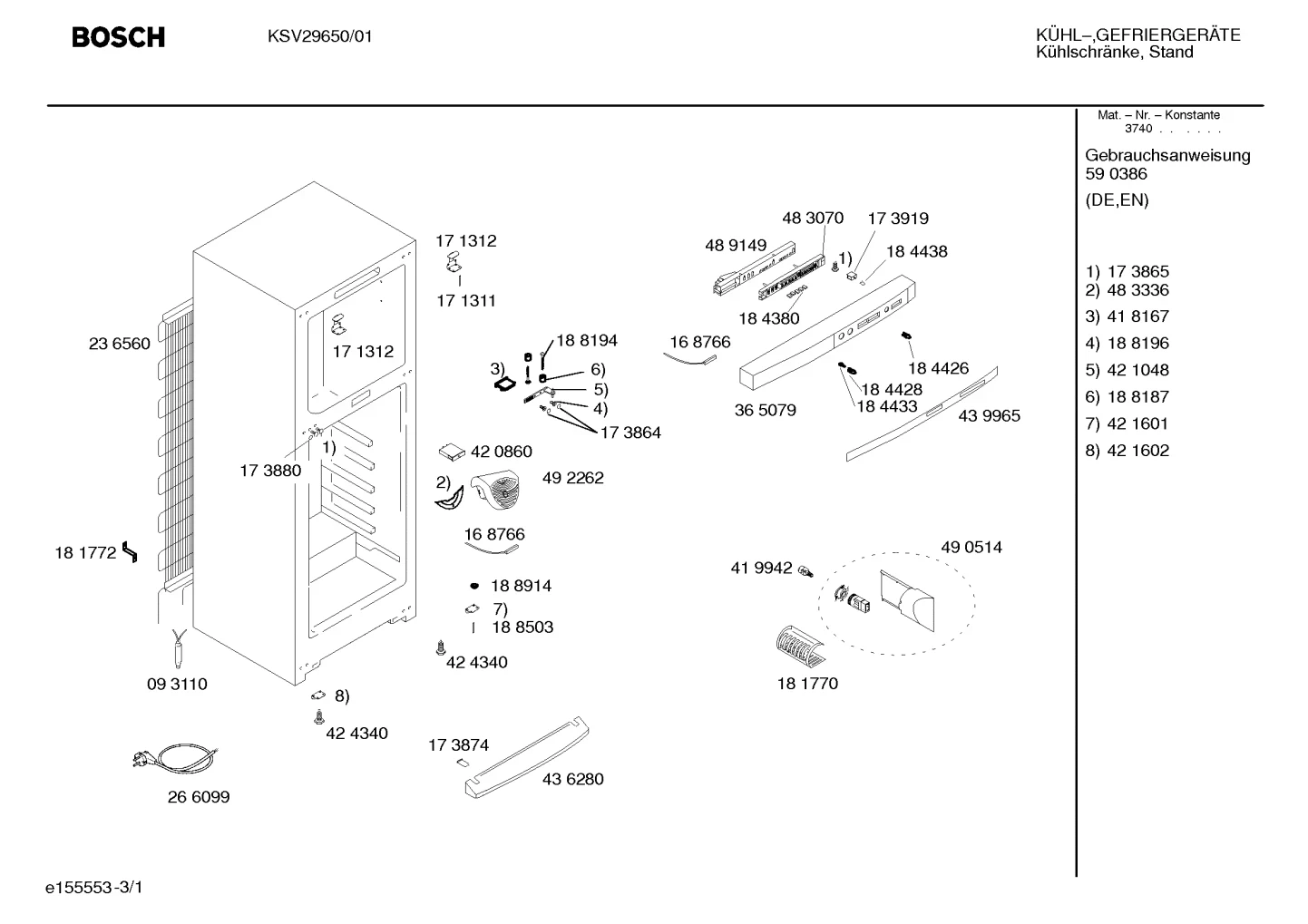

Screws, Lighting (0001-0199)
Parts in Screws, Lighting (0001-0199)
10 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0001 |  | Sensor-NTC | $71.84 Parts Dr |
| 0005 |  | Stop | $14.29 Parts Dr |
| 0015 |  | Dryer | $77.42 Part Advantage |
| 0027 |  | Screw Hole Cover Set | - |
| 0038 |  | Push button cap | - |
| 0039 |  | Light socket | $2.88 RepairClinic |
| 0040 |  | Reel | - |
| 0041 |  | Screw | - |
| 0042 | | Screw | - |
| 0199 |  | Sealing | - |
