Model
Bosch MCM5081GB/02
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
MCM5081GB/02
3 diagrams46 parts
Parts Sections (3)
Diagram

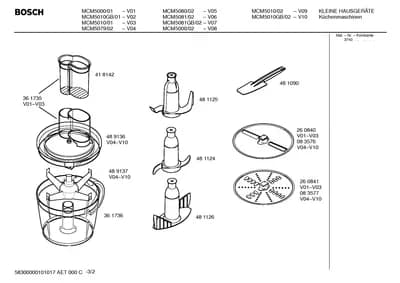

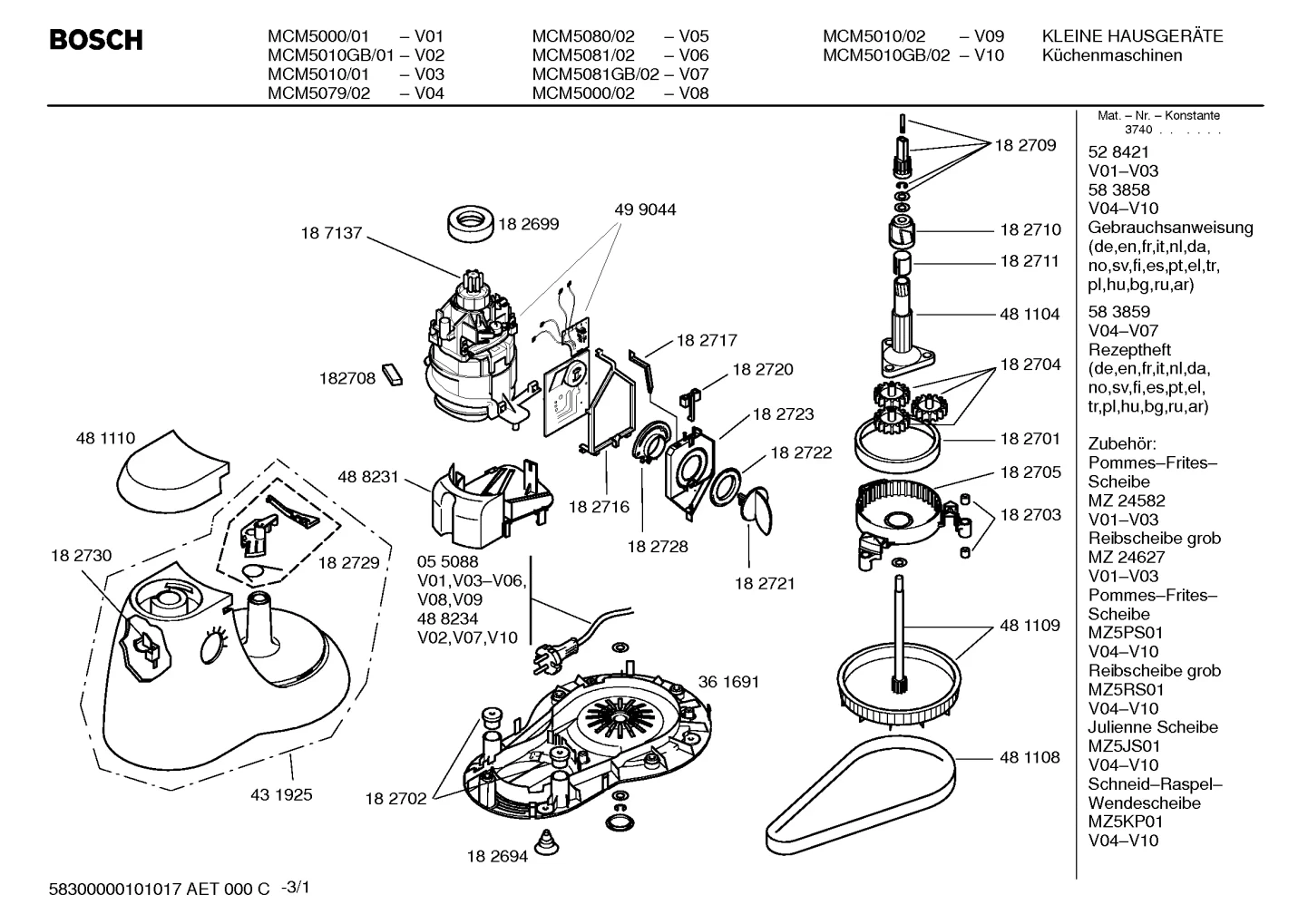

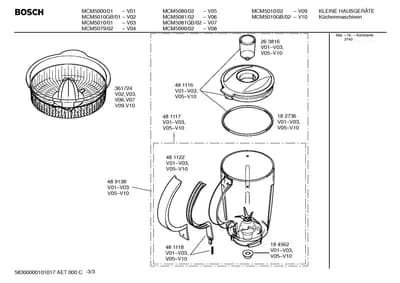

handles knobs , Lids & Covers (0002-0060)
Parts in handles knobs , Lids & Covers (0002-0060)
46 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0002 |  | Mounting Attachment | - |
| 0003 |  | Coupling | - |
| 0004 |  | Slide sheet | - |
| 0005 |  | Drive shaft | - |
| 0006 |  | Gear | - |
| 0007 | | Ring | - |
| 0008 | | Toothed rim | - |
| 0009 | | Damper | - |
| 0010 |  | Drive shaft | - |
| 0011 |  | Belt-drive | - |
| 0013 | | 00182708NLA Carbon-brush | Discontinued |
| 0016 | | Ring | - |
| 0017 | | Holder | - |
| 0019 | | Plate | - |
| 0020 | | Lever | - |
| 0021 | | Lever | - |
| 0022 | | Support | - |
| 0023 | | Ring | - |
| 0024 | | Knob | - |
| 0025 | | Case-bottom | - |
| 0026 | | Damper | - |
| 0027 | | Foot | - |
| 0030 | | Slide | - |
| 0032 | | Lock-mechanical | - |
| 0033 |  | Cover | - |
| 0034 |  | Scraper | - |
| 0035 |  | Knife | - |
| 0036 |  | Kneading hook | - |
| 0037 |  | Mixer | - |
| 0038 |  | Mug | - |
| 0039 |  | Slide | - |
| 0040 | | Handle-strip | - |
| 0041 |  | Lid | - |
| 0042 |  | Seal-lid | - |
| 0043 |  | Funnel | $12.22 RepairClinic |
| 0044 |  | Bowl | - |
| 0049 |  | Coupling | - |
| 0050 |  | Coupling | - |
| 0051 |  | Citrus Press | - |
| 0052 |  | Slicer | - |
| 0053 |  | Disc-shredder accessory | - |
| 0054 | | Housing | - |
| 0057 |  | Plug | $25.59 PartSelect |
| 0058 |  | Bowl Cover | $24.64 ApplianceParts Pro |
| 0059 |  | Support | - |
| 0060 |  | Liquidizer-blender | - |
