Model
Bosch MUM4405CH/03
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
MUM4405CH/03
3 diagrams40 parts
Parts Sections (3)
Diagram

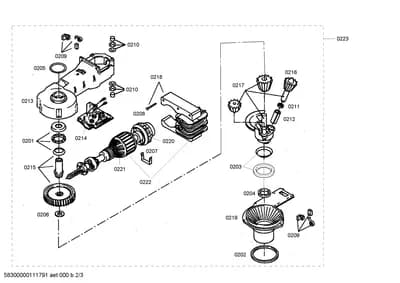

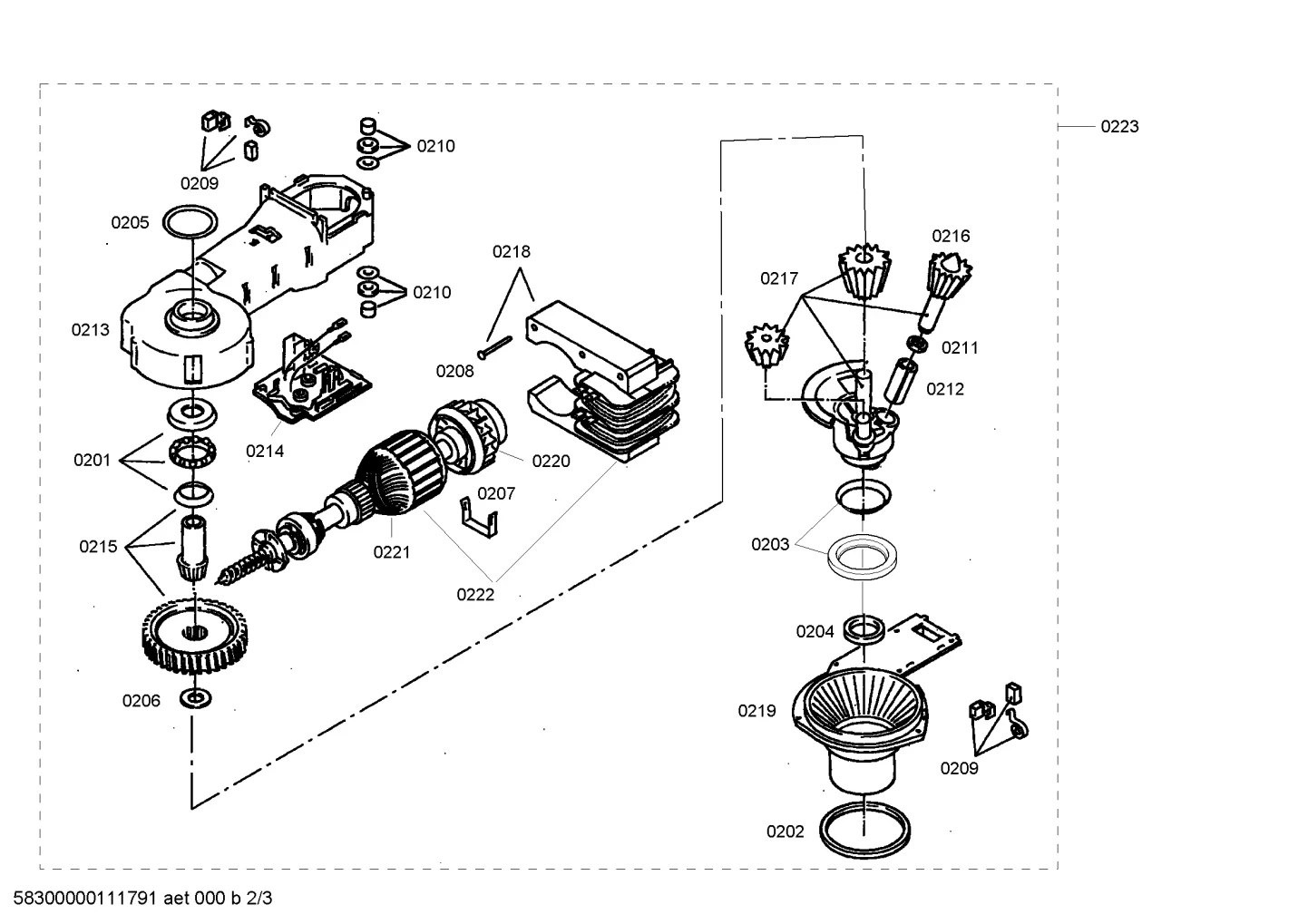

motors, Door & Housing (0201-0222)
Parts in motors, Door & Housing (0201-0222)
21 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0201 |  | Ball bearing | - |
| 0202 |  | Sealing | - |
| 0203 |  | Ring | - |
| 0204 |  | Sealing | - |
| 0205 |  | Sealing | - |
| 0206 |  | Disc | - |
| 0207 |  | 00029461NLA Bracket | Discontinued |
| 0208 | | Rivet | - |
| 0209 |  | Carbon-brush | - |
| 0210 |  | Installation set | - |
| 0211 |  | Sealing | - |
| 0212 |  | Slide sheet | - |
| 0213 | | Frame | - |
| 0215 |  | Gear / Spur Gear | - |
| 0216 |  | Taper gear | - |
| 0217 |  | Drive | - |
| 0218 |  | Motor | - |
| 0219 | | Housing | - |
| 0220 |  | Wheel | - |
| 0221 | | Motor | - |
| 0222 | | Motor | - |
