Model
Bosch MUM4435JP/02
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
MUM4435JP/02
5 diagrams64 parts
Parts Sections (5)
Diagram

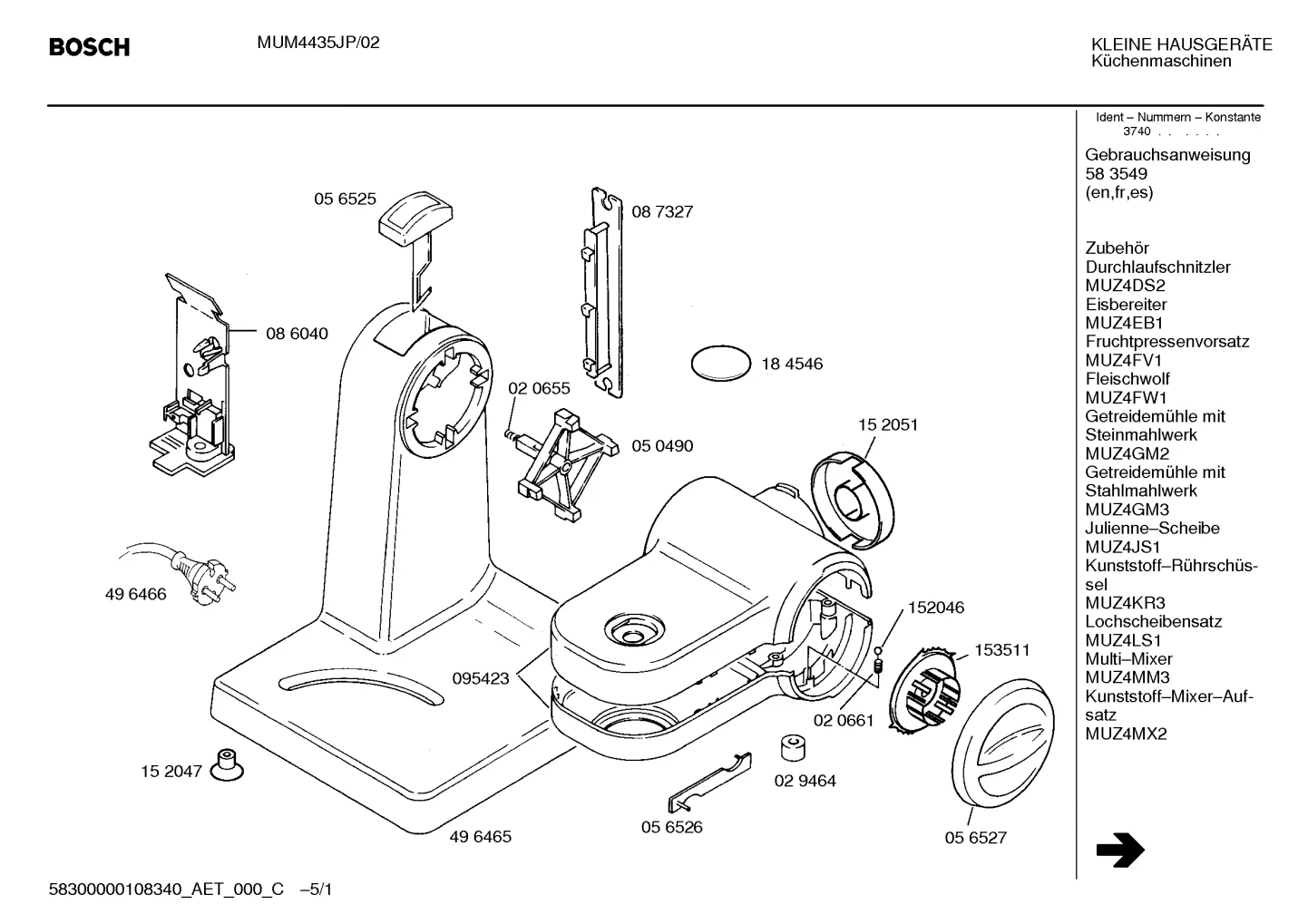

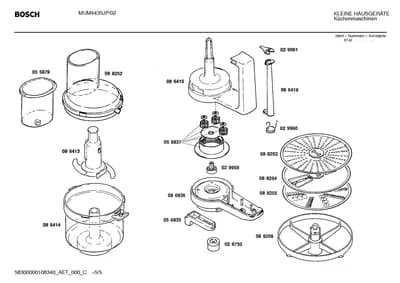

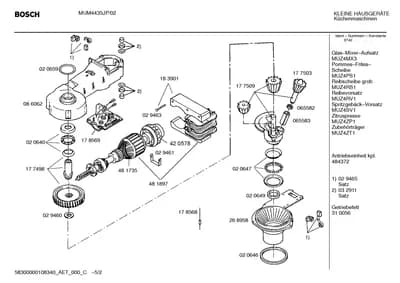

motors, Door & Housing (0002-0118)
Parts in motors, Door & Housing (0002-0118)
68 parts

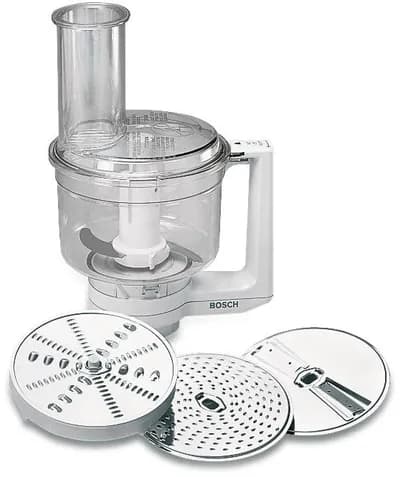

| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0002 |  | Terminal | - |
| 0004 |  | Rubber foot | - |
| 0005 | | Key | $8.74 Parts Dr |
| 0006 | | Holder | - |
| 0007 |  | Spring | - |
| 0008 |  | Housing | - |
| 0009 |  | Holder | - |
| 0010 |  | Rail | - |
| 0011 | | Rubber foot | - |
| 0012 | | 00151744NLA Spring | Discontinued |
| 0013 |  | Ball | - |
| 0014 |  | Cover | - |
| 0015 |  | Cover | - |
| 0016 |  | Plate | - |
| 0017 | | Knob | - |
| 0018 |  | Rubber foot | - |
| 0019 |  | Sealing | - |
| 0020 | | Housing | - |
| 0021 |  | Ball bearing | - |
| 0022 |  | Gear / Spur Gear | - |
| 0023 |  | Disc | - |
| 0024 | | PC board | - |
| 0025 |  | Motor | - |
| 0026 | | Rivet | - |
| 0027 | | 00029461NLA Bracket | Discontinued |
| 0028 | | Motor | - |
| 0029 | | Motor | - |
| 0030 |  | Drive | - |
| 0031 |  | Ring | - |
| 0032 |  | Sealing | - |
| 0033 | | Housing | - |
| 0034 |  | Taper gear | - |
| 0035 |  | Sealing | - |
| 0036 |  | Slide sheet | - |
| 0037 |  | Sealing | - |
| 0039 |  | Carbon-brush | - |
| 0040 |  | Installation set | - |
| 0041 | | Lubricant | - |
| 0042 |  | Whisk | - |
| 0043 |  | Whisk | - |
| 0044 |  | Mixing bowl | - |
| 0045 |  | Kneading Hook | - |
| 0046 |  | Deflector | $16.16 Parts Dr |
| 0066 | | Drive | - |
| 0067 | | Lid | - |
| 0070 | | Fuse-thermal | - |
| 0071 | | Fuse-thermal | - |
| 0075 |  | Wheel | - |
| 0076 |  | Bearing | - |
| 0100 |  | Drive coupling | - |
| 0101 |  | Gear | - |
| 0102 | | 00029960NLA Spring | Discontinued |
| 0103 | | 00029961NLA Lever | Discontinued |
| 0104 |  | Plunger | - |
| 0105 | | Slide | - |
| 0106 | | 00056837NLA Toothed rim | Discontinued |
| 0107 |  | Knife | - |
| 0108 |  | Bowl | $29.23 ApplianceParts Pro |
| 0109 | | Case-upper part | - |
| 0110 | | Spacer | - |
| 0111 | | 00086836NLA Housing part | Discontinued |
| 0112 |  | Case-upper part | - |
| 0113 |  | Grater | - |
| 0114 |  | Cutting disc accessory | - |
| 0115 |  | Shredder | - |
| 0116 |  | Disc Holder / Driver | - |
| 0117 | | Instruction manual | - |
| 0118 |  | Kitchen accessory | - |
