Model
Bosch MUM4655/01
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
MUM4655/01
6 diagrams79 parts
Parts Sections (6)
Diagram
Door & Housing, motors (0002-0093)
Parts in Door & Housing, motors (0002-0093)
83 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0002 |  | Terminal | - |
| 0003 |  | Stator | - |
| 0004 |  | Rubber foot | - |
| 0006 | | Panel | - |
| 0007 |  | Spring | - |
| 0008 |  | Housing | - |
| 0009 |  | Holder | - |
| 0010 |  | Rail | - |
| 0011 | | Rubber foot | - |
| 0012 | | 00151744NLA Spring | Discontinued |
| 0013 |  | Ball | - |
| 0014 |  | Cover | - |
| 0015 |  | Cover | - |
| 0016 |  | Plate | - |
| 0017 |  | Knob | - |
| 0019 |  | Sealing | - |
| 0020 | | Frame | - |
| 0021 |  | Ball bearing | - |
| 0022 |  | Gear / Spur Gear | - |
| 0023 |  | Disc | - |
| 0025 |  | Motor | - |
| 0026 | | Rivet | - |
| 0027 | | 00029461NLA Bracket | Discontinued |
| 0028 | | Motor | - |
| 0029 | | Motor | - |
| 0030 |  | Drive | - |
| 0031 |  | Ring | - |
| 0032 |  | Sealing | - |
| 0033 | | Housing | - |
| 0034 |  | Taper gear | - |
| 0035 |  | Sealing | - |
| 0036 |  | Slide sheet | - |
| 0037 |  | Sealing | - |
| 0039 |  | Carbon-brush | - |
| 0040 |  | Installation set | - |
| 0041 | | Lubricant | - |
| 0042 |  | Whisk | - |
| 0043 |  | Whisk | - |
| 0044 |  | Mixing bowl | - |
| 0045 |  | Kneading Hook | - |
| 0046 |  | Deflector | $16.16 Parts Dr |
| 0047 |  | Lid | - |
| 0048 | | Permanent magnet | - |
| 0049 |  | Accessory Holder | - |
| 0052 | | Grid | - |
| 0053 |  | Rubber foot | - |
| 0054 | | Support | - |
| 0055 |  | Plunger | - |
| 0056 |  | Coupling | - |
| 0057 |  | Housing | - |
| 0058 |  | Schnitzler Wing | - |
| 0059 | | Housing | - |
| 0060 |  | Grater | - |
| 0061 |  | Slicer | - |
| 0062 |  | Disc-shredder accessory | - |
| 0063 |  | Sealing | $12.56 Part Advantage |
| 0064 | | Spring | - |
| 0065 | | 00025987NLA Disc | Discontinued |
| 0066 |  | Drive coupling | - |
| 0067 |  | Blender Base | - |
| 0068 |  | Funnel | $12.22 RepairClinic |
| 0069 |  | Blender Lid | - |

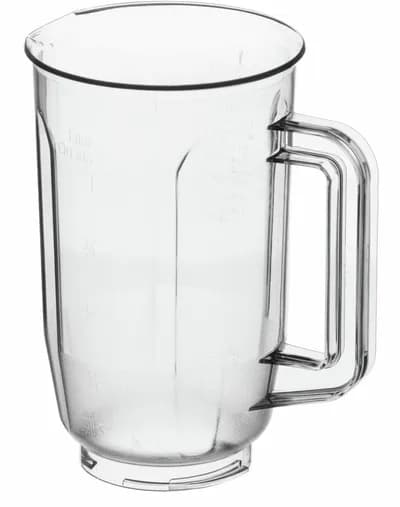

| 0070 |  | Blender Jar | - |
| 0071 |  | Base | - |
| 0072 |  | Pusher | - |
| 0073 |  | Filling tray | $15.36 PartSelect |
| 0075 |  | Foot | - |
| 0076 |  | Housing | - |
| 0077 |  | Sealing | - |
| 0078 |  | Coupling | - |
| 0079 |  | Worm Gear | - |
| 0080 |  | Blade | - |
| 0081 |  | Disc | - |
| 0082 |  | Disc | - |
| 0084 |  | Threaded ring | - |
| 0085 |  | Slicer | - |

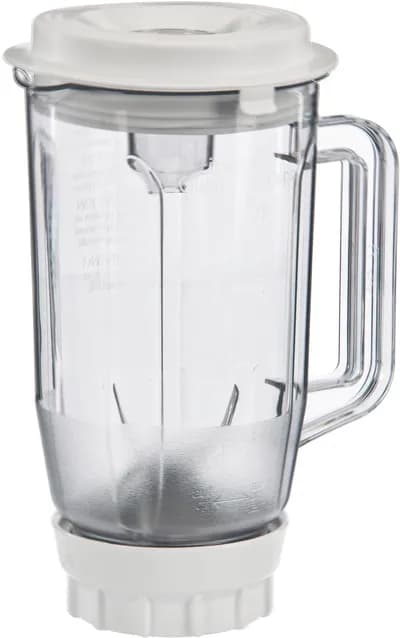

| 0086 |  | Blender attachment accessory | - |

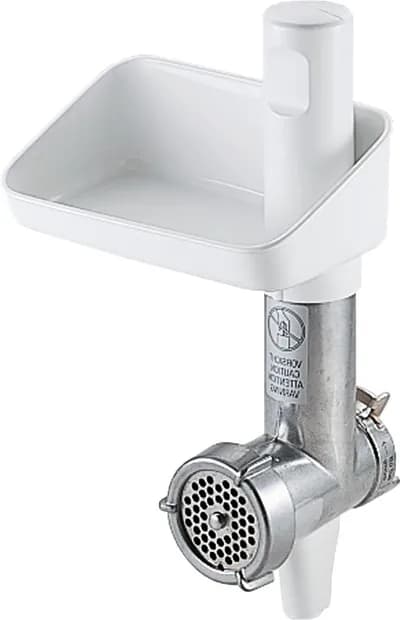

| 0087 |  | Meat mincer | - |
| 0088 | | Key | - |
| 0090 |  | Bushing | - |
| 0091 |  | Wheel | - |
| 0092 |  | Bearing | - |
| 0093 |  | Guide | - |
