Model
Bosch MUM4700/01
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
MUM4700/01
3 diagrams49 parts
Parts Sections (3)
Diagram

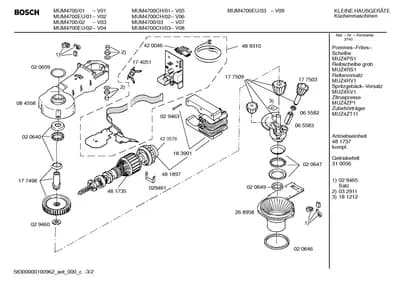

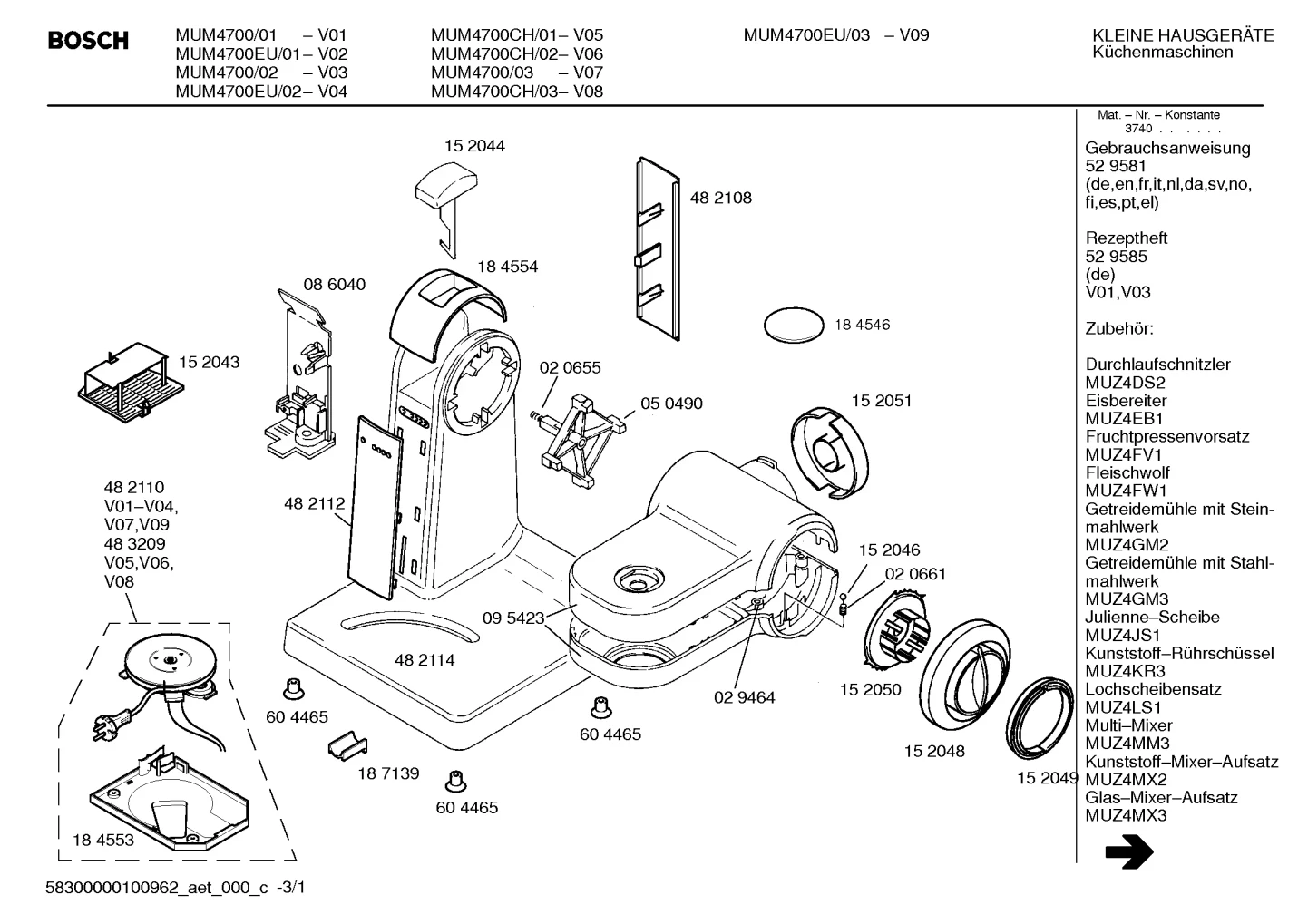

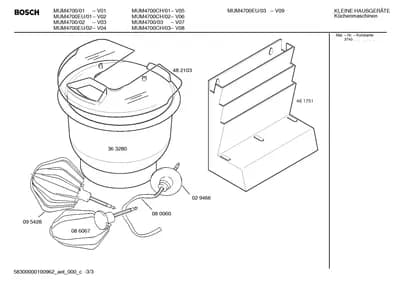

Door & Housing, motors (0002-0061)
Parts in Door & Housing, motors (0002-0061)
52 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0002 |  | Terminal | - |
| 0003 |  | Stator | - |
| 0004 |  | Rubber foot | - |
| 0006 | | Panel | - |
| 0007 |  | Spring | - |
| 0008 |  | Housing | - |
| 0009 |  | Holder | - |
| 0011 | | Rubber foot | - |
| 0012 | | 00151744NLA Spring | Discontinued |
| 0013 |  | Ball | - |
| 0014 |  | Cover | - |
| 0015 |  | Cover | - |
| 0016 |  | Plate | - |
| 0017 |  | Knob | - |
| 0019 |  | Sealing | - |
| 0020 | | Frame | - |
| 0021 |  | Ball bearing | - |
| 0022 |  | Gear / Spur Gear | - |
| 0023 |  | Disc | - |
| 0025 |  | Motor | - |
| 0026 | | Rivet | - |
| 0027 | | 00029461NLA Bracket | Discontinued |
| 0028 | | Motor | - |
| 0029 | | Motor | - |
| 0030 |  | Drive | - |
| 0031 |  | Ring | - |
| 0032 |  | Sealing | - |
| 0033 | | Housing | - |
| 0034 |  | Taper gear | - |
| 0035 |  | Sealing | - |
| 0036 |  | Slide sheet | - |
| 0037 |  | Sealing | - |
| 0039 |  | Carbon-brush | - |
| 0040 |  | Installation set | - |
| 0041 | | Lubricant | - |
| 0042 |  | Whisk | - |
| 0043 |  | Whisk | - |
| 0044 |  | Bowl | - |
| 0045 |  | Kneading Hook | - |
| 0046 |  | Deflector | $16.16 Parts Dr |
| 0047 |  | Lid | - |
| 0048 | | Permanent magnet | - |

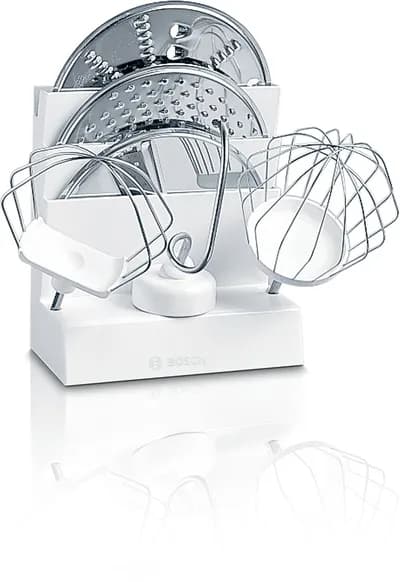

| 0049 |  | Accessory Holder | - |
| 0052 | | Grid | - |
| 0053 |  | Rubber foot | - |
| 0054 | | Support | - |
| 0056 |  | Lining | - |
| 0057 | | Spring | - |
| 0058 |  | Key | - |
| 0059 | | Guide | - |
| 0060 | | Lightguide | - |
| 0061 |  | Wheel | - |
