Model
Bosch MUM6000(00)
Parts Sections (2)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
MUM6000(00)
2 diagrams22 parts
Parts Sections (2)
Diagram

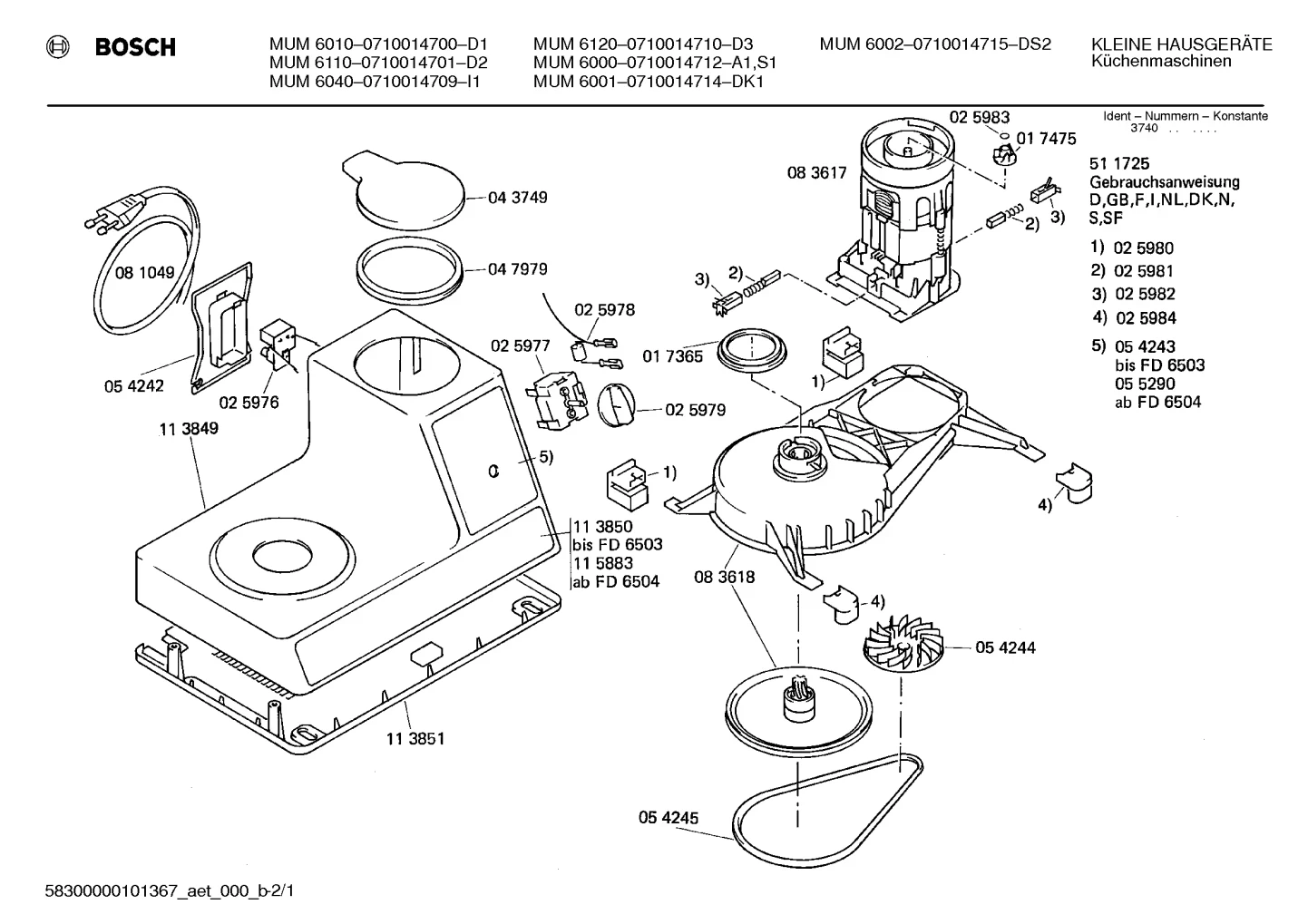

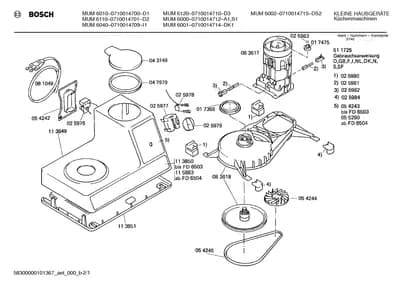

Lids & Covers (0002-0040)
Parts in Lids & Covers (0002-0040)
22 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0002 |  | Drive coupling | - |
| 0003 |  | 00025976NLA PC board | Discontinued |
| 0004 | | Switch | - |
| 0008 |  | Carbon-brush | - |
| 0009 | | 00025982NLA Carbon-brush | Discontinued |
| 0010 | | 00025983NLA Cover | Discontinued |
| 0011 |  | Foot | $17.91 PartSelect |
| 0013 |  | Sealing | - |
| 0016 |  | Impeller jug | - |
| 0017 |  | Belt-drive | $29.70 ApplianceParts Pro |
| 0018 | | Sign | - |
| 0021 |  | Drive | - |
| 0030 |  | Bowl Lid | $18.95 ApplianceParts Pro |
| 0031 |  | Lid | $20.93 Part Advantage |
| 0033 |  | Screw | - |
| 0034 |  | Gear / spur gear | $22.23 ApplianceParts Pro |
| 0035 |  | Bowl | $41.44 Part Advantage |
| 0036 |  | Drive shaft | $76.30 ApplianceParts Pro |
| 0037 |  | Deflector | - |
| 0038 |  | Kneading hook | - |
| 0039 |  | Drive Coupling | - |
| 0040 |  | Fine creamer beaters | - |
