Model
Bosch MUM600146/01
Parts Sections (2)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
MUM600146/01
2 diagrams28 parts
Parts Sections (2)
Diagram

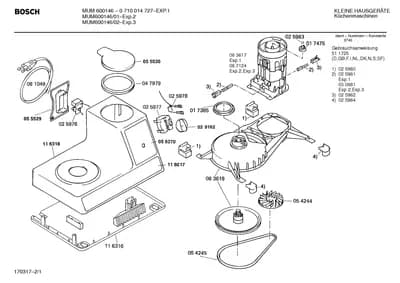

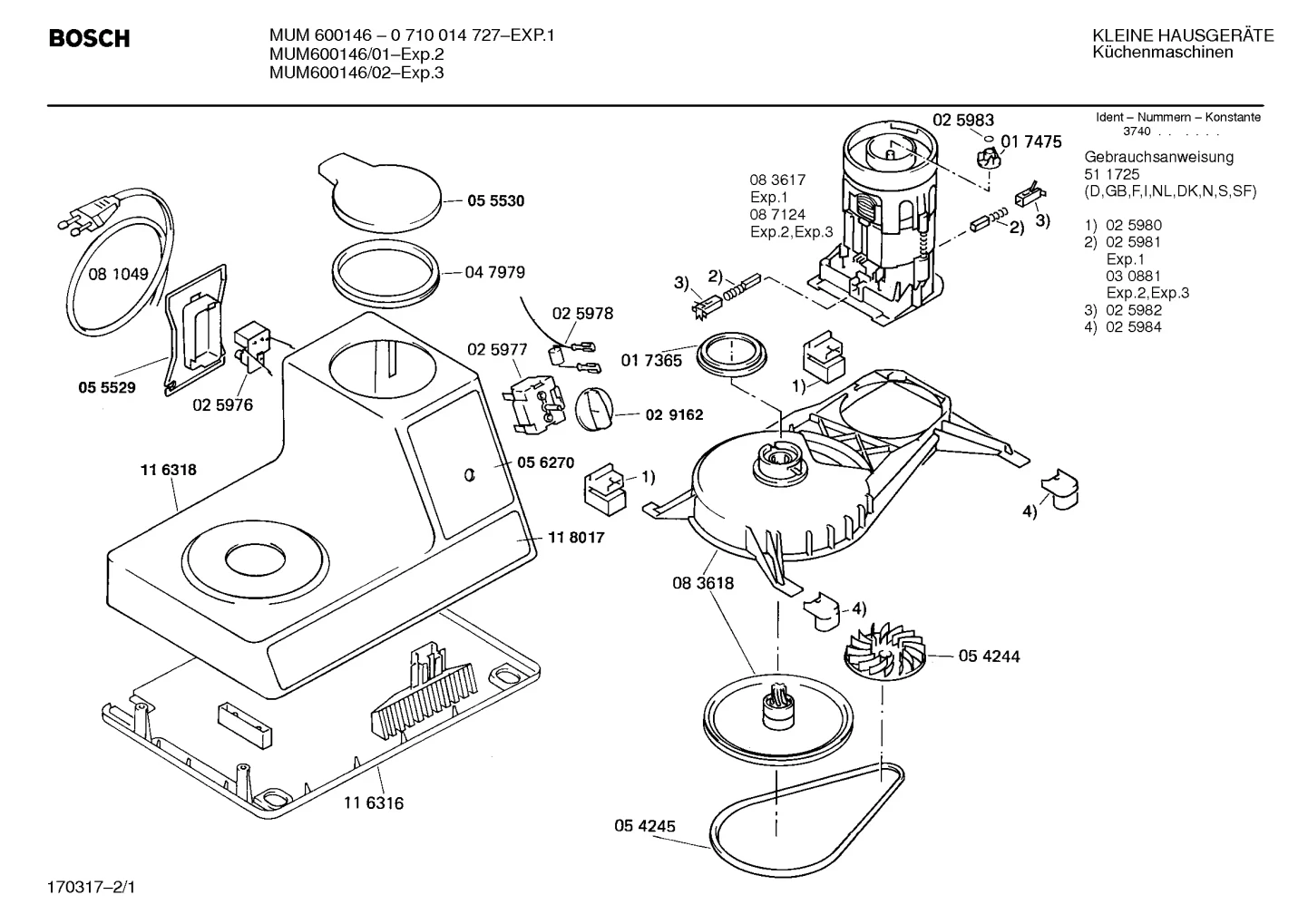

Lids & Covers (0002-0041)
Parts in Lids & Covers (0002-0041)
30 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0002 |  | Drive coupling | - |
| 0003 |  | 00025976NLA PC board | Discontinued |
| 0004 | | Switch | - |
| 0007 |  | Carbon-brush | $32.57 PartSelect |
| 0008 | | 00025982NLA Carbon-brush | Discontinued |
| 0009 | | 00025983NLA Cover | Discontinued |
| 0010 |  | Foot | $17.91 PartSelect |
| 0011 | | 00029162NLA Key | Discontinued |
| 0012 |  | Sealing | - |
| 0013 |  | Impeller jug | - |
| 0014 |  | Belt-drive | $29.70 ApplianceParts Pro |
| 0015 | | 00055529NLA Plate | Discontinued |
| 0020 |  | Drive | - |
| 0021 | | Case-bottom | - |
| 0022 | | 00116318NLA Housing | Discontinued |
| 0023 | | 00118017NLA Sign | Discontinued |
| 0025 |  | Pin | - |
| 0026 |  | Screw | - |
| 0027 | | Screw | - |
| 0030 |  | Gear / spur gear | $22.23 ApplianceParts Pro |
| 0031 | | 00046732NLA Bushing | Discontinued |
| 0032 |  | Drive Coupling | - |
| 0033 |  | Deflector | - |
| 0034 |  | Fine creamer beaters | - |
| 0035 |  | Bowl Lid | $18.95 ApplianceParts Pro |
| 0037 |  | Bowl | $41.44 Part Advantage |
| 0038 |  | Lid | $20.93 Part Advantage |
| 0039 | | Axis | $37.42 ApplianceParts Pro |
| 0040 | | Lid | $20.93 Part Advantage |
| 0041 |  | Drive shaft | $76.30 ApplianceParts Pro |
