Model
Bosch MUM600246/01
Parts Sections (2)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
MUM600246/01
2 diagrams23 parts
Parts Sections (2)
Diagram

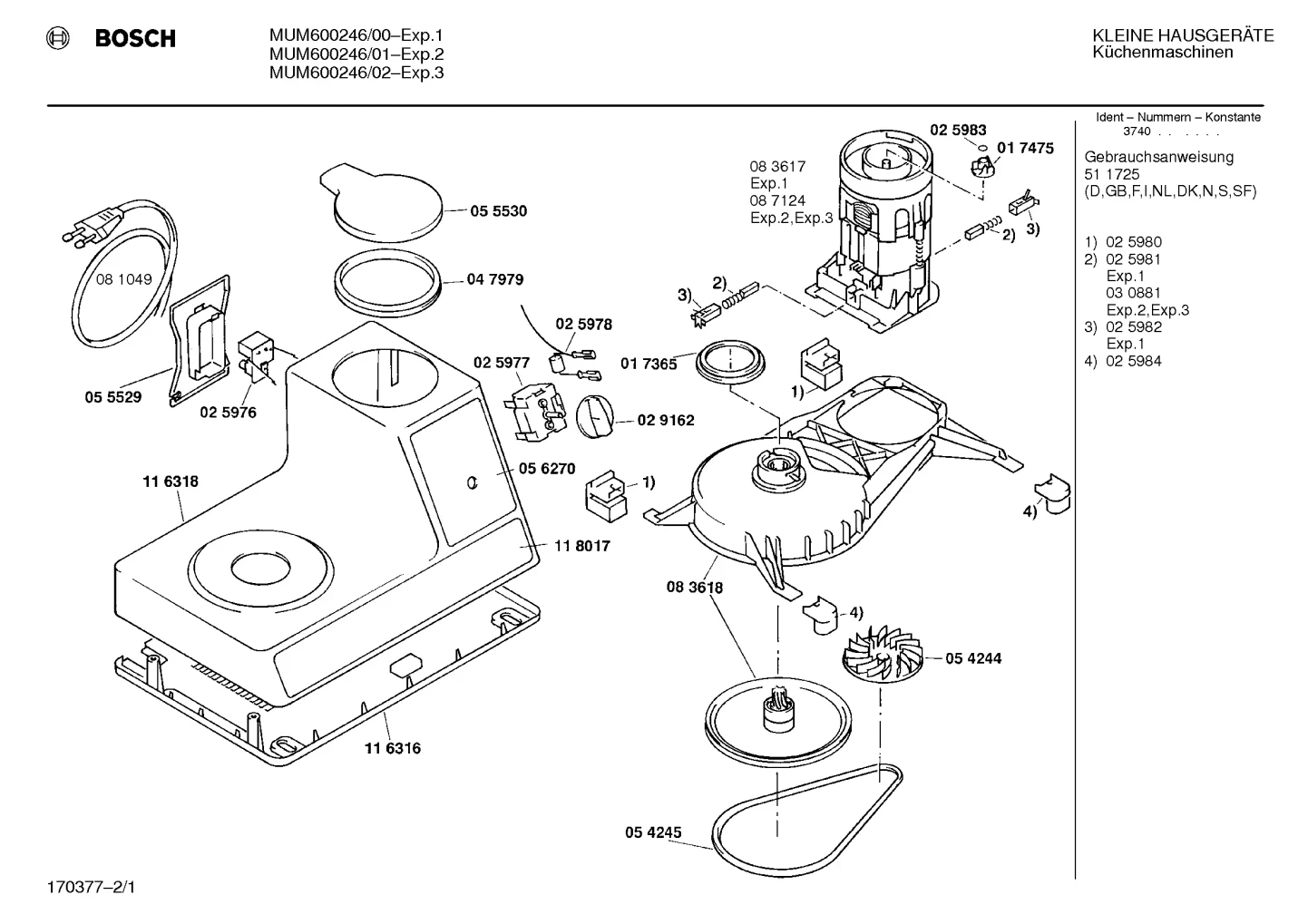

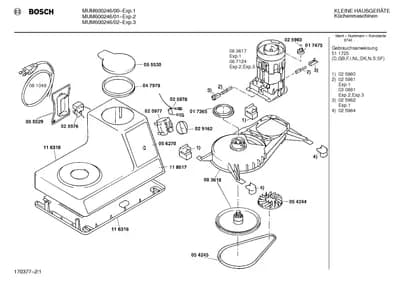

Lids & Covers (0002-0034)
Parts in Lids & Covers (0002-0034)
23 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0002 |  | Drive coupling | - |
| 0003 |  | 00025976NLA PC board | Discontinued |
| 0004 | | Switch | - |
| 0007 |  | Carbon-brush | $26.65 ApplianceParts Pro |
| 0009 | | 00025983NLA Cover | Discontinued |
| 0010 |  | Foot | $17.91 PartSelect |
| 0011 | | 00029162NLA Key | Discontinued |
| 0012 |  | Sealing | - |
| 0013 |  | Impeller jug | - |
| 0014 |  | Belt-drive | $29.70 ApplianceParts Pro |
| 0015 | | 00055529NLA Plate | Discontinued |
| 0020 |  | Drive | - |
| 0021 | | Case-bottom | - |
| 0022 | | 00116318NLA Housing | Discontinued |
| 0023 | | 00118017NLA Sign | Discontinued |
| 0026 |  | Drive coupling | - |
| 0027 |  | Bushing | - |
| 0028 |  | Nut | $19.54 ApplianceParts Pro |
| 0029 |  | Sealing | $15.08 ApplianceParts Pro |
| 0030 |  | Bearing | - |
| 0031 |  | Bowl Lid | $18.95 ApplianceParts Pro |
| 0032 |  | Bowl | - |
| 0034 |  | Kneading Hook | - |
