Model
Bosch MUM6042/00
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
MUM6042/00
3 diagrams42 parts
Parts Sections (3)
Diagram

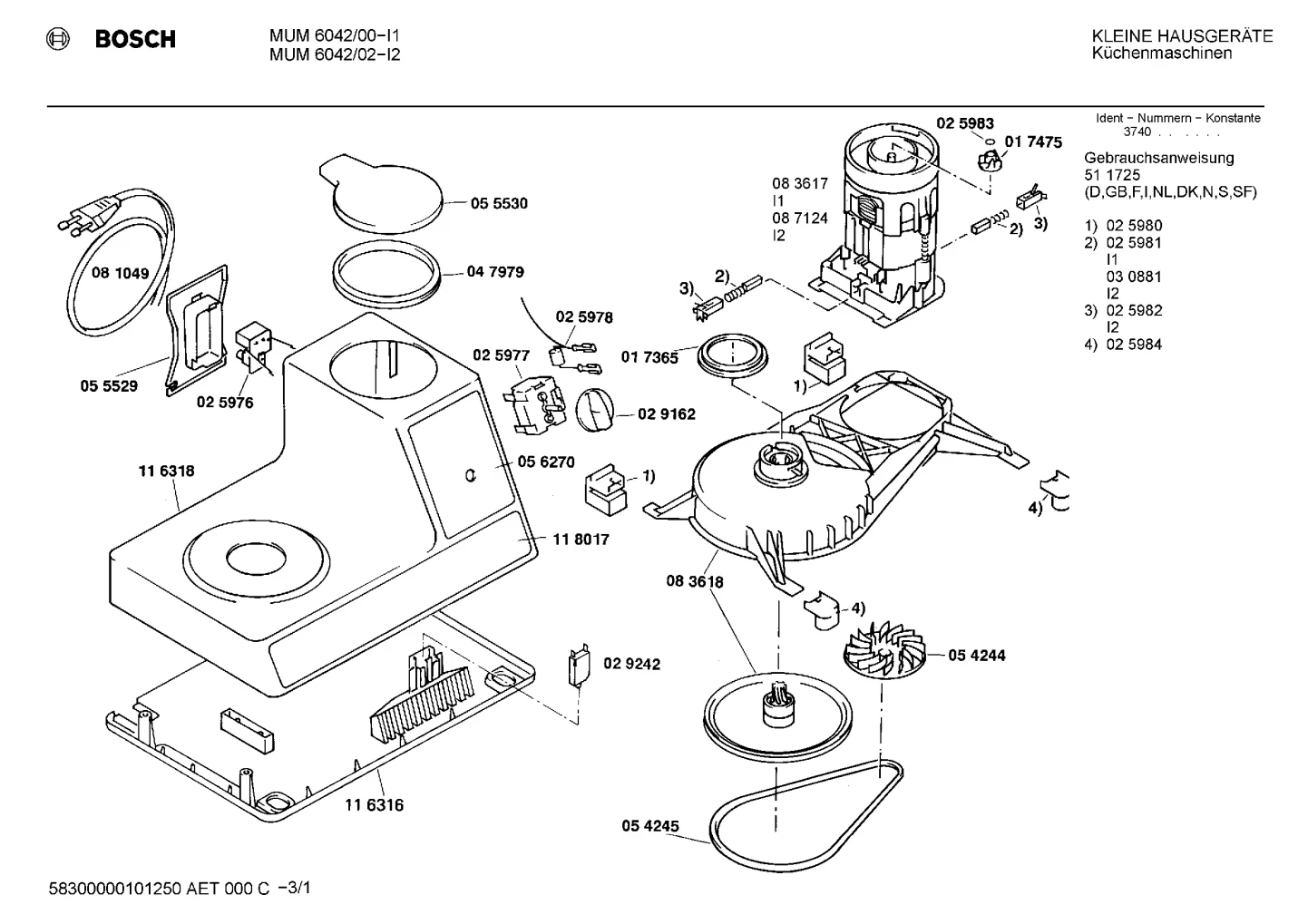

Lids & Covers, Bearings (0002-0055)
Parts in Lids & Covers, Bearings (0002-0055)
43 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0002 |  | Drive coupling | - |
| 0003 |  | 00025976NLA PC board | Discontinued |
| 0004 | | Switch | - |
| 0007 |  | Carbon-brush | - |
| 0008 | | 00025982NLA Carbon-brush | Discontinued |
| 0009 | | 00025983NLA Cover | Discontinued |
| 0010 |  | Foot | $17.91 PartSelect |
| 0012 |  | Sealing | - |
| 0013 |  | Impeller jug | - |
| 0014 |  | Belt-drive | $29.70 ApplianceParts Pro |
| 0015 | | 00055529NLA Plate | Discontinued |
| 0020 |  | Drive | - |
| 0021 | | Case-bottom | - |
| 0022 | | 00116318NLA Housing | Discontinued |
| 0023 | | 00118017NLA Sign | Discontinued |
| 0026 |  | Drive coupling | - |
| 0027 |  | Bushing | - |
| 0028 |  | Nut | $19.54 ApplianceParts Pro |
| 0029 |  | Coupling | $22.96 ApplianceParts Pro |
| 0030 |  | Toothed rim | - |
| 0031 |  | Disc | - |
| 0032 |  | Retaining washer | - |
| 0033 |  | Sealing | $15.08 ApplianceParts Pro |
| 0034 |  | Bearing | - |
| 0035 |  | Beater | - |
| 0036 |  | Axis | - |
| 0037 |  | Mixing Bowl | $41.90 ApplianceParts Pro |
| 0038 |  | Bowl Lid | $18.95 ApplianceParts Pro |
| 0039 | | Mixing Bowl | $41.90 ApplianceParts Pro |
| 0040 |  | Lid | $20.93 Part Advantage |
| 0041 |  | Kneading Hook | - |
| 0043 | | Spring | - |
| 0044 | | 00025986NLA Tripping device | Discontinued |
| 0045 | | 00025987NLA Disc | Discontinued |
| 0046 |  | Drive coupling | - |
| 0047 |  | Funnel | $12.22 RepairClinic |
| 0048 |  | Sealing | $12.56 Part Advantage |
| 0049 |  | Knife | - |
| 0050 |  | Mixing beaker | - |
| 0051 |  | Blender Lid | - |
| 0052 |  | Drive shaft | $76.30 ApplianceParts Pro |
| 0054 |  | Bearing | - |
| 0055 | | Blender attachment | - |
