Model
Bosch MUM6412/02
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
MUM6412/02
3 diagrams42 parts
Parts Sections (3)
Diagram

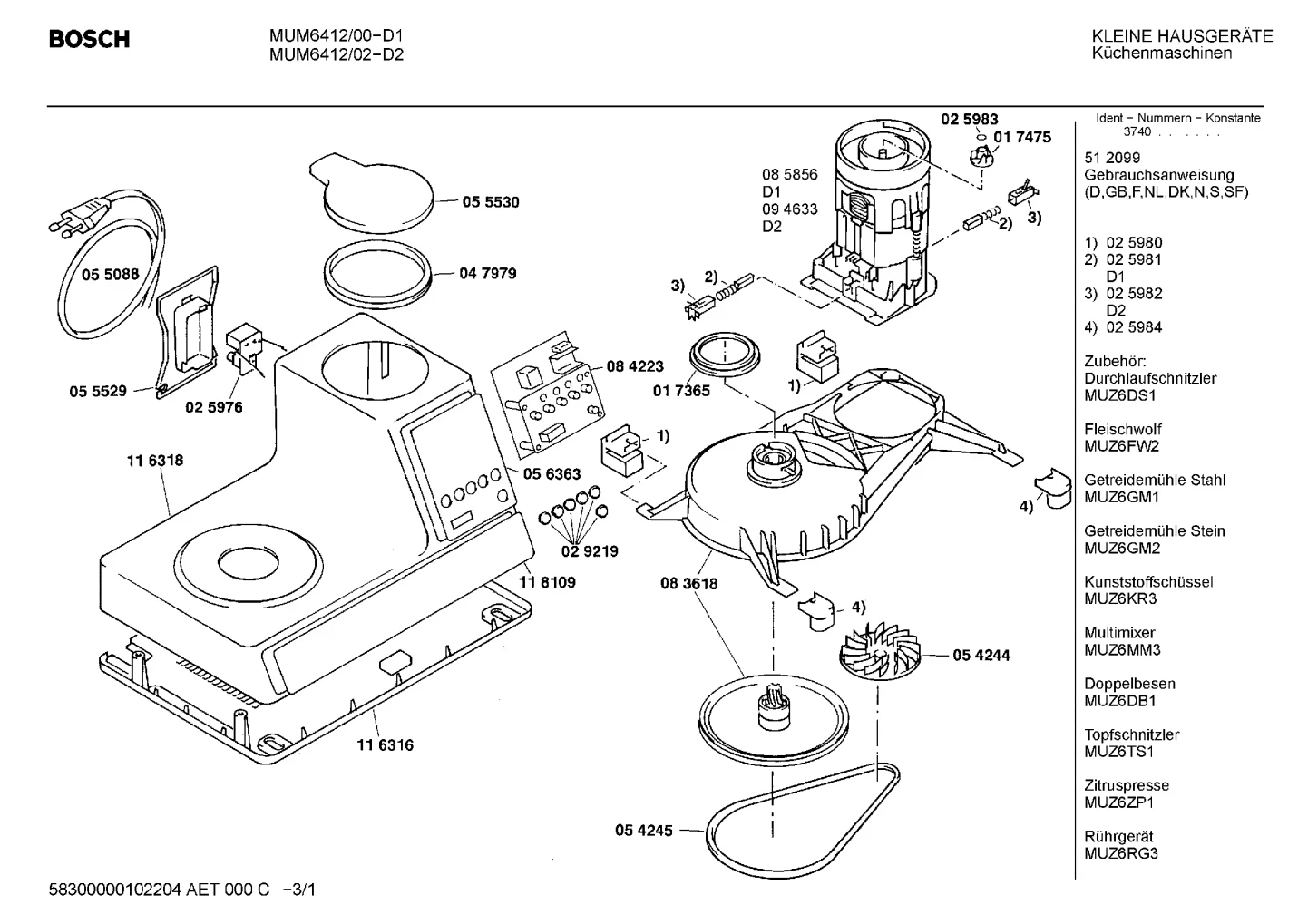

Lids & Covers, Bearings (0001-0052)
Parts in Lids & Covers, Bearings (0001-0052)
43 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0001 |  | Drive coupling | - |
| 0002 |  | 00025976NLA PC board | Discontinued |
| 0006 | | 00025983NLA Cover | Discontinued |
| 0007 |  | Foot | $17.91 PartSelect |
| 0008 | | 00029219NLA Push button cap | Discontinued |
| 0009 |  | Sealing | - |
| 0010 |  | Sealing | $20.57 ApplianceParts Pro |
| 0011 |  | Impeller jug | - |
| 0012 |  | Belt-drive | $29.70 ApplianceParts Pro |
| 0014 | | 00055529NLA Plate | Discontinued |
| 0016 | | 00056363NLA Panel | Discontinued |
| 0017 |  | Drive | - |
| 0020 | | Case-bottom | - |
| 0021 | | 00116318NLA Housing | Discontinued |
| 0022 | | Sign | - |
| 0024 |  | Pin | - |
| 0025 |  | Screw | - |
| 0026 | | Screw | - |
| 0027 |  | Gear / spur gear | $22.23 ApplianceParts Pro |
| 0028 |  | Disc | - |
| 0029 |  | Retaining washer | - |
| 0030 | | 00046732NLA Bushing | Discontinued |
| 0031 |  | Drive Coupling | - |
| 0032 |  | Deflector | - |
| 0033 |  | Fine creamer beaters | - |
| 0034 |  | Kneading hook | - |
| 0035 |  | Bowl Lid | $18.95 ApplianceParts Pro |
| 0036 |  | Bowl | $41.44 Part Advantage |
| 0037 |  | Lid | $20.93 Part Advantage |
| 0038 | | Axis | $37.42 ApplianceParts Pro |
| 0040 | | Spring | - |
| 0041 | | 00025986NLA Tripping device | Discontinued |
| 0042 | | 00025987NLA Disc | Discontinued |
| 0043 |  | Drive coupling | - |
| 0044 |  | Funnel | $12.22 RepairClinic |
| 0045 |  | Sealing | $12.56 Part Advantage |
| 0046 |  | Knife | - |
| 0047 |  | Mixing beaker | - |
| 0048 |  | Blender Lid | - |
| 0049 |  | Drive shaft | $76.30 ApplianceParts Pro |
| 0050 |  | Bowl | - |
| 0051 |  | Bearing | - |
| 0052 | | Blender attachment | - |
