Model
Bosch MUM6523/00
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
MUM6523/00
3 diagrams49 parts
Parts Sections (3)
Diagram

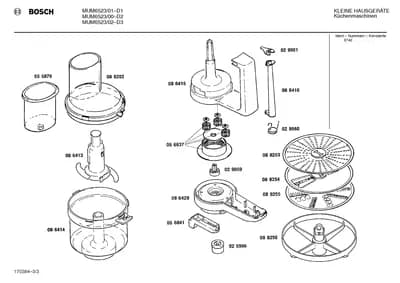

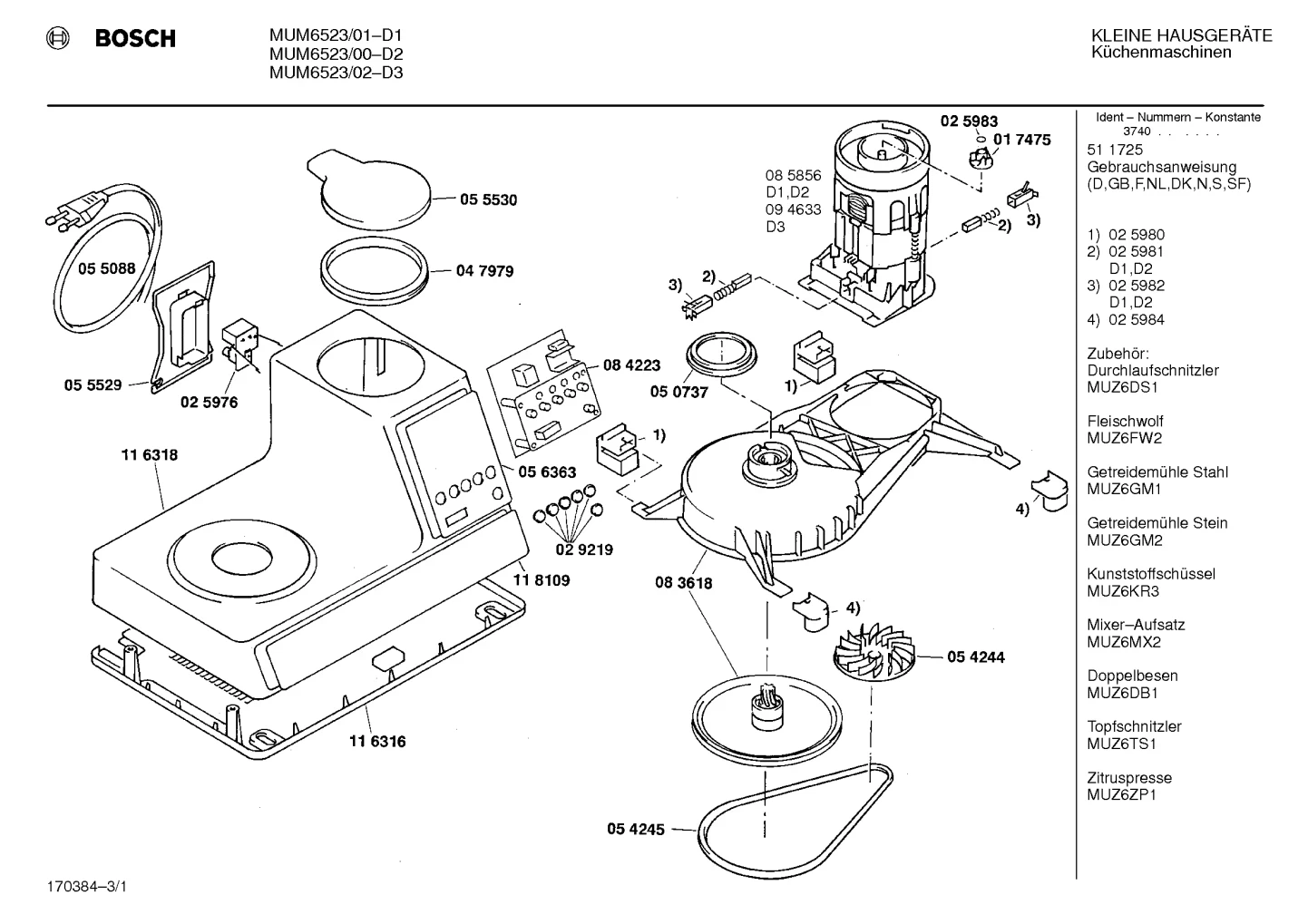

Lids & Covers (0001-0057)
Parts in Lids & Covers (0001-0057)
49 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0001 |  | Drive coupling | - |
| 0002 |  | 00025976NLA PC board | Discontinued |
| 0004 |  | Carbon-brush | - |
| 0005 | | 00025982NLA Carbon-brush | Discontinued |
| 0006 | | 00025983NLA Cover | Discontinued |
| 0007 |  | Foot | $17.91 PartSelect |
| 0008 | | 00029219NLA Push button cap | Discontinued |
| 0009 |  | Sealing | - |
| 0010 |  | Sealing | $20.57 ApplianceParts Pro |
| 0011 |  | Impeller jug | - |
| 0012 |  | Belt-drive | $29.70 ApplianceParts Pro |
| 0014 | | 00055529NLA Plate | Discontinued |
| 0016 | | 00056363NLA Panel | Discontinued |
| 0017 |  | Drive | - |
| 0020 | | Case-bottom | - |
| 0021 | | 00116318NLA Housing | Discontinued |
| 0022 | | Sign | - |
| 0025 |  | Drive coupling | - |
| 0026 |  | Bushing | - |
| 0027 |  | Nut | $19.54 ApplianceParts Pro |
| 0028 |  | Coupling | $22.96 ApplianceParts Pro |
| 0029 |  | Toothed rim | - |
| 0030 |  | Disc | - |
| 0031 |  | Retaining washer | - |
| 0032 |  | Sealing | $15.08 ApplianceParts Pro |
| 0033 |  | Bearing | - |
| 0034 |  | Beater | - |
| 0035 |  | Axis | - |
| 0036 |  | Bowl | - |
| 0037 |  | Bowl Lid | $18.95 ApplianceParts Pro |
| 0038 |  | Mixing Bowl | $41.90 ApplianceParts Pro |
| 0040 |  | Kneading Hook | - |
| 0041 |  | Drive coupling | - |
| 0042 |  | Gear | - |
| 0043 | | 00029960NLA Spring | Discontinued |
| 0044 | | 00029961NLA Lever | Discontinued |
| 0045 |  | Plunger | - |
| 0046 | | 00056837NLA Toothed rim | Discontinued |
| 0047 | | Slide | - |
| 0048 |  | Knife | - |
| 0049 |  | Bowl | $29.23 ApplianceParts Pro |
| 0050 | | Case-upper part | - |
| 0051 | | Spacer | - |
| 0052 | | Housing part | - |
| 0053 |  | Case-upper part | - |
| 0054 |  | Grater | - |
| 0055 |  | Cutting disc accessory | - |
| 0056 |  | Shredder | - |
| 0057 |  | Disc Holder / Driver | - |
