Model
Bosch MUM6681/03
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
MUM6681/03
3 diagrams52 parts
Parts Sections (3)
Diagram

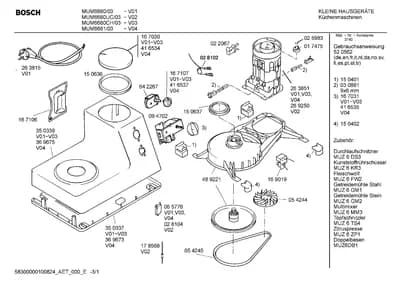

Lids & Covers, Bearings (0003-0065)
Parts in Lids & Covers, Bearings (0003-0065)
52 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0003 |  | Drive | - |
| 0004 |  | Motor | - |
| 0006 |  | Sealing | - |
| 0007 | | 00167106NLA Lid | Discontinued |
| 0011 |  | Sealing | $20.57 ApplianceParts Pro |
| 0012 | | Foot | - |
| 0013 |  | Foot | $17.91 PartSelect |
| 0014 | | Motor-protection | - |
| 0015 |  | Belt-drive | $29.70 ApplianceParts Pro |
| 0016 |  | Impeller jug | - |
| 0017 | | Cable harness | - |
| 0018 |  | Carbon-brush | $26.65 ApplianceParts Pro |
| 0019 |  | Drive coupling | - |
| 0020 | | 00025983NLA Cover | Discontinued |
| 0021 | | Switch | - |
| 0023 | | Switch-element | - |
| 0024 |  | Bowl Lid | $18.95 ApplianceParts Pro |
| 0026 |  | Sealing | $12.56 Part Advantage |
| 0027 |  | Kneading Hook | - |
| 0028 |  | Bushing | - |
| 0029 |  | Sealing | $15.08 ApplianceParts Pro |
| 0030 |  | Bearing | - |
| 0031 |  | Bowl | - |
| 0032 |  | Nut | $19.54 ApplianceParts Pro |
| 0033 |  | Sealing | $15.02 Parts Dr |
| 0034 |  | Drive coupling | - |
| 0035 | | Spring | - |
| 0036 | | 00025986NLA Tripping device | Discontinued |
| 0037 |  | Knife | - |
| 0038 | | 00025987NLA Disc | Discontinued |
| 0039 |  | Drive coupling | - |
| 0040 |  | Funnel | $12.22 RepairClinic |
| 0041 |  | Lid | - |
| 0042 |  | Mixing beaker | - |
| 0043 |  | Mixing Bowl | $41.90 ApplianceParts Pro |
| 0044 |  | Axis | - |
| 0045 |  | Retaining washer | - |
| 0046 |  | Disc | - |
| 0047 |  | Toothed rim | - |
| 0048 |  | Coupling | $22.96 ApplianceParts Pro |
| 0049 | | Retaining washer | - |
| 0050 | | 00520562NLA Instruction manual | Discontinued |
| 0051 | | Instruction manual | - |
| 0052 |  | Beater | - |
| 0053 |  | Beater | - |
| 0054 |  | Gear | - |
| 0055 |  | Beater | - |
| 0057 | | 00028102NLA Diode | Discontinued |
| 0058 | | Case-upper part | - |
| 0063 |  | Lid | $20.93 Part Advantage |
| 0064 |  | Bearing | - |
| 0065 | | Blender attachment | - |
