Model
Bosch MUM6N16R1/03
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
MUM6N16R1/03
3 diagrams41 parts
Parts Sections (3)
Diagram

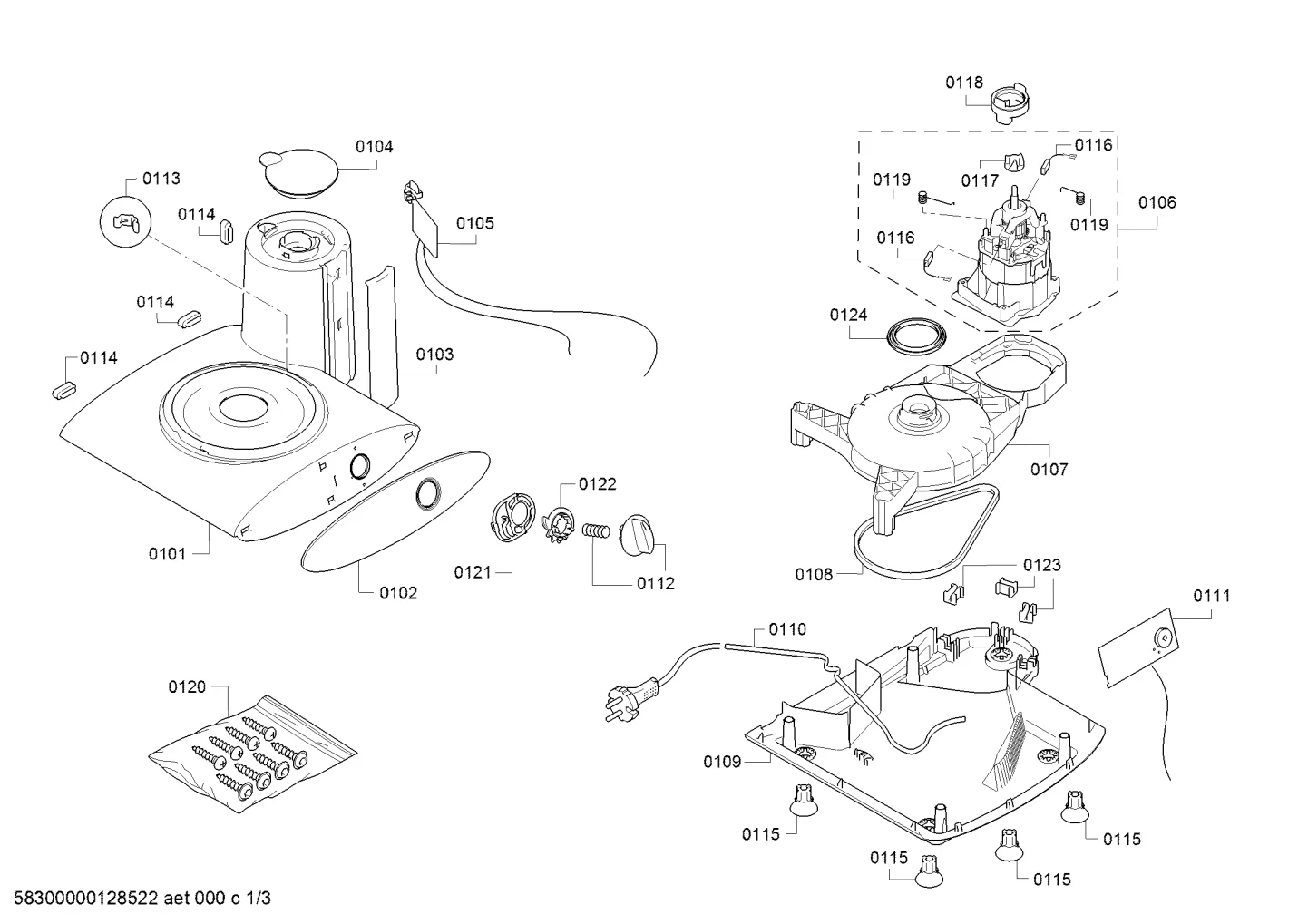

Door & Housing, Handles & Knobs (0102-0124)
Parts in Door & Housing, Handles & Knobs (0102-0124)
16 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0102 |  | Panel | - |
| 0107 |  | Drive | $213.66 ApplianceParts Pro |
| 0108 |  | Belt-drive | $29.70 ApplianceParts Pro |
| 0112 |  | Knob | - |
| 0113 |  | Insert | - |
| 0114 |  | Rubber foot | - |
| 0115 |  | Foot | $15.36 PartSelect |
| 0116 | | Carbon-brush | - |
| 0117 |  | Drive coupling | - |
| 0118 |  | Ring | - |
| 0119 | | Spring | - |
| 0120 |  | Screw-set | - |
| 0121 |  | Support | - |
| 0122 |  | Swivel joint | - |
| 0123 | | Damper | - |
| 0124 |  | Sealing | $20.57 ApplianceParts Pro |
