Model
Bosch MUZ6DS3(00)
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
MUZ6DS3(00)
1 diagram16 parts
Parts Sections (1)
Diagram

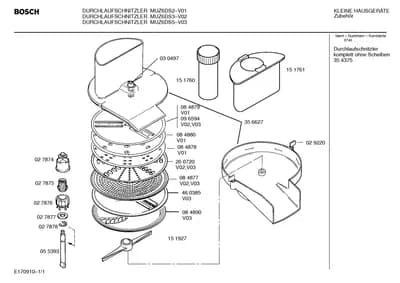

Diagram 1
Parts in Diagram 1
16 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|

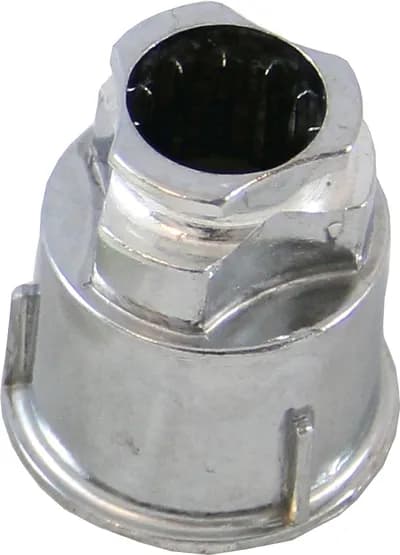

| 0001 |  | Drive coupling | $37.73 ApplianceParts Pro |
| 0002 |  | Coupling | $22.96 ApplianceParts Pro |
| 0003 |  | Toothed rim | - |
| 0004 |  | Disc | - |
| 0005 |  | Retaining washer | - |
| 0006 |  | Axis | - |
| 0007 |  | Lock-mechanical | $9.95 ApplianceParts Pro |
| 0008 |  | Installation set | $22.19 ApplianceParts Pro |
| 0010 |  | Slicer | - |
| 0011 |  | Shredder | - |
| 0014 |  | Plunger | - |
| 0015 |  | Plunger | - |
| 0016 |  | Lever-ejector | - |
| 0017 |  | Housing | - |
| 0018 |  | Housing | - |
| 0019 |  | Slicer | - |
