Model
Bosch NET5466SC/01
Electric Range
Parts Sections (2)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
NET5466SC/01Electric Range
2 diagrams25 parts
Parts Sections (2)
Diagram
hotplates, Mounting & Fixing (0101-0199)
Parts in hotplates, Mounting & Fixing (0101-0199)
26 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | Glass ceramic hob top | - |
| 0102 |  | Sealing strip | $19.48 Parts Dr |
| 0108 |  | Mounting set | - |
| 0110 |  | Case-bottom | - |

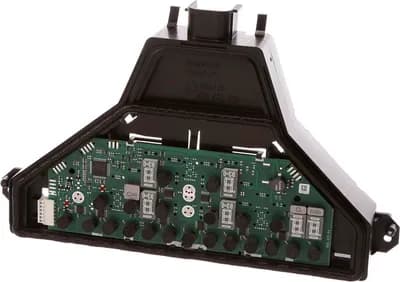

| 0131 |  | Control module | - |
| 0132 |  | Module-relay | - |
| 0135 |  | Housing | - |
| 0136 |  | Cap | - |
| 0137 |  | Cable harness | $32.57 PartSelect |

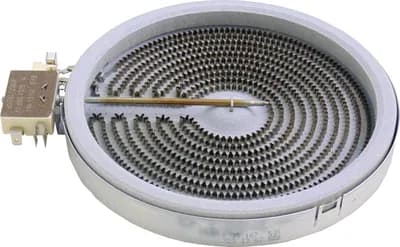

| 0151 |  | Hilight hotplate | $117.78 Parts Dr |
| 0152 |  | Hilight hotplate | - |
| 0153 | | Hilight hotplate | $117.78 Parts Dr |
| 0154 | | Hilight hotplate | $112.09 Parts Dr |
| 0156 |  | Fixture | $17.92 Parts Dr |
| 0160 | | Bowl | - |
| 0161 |  | Retaining washer | $5.75 RepairClinic |
| 0162 |  | Connection | $47.52 Parts Dr |
| 0163 |  | Insert | - |
| 0189 | | Support | - |
| 0190 |  | Identification plate | - |
| 0191 |  | Coding plug | - |
| 0192 | | Cable | - |
| 0193 |  | Cable | - |
| 0196 | | Power cord | - |
| 0197 | | Bracket | $7.68 PartSelect |
| 0199 | | Part not included in this appliance | - |
