Model
Bosch NET8054UC/01
Electric Range
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
NET8054UC/01Electric Range
1 diagram29 parts
Parts Sections (1)
Diagram

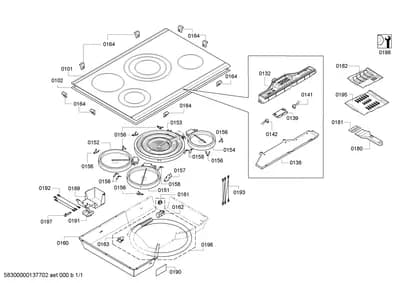

hotplates, Mounting & Fixing (0101-0199)
Parts in hotplates, Mounting & Fixing (0101-0199)
31 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | Glass ceramic hob top | - |
| 0102 |  | Sealing strip | $19.48 Parts Dr |

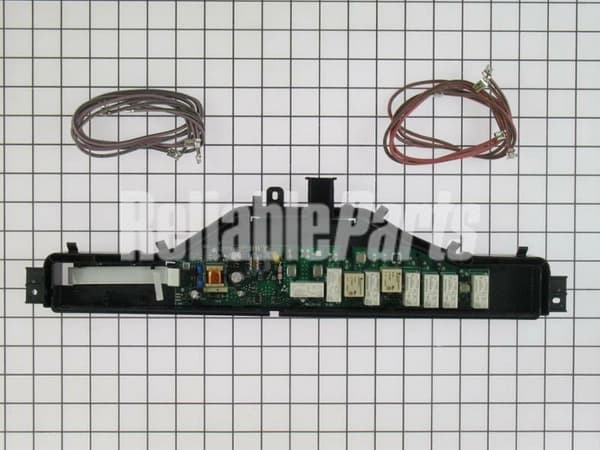

| 0132 |  | Control module | - |
| 0138 | | Cover | - |
| 0139 |  | Control module | - |
| 0141 | | Cable harness | - |
| 0142 | | Cable harness | - |
| 0151 |  | Hilight hotplate | - |
| 0152 | | Hilight hotplate | - |
| 0153 | | Hilight hotplate | $330.00 PartSelect |
| 0154 |  | Hilight hotplate | $117.78 Parts Dr |
| 0156 |  | Fixture | $17.92 Parts Dr |
| 0157 |  | Fixture | - |
| 0158 |  | Spring | - |
| 0160 | | Bowl | - |
| 0161 |  | Retaining washer | $5.75 RepairClinic |
| 0162 |  | Connection | $47.52 Parts Dr |
| 0163 |  | Insert | - |
| 0164 |  | Distance holder | - |
| 0180 | | Part not included in this appliance | - |
| 0181 | | Part not included in this appliance | - |
| 0182 |  | Fixing kit | - |
| 0189 | | Support | - |
| 0190 |  | Identification plate | - |
| 0191 |  | Coding plug | - |
| 0192 | | Cable | - |
| 0193 | | Cable | $56.50 ApplianceParts Pro |
| 0195 |  | Screw-set | - |
| 0196 |  | Power cord | $150.50 ApplianceParts Pro |
| 0197 | | Bracket | $7.68 PartSelect |
| 0199 | | Part not included in this appliance | - |
