Model
Bosch NGM3450UC/01
Gas Cooktop
Parts Sections (2)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
NGM3450UC/01Gas Cooktop
2 diagrams45 parts
Parts Sections (2)
Diagram

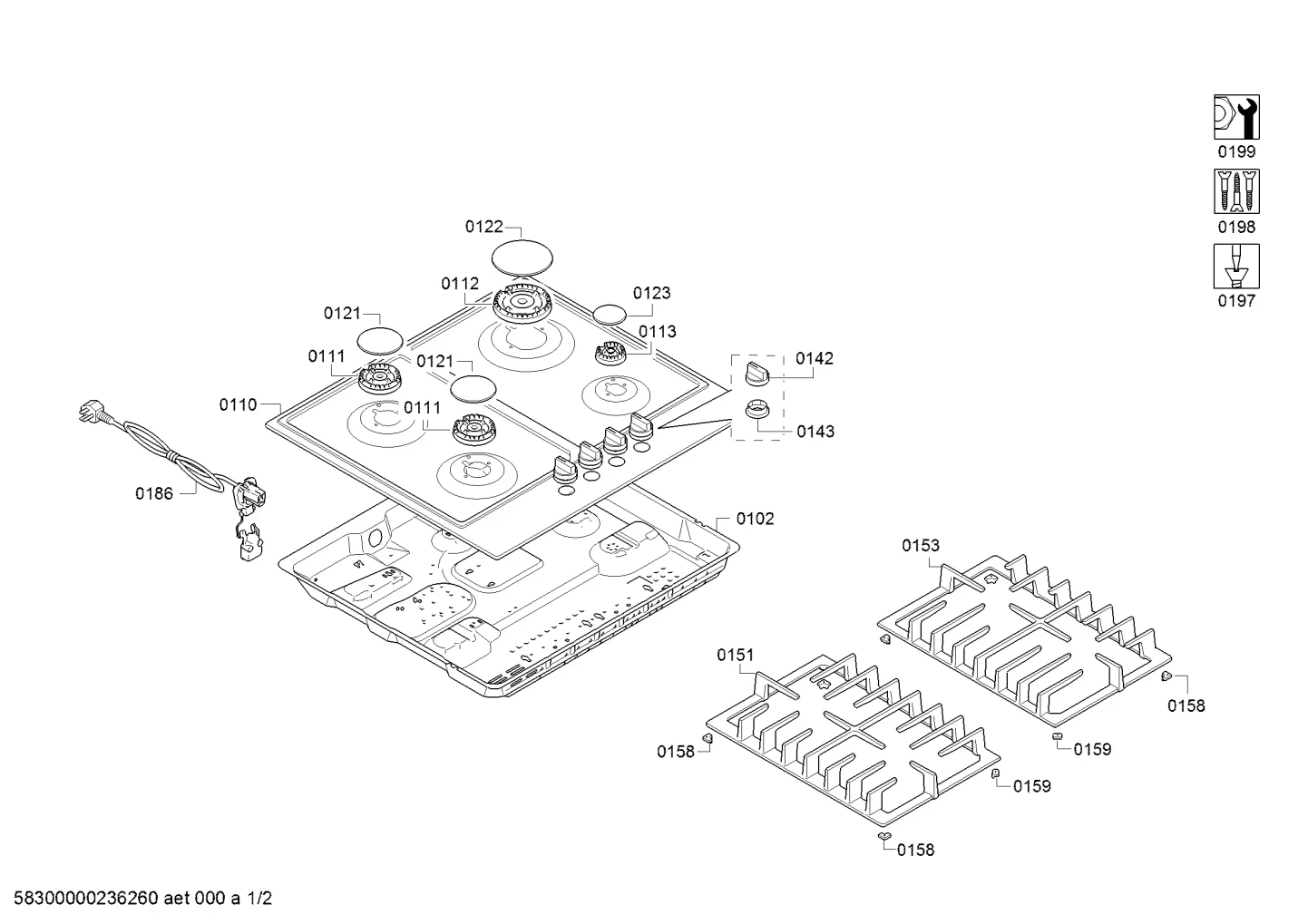

Screws, Mounting & Fixing (0110-0198)
Parts in Screws, Mounting & Fixing (0110-0198)
22 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0110 | – | 20005609 Hob top | - |
| 0111 |  | Diffuser | $27.00 ApplianceParts Pro |
| 0112 |  | Diffuser | - |
| 0113 |  | Diffuser | - |
| 0123 |  | Burner cap | $8.24 |
| 0142 |  | Knob-cooking area | - |
| 0143 |  | Sealing | - |
| 0151 | – | 11057843 Grid | - |
| 0153 | – | 11057844 Grid | - |
| 0158 |  | Rubber foot | - |
| 0159 |  | Rubber foot | - |
| 0186 |  | Power cord | - |
| 0197 |  | Mounting set | - |
| 0197 |  | Mounting set | - |
| 0197 | | 00611084NLA Installation set | Discontinued |
| 0198 |  | Screw | - |
| 0198 |  | Screw | - |
| 0198 |  | Screw-set | - |
| 0198 | | Screw | $4.18 Parts Dr |
| 0198 |  | Screw | - |
| 0198 |  | Screw | - |
| 0198 |  | Screw-set | - |
